Atlas BP12000X 12,000 lb Baseplate 2 Post Lift
✅ Authorized Online Dealer
🚚 Free Shipping + No Sales Tax (exclusions may apply)
💲 We Beat The Lowest Price
📦 Fast 4-7 Day Delivery
🏭 Manufacturer Warranty Included
❓ Questions? Call Our Experts: +1 (833) 696-8258
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
Description

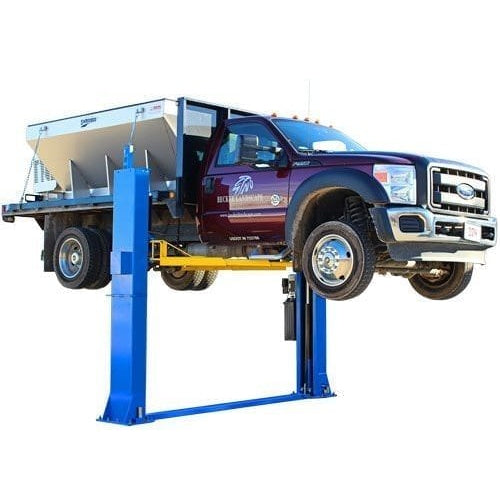

The Atlas® BP12000X isn’t just a 2-post lift—it’s a heavy-duty beast built to raise the bar for commercial garages handling large trucks and vans. With a 12,000 lb. lifting capacity, extra-thick steel columns, and a space-saving baseplate design, this lift is ideal for shops with low ceilings but high expectations. The adjustable width and open-top structure mean even wider vehicles can drive through without a hitch. It’s muscle and brains in one powerful package.
Features
-
12,000 lb. Capacity: Designed to handle heavy-duty trucks, vans, and commercial vehicles.
-
Commercial Grade Construction: Thick 6mm steel columns and reinforced components for rugged shop use.
-
Baseplate, Open-Top Style: Great for low-ceiling shops—get maximum height without overhead obstructions.
-

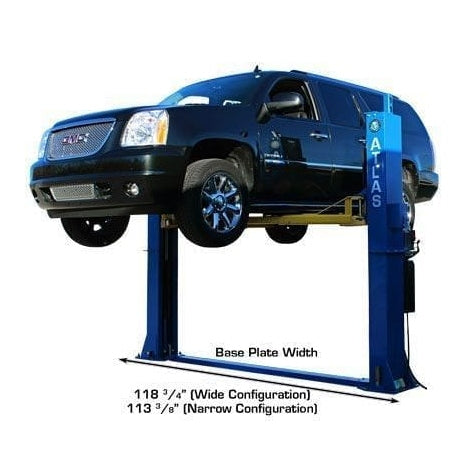

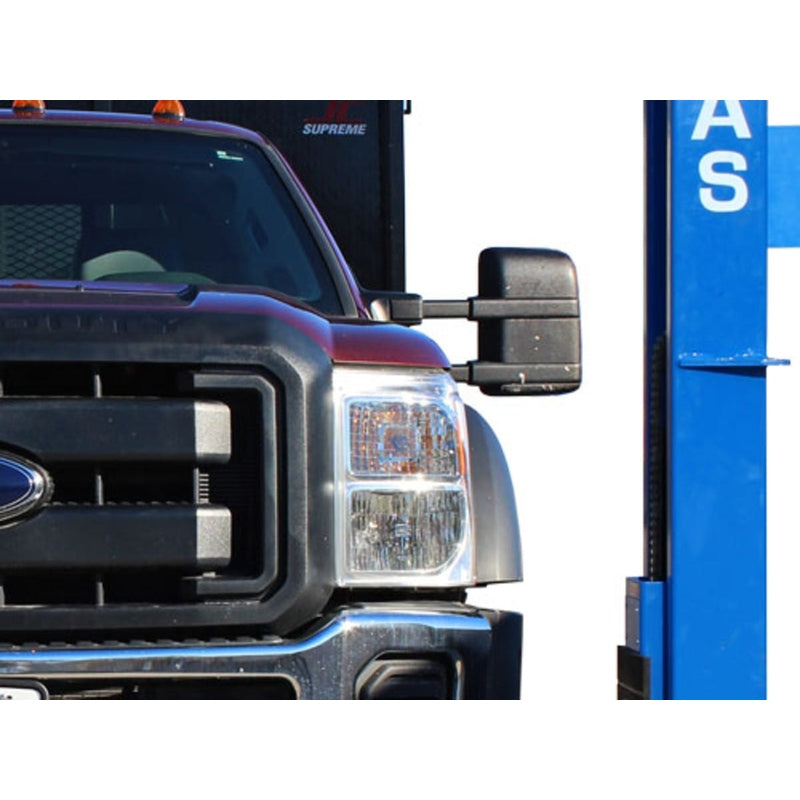

Adjustable Width: Choose from two install widths to accommodate wider vehicles and improve drive-through clearance.
-

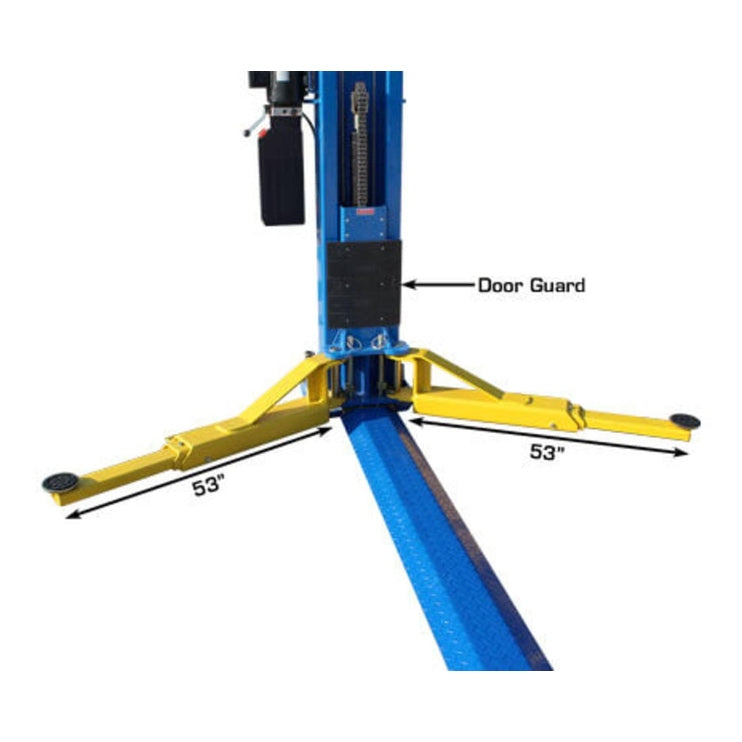

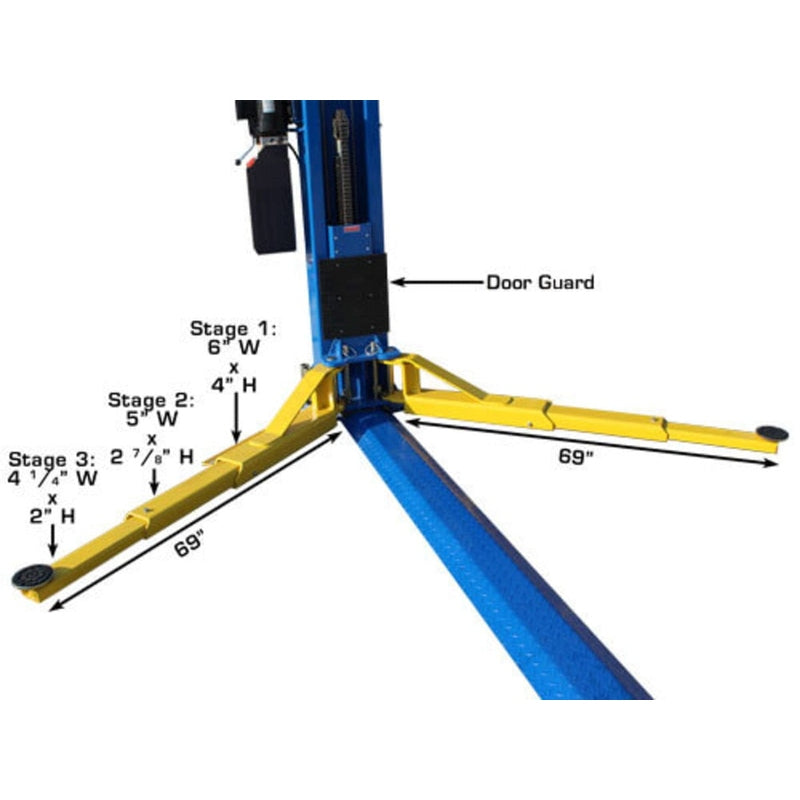

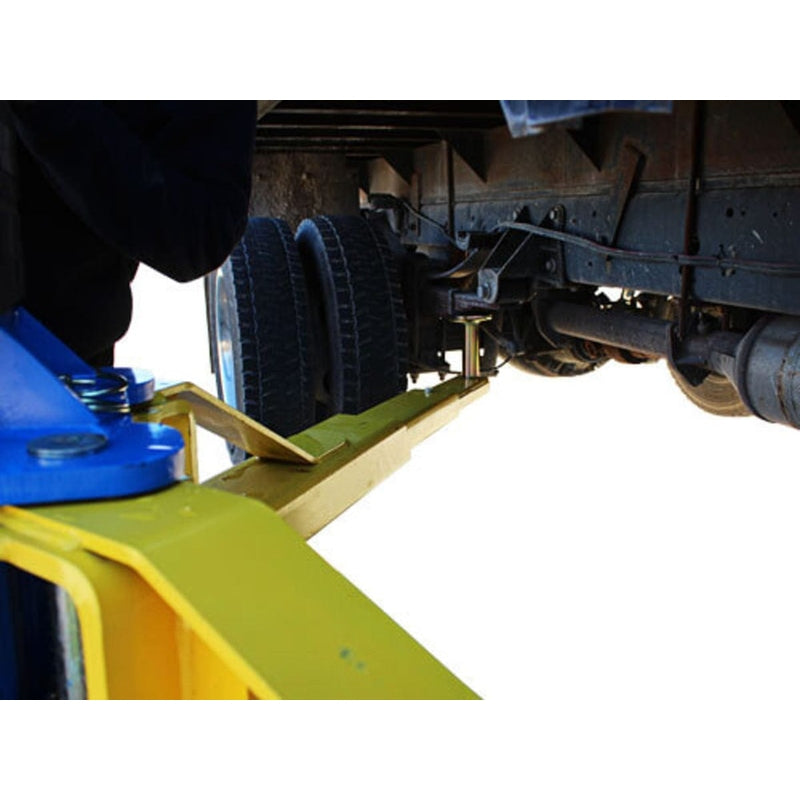

3-Stage Symmetric Arms: Better reach and balance for lifting a range of vehicle sizes.
-

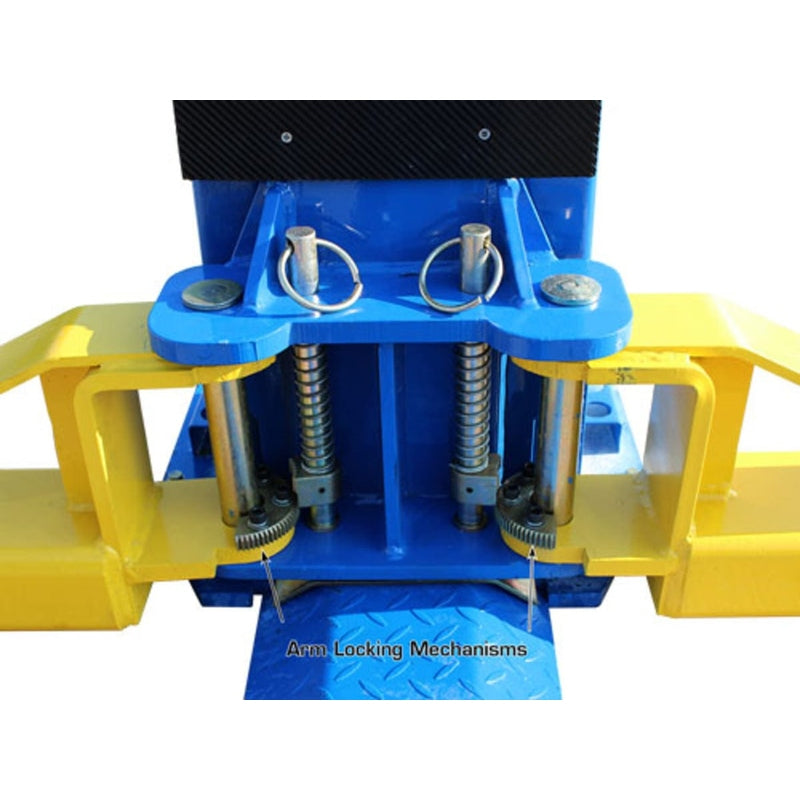

Automatic Arm Restraints: Keeps arms securely in place during lifting.
-

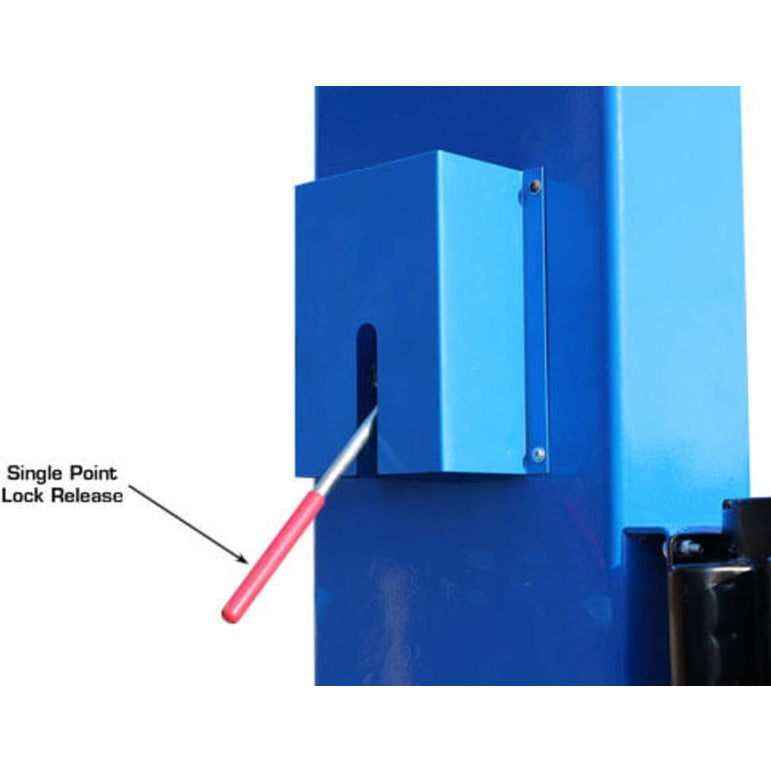

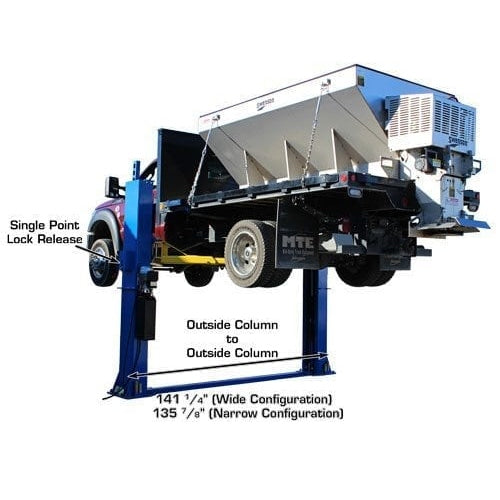

Single-Point Lock Release: Unlock both columns with one pull—convenient and efficient.
-

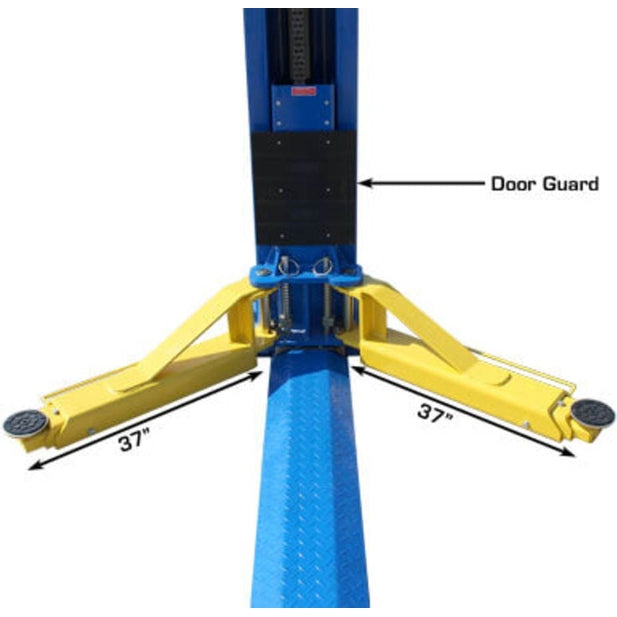

Rubber Guards on Carriages: Protects doors and panels from dings during use.
-

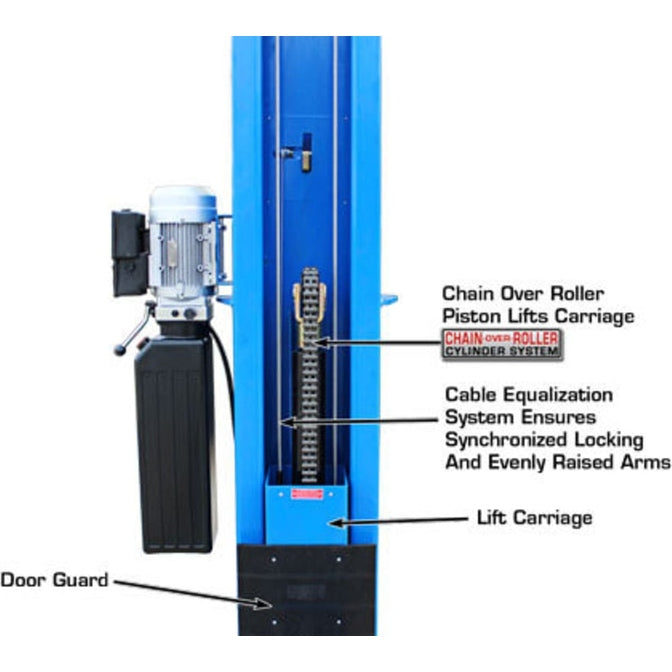

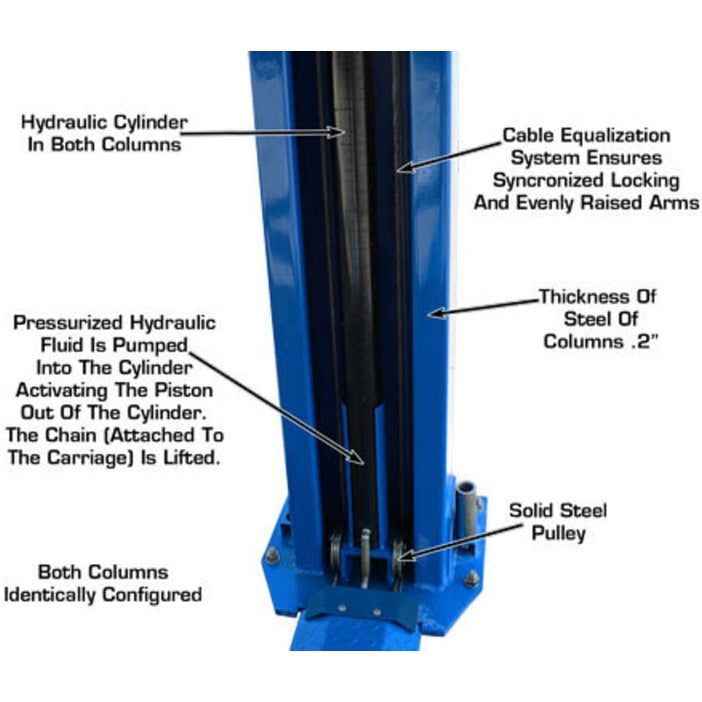

Dual Hydraulic Chain-Over Cylinders: Smooth and synchronized lifting with extra reliability.
-
Powder-Coated Finish: Durable, rust-resistant, and ready for the long haul.
-

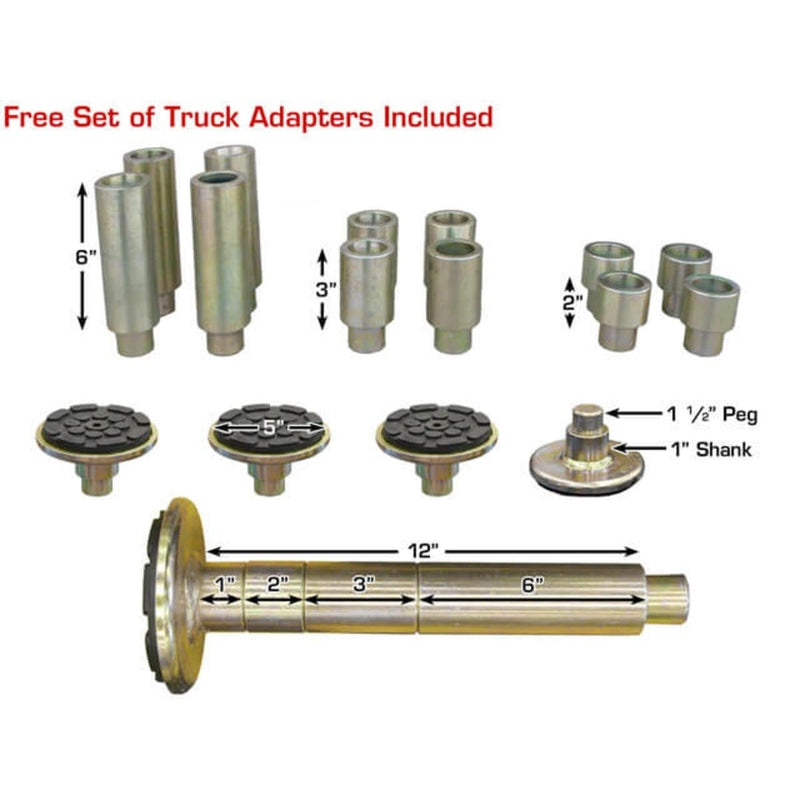

12-Piece Truck Adapter Set Included: Lift higher and safer—ideal for frame-lifted vehicles.
-

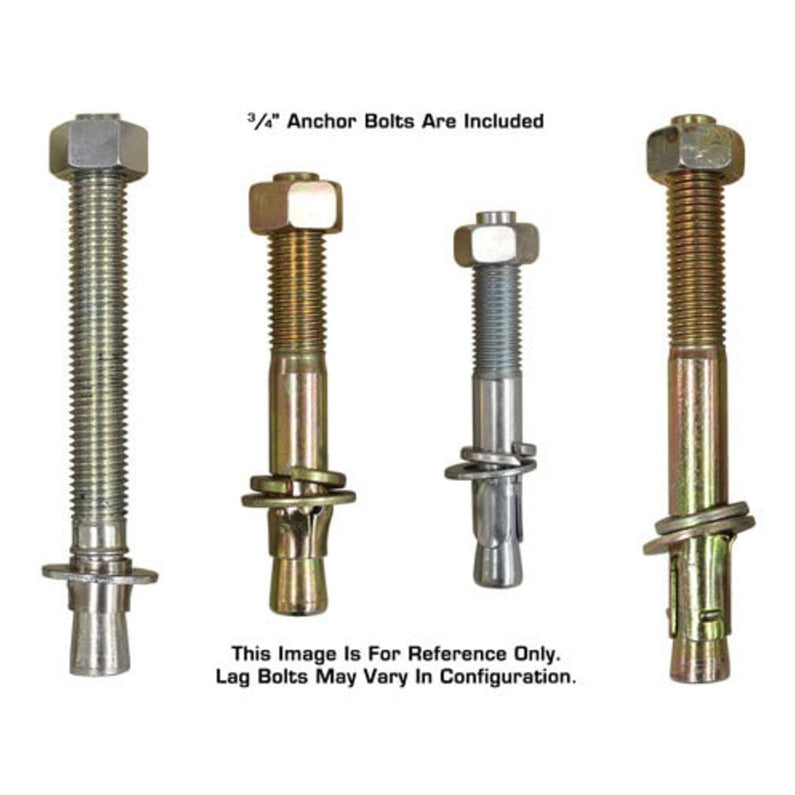

Mounting Hardware Included
-
Warranty: 5-Year Structural / 2-Year Hydraulic (Parts Only)
Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 12,000 lbs. |

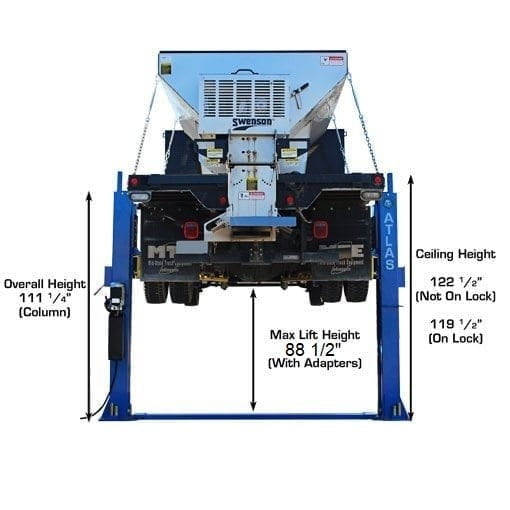

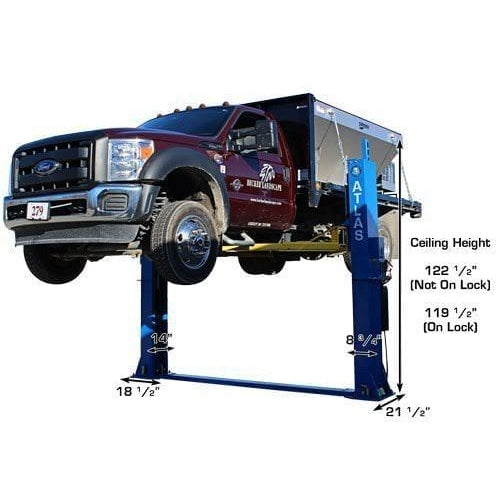

| Overall Height | 122 1/2″ (10′ 2 1/2″) |

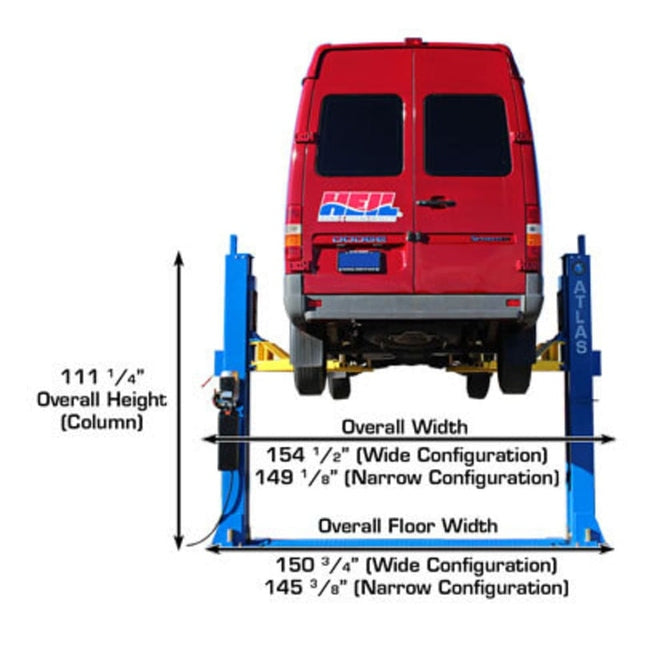

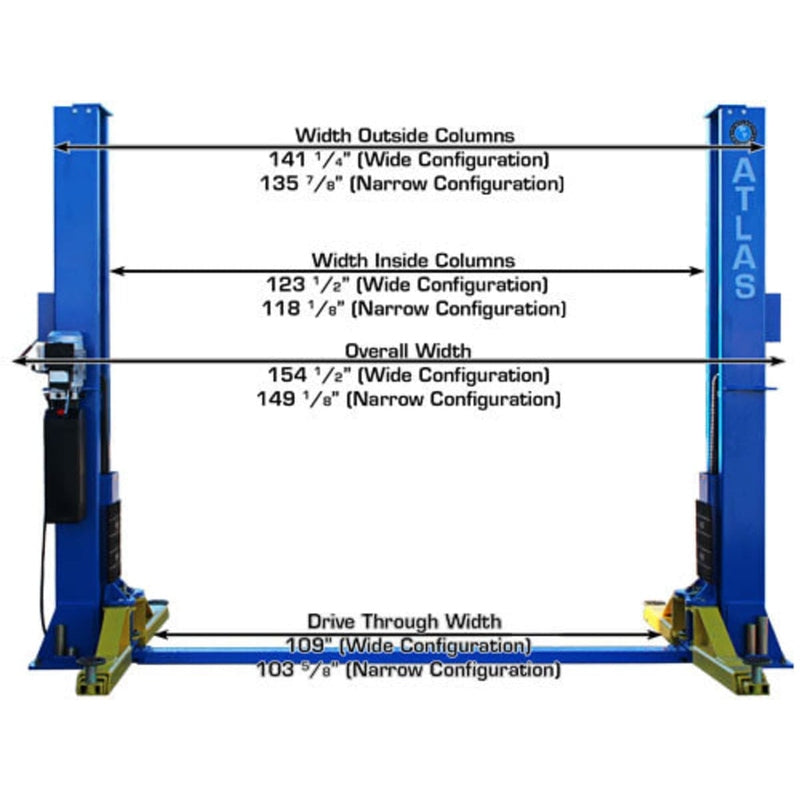

| Overall Width | 149 3/8" or 154 1/2" |
| Outside Column to Column | 135 7/8" or 141 1/4" |

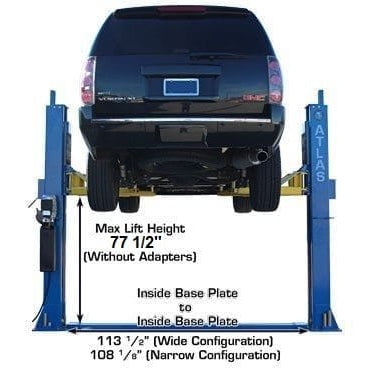

| Maximum Lift Height (No Adapters) | 77 1/2" |

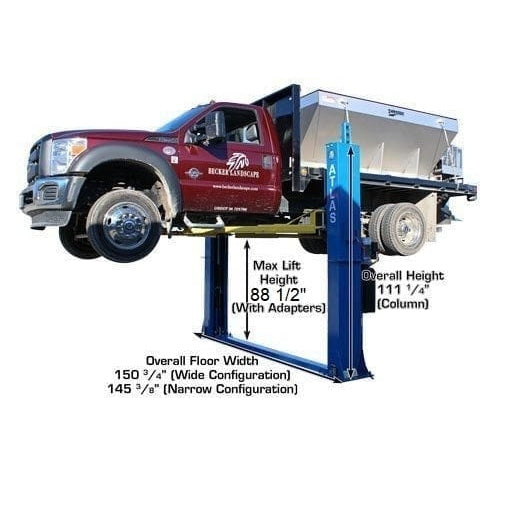

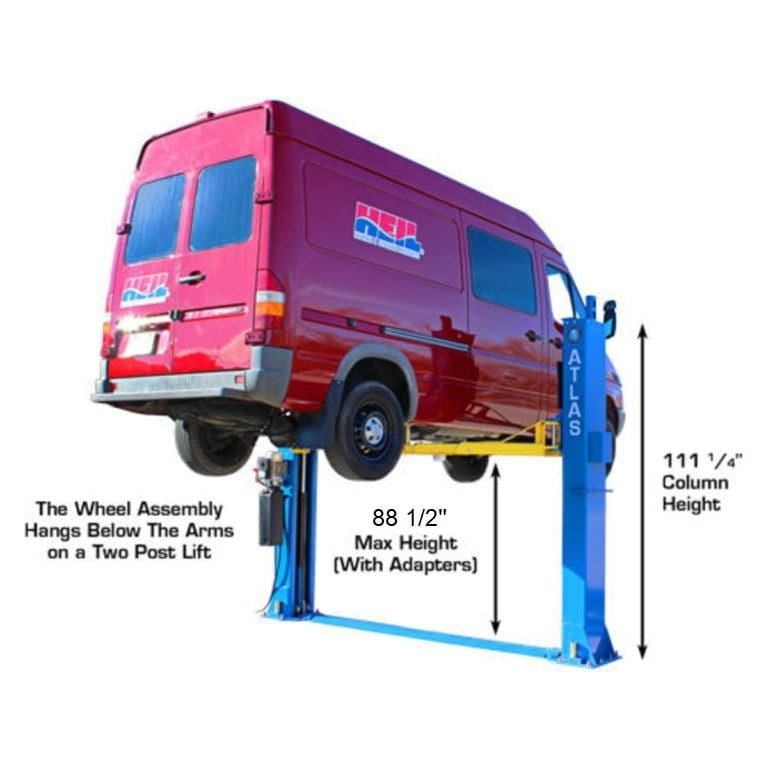

| Maximum Lift Height (With Adapters) | 88 1/2" |

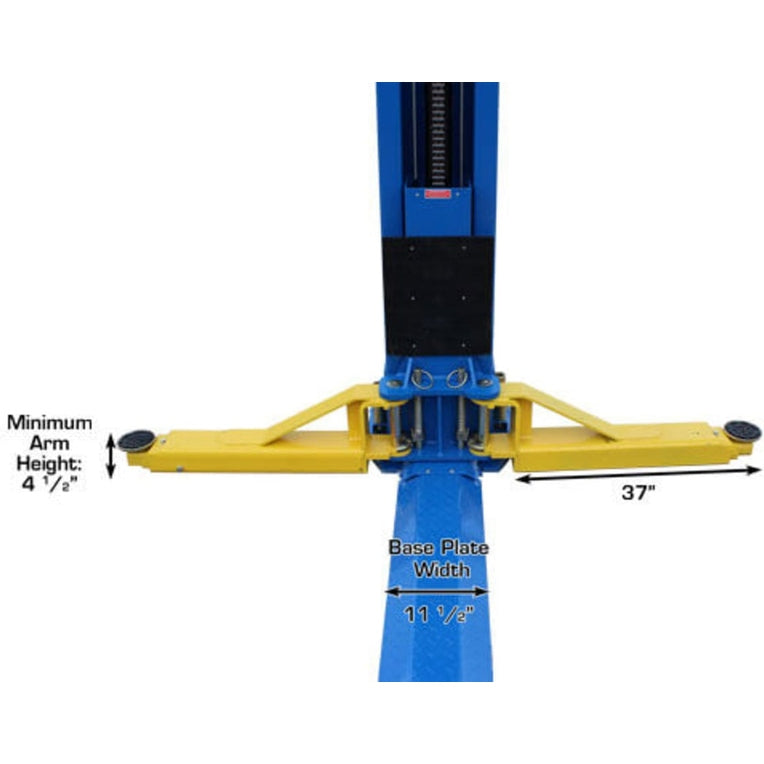

| Minimum Arm Height | 4" |

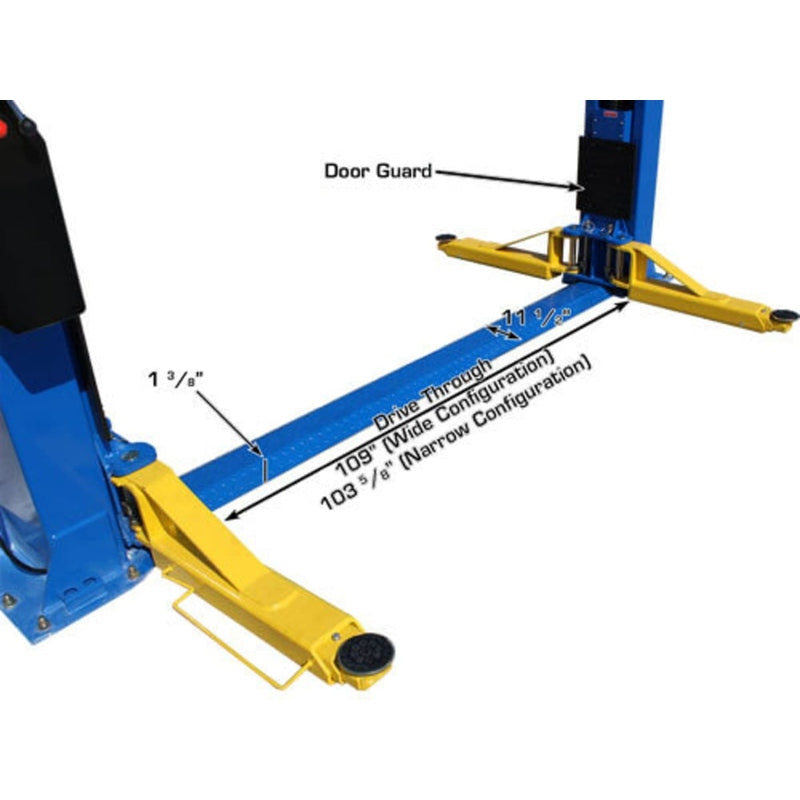

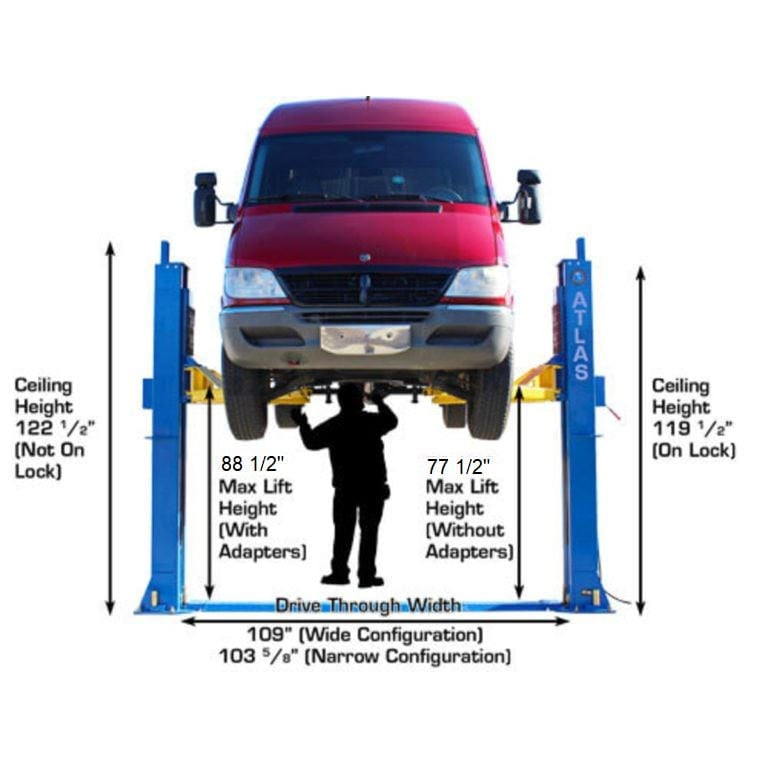

| Drive-Thru Clearance | 103 5/8" or 109" |

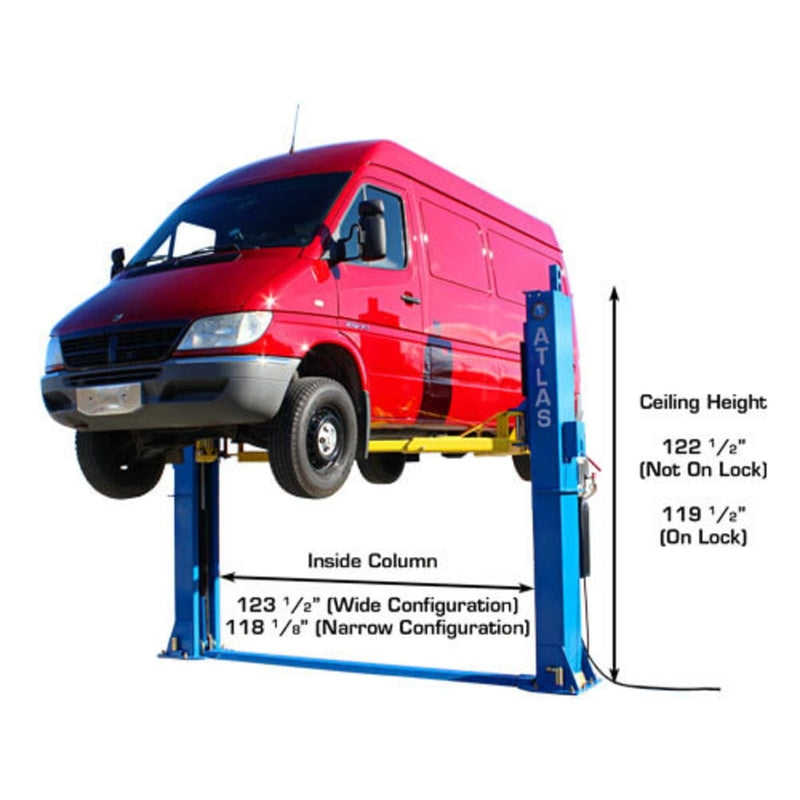

| Inside Column Distance | 118 1/8” or 123 1/2” |
| Column Dimensions | 8 3/4" x 14", 6mm thick |

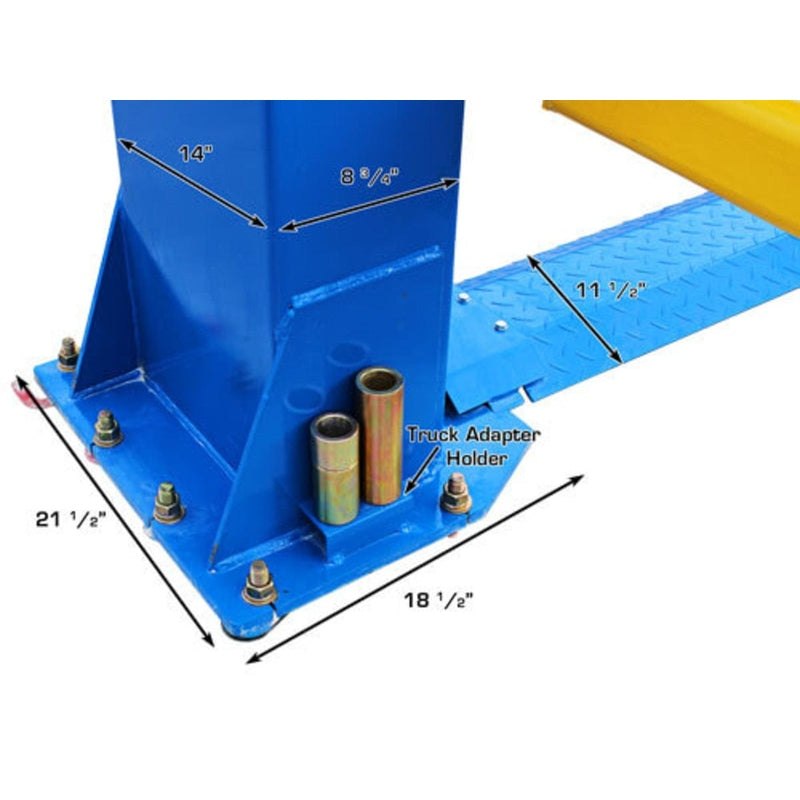

| Base Dimensions | 18 1/2" x 21 1/2" |

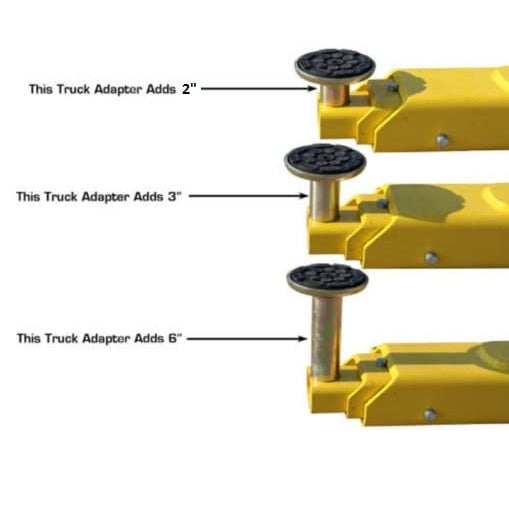

| Adapter Heights | 4 Each of 2”, 3”, 6” |
| Peg Size (Arm Hole) | 1.5” |
| Motor/Electric | 220V Single Phase (30A breaker recommended) |
| Oil Requirement | 3–5 gallons AW32 or AW46 (not included) |
| Concrete Requirement | Minimum 6" thick, 3000 psi rated |

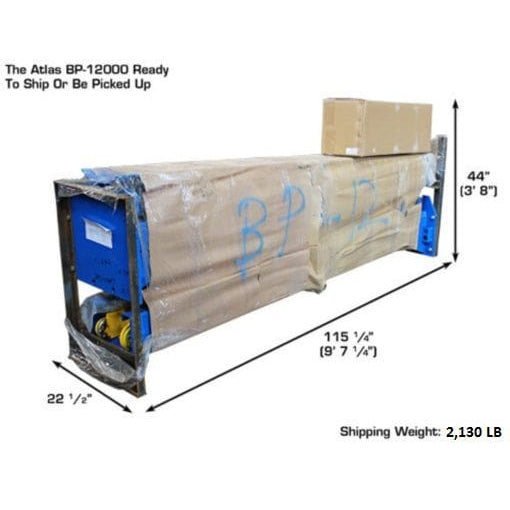

| Shipping Weight | 2,130 lbs. |
Documents
Atlas® BP12000 Cylinder Bleeding Procedure (Do this immediately after installation)
