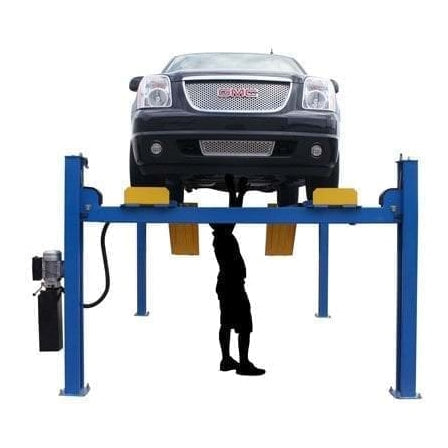

Atlas 414A 14,000 lb 4-Post Alignment Lift

The Atlas® 414A Commercial Grade Alignment Lift is engineered to meet the highest standards of the automotive industry, offering a 14,000 lb. capacity that ensures durability, safety, and smooth operation for many years. Perfect for any alignment service, this lift features exclusive, high-end features that make it stand out among competitors.

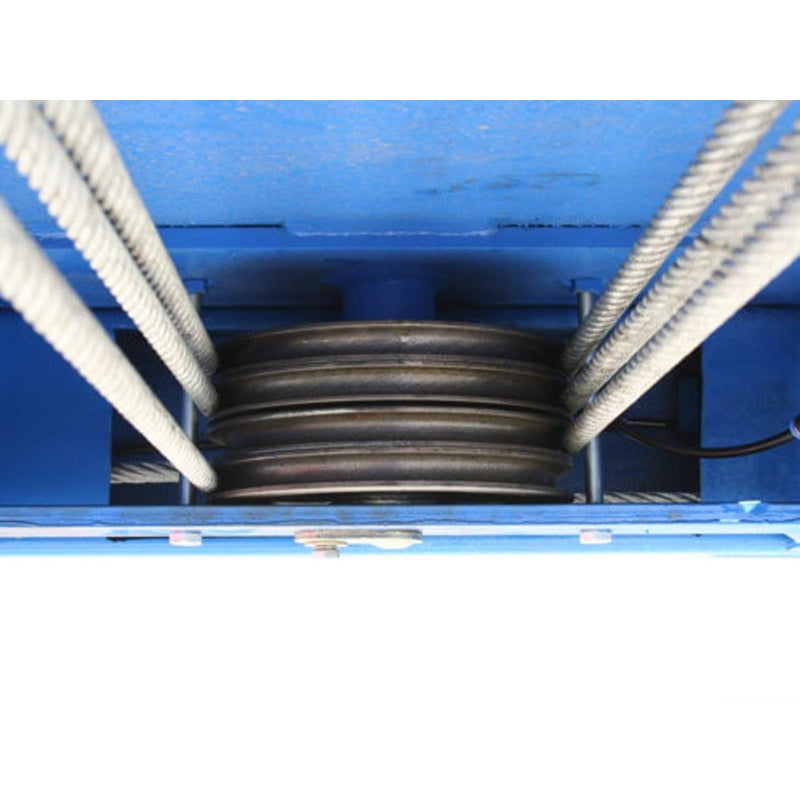

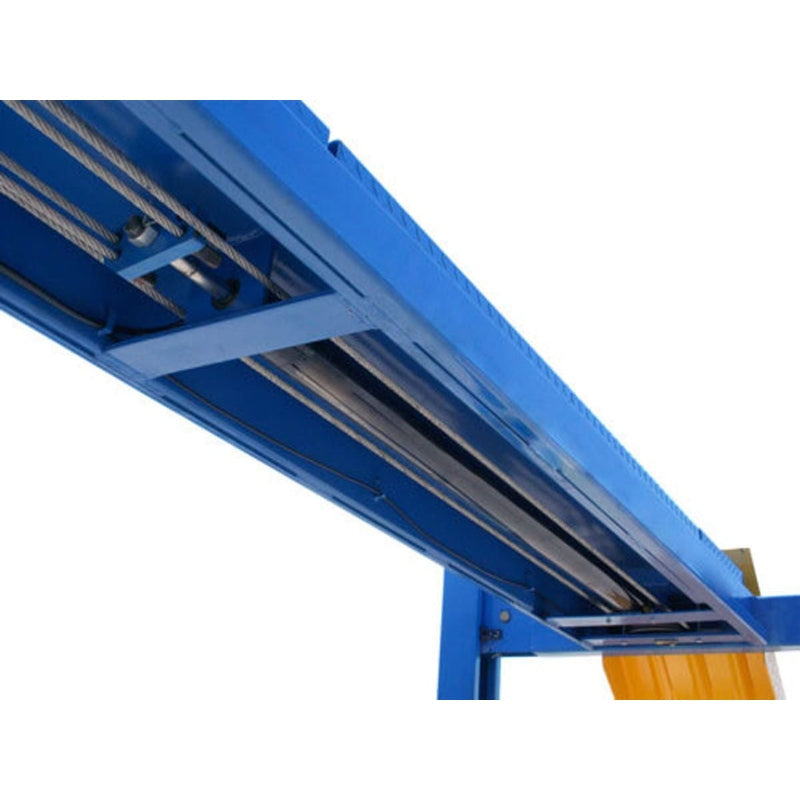

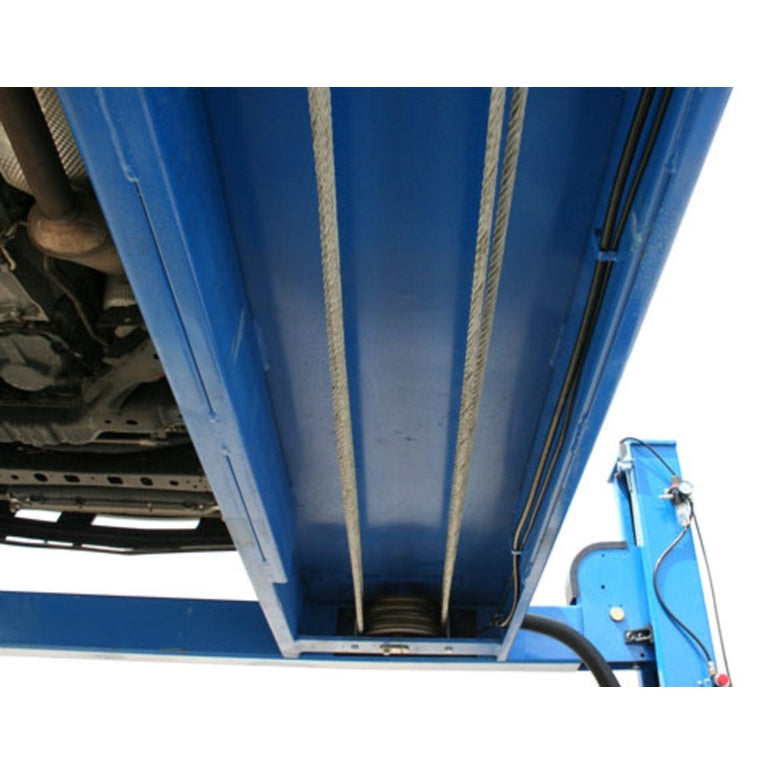

Designed for heavy-duty commercial use, the 414A is built with structural and cosmetic features usually found on much higher-priced lifts. Featuring a high-strength cable system powered by a 220V single-phase power unit, the 414A operates with ease, offering seamless lifting and lowering without the drawbacks of old-style chain lifts.

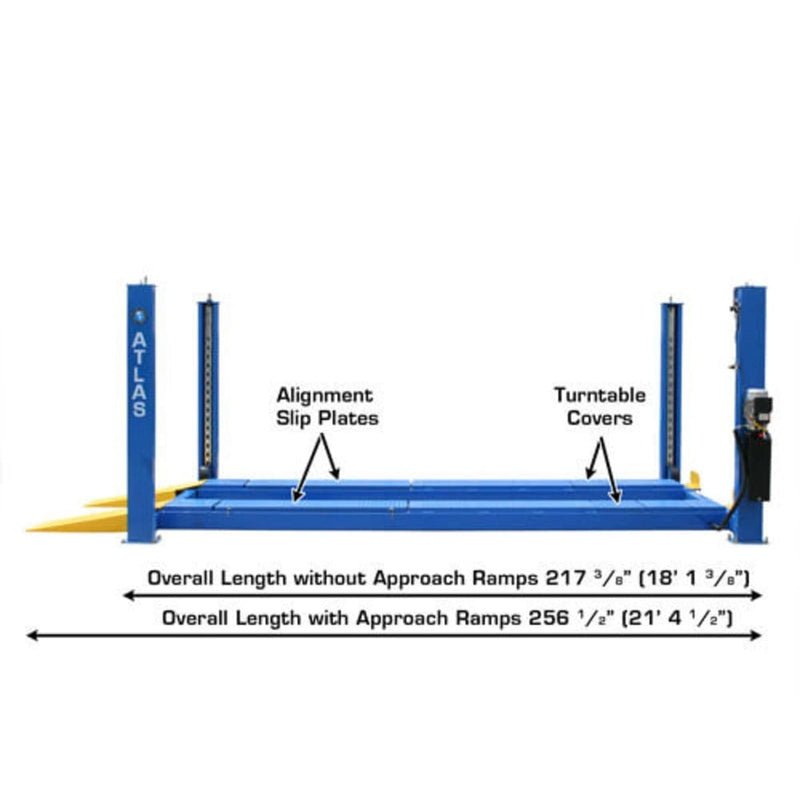

The lift’s advanced features include built-in slip plates and alignment turntables, which allow for smooth, accurate alignments and maximum versatility. The turntables can be adjusted to different positions to accommodate a wide range of wheelbases. And when not in use, the runway covers can be installed, making the lift ideal for general service work as well.

Key Features

• 14,000 lb. Capacity – Capable of lifting heavy-duty vehicles with ease.

• Heavy Duty, Commercial Grade – Built to withstand high-volume, professional use.

• Extra Tall, Extra Wide & Extra Long – Accommodates a wide variety of vehicles.

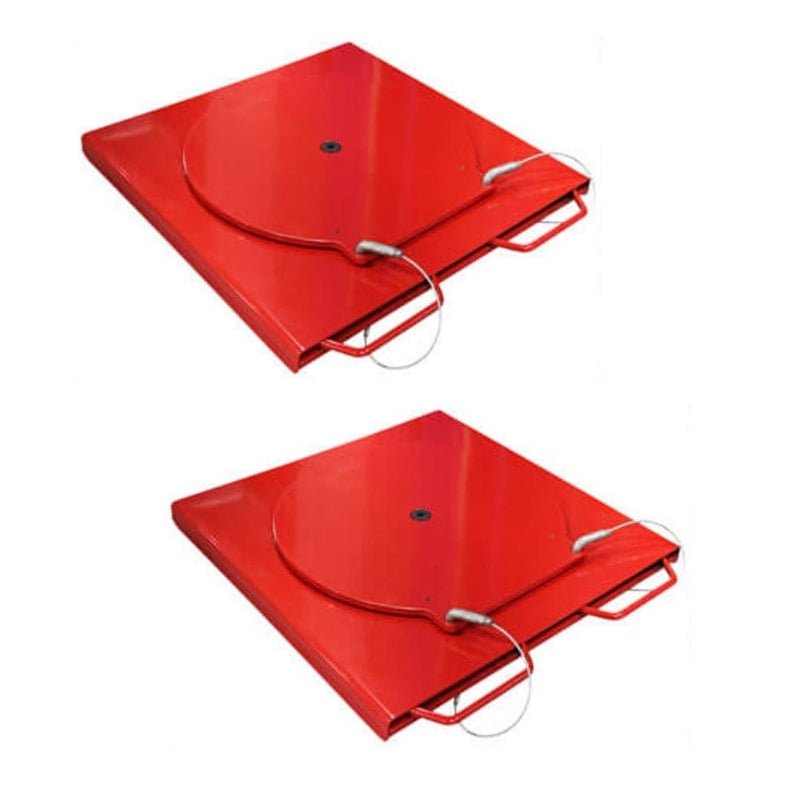

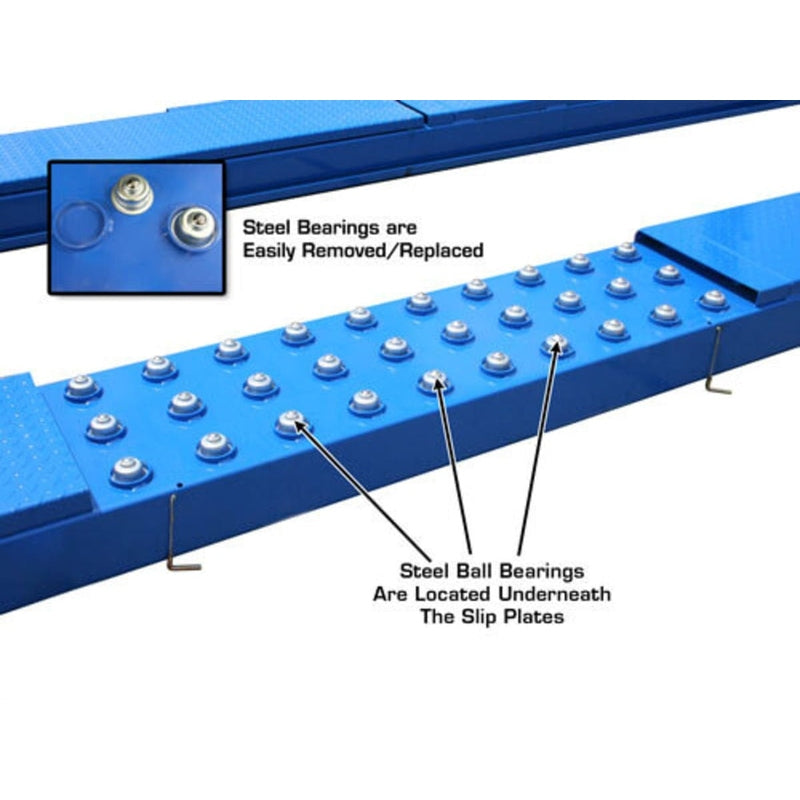

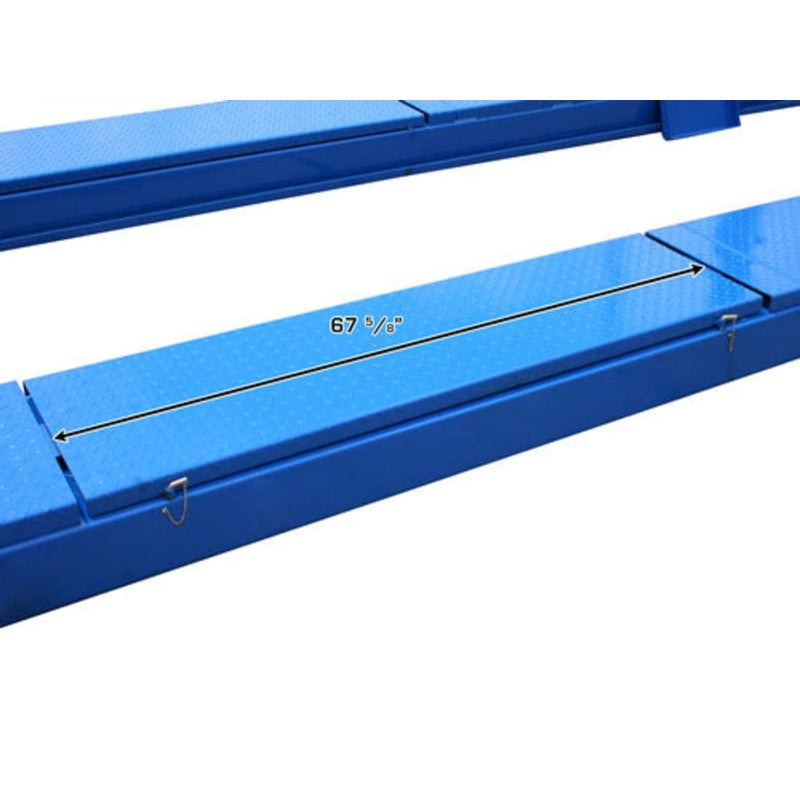

• Built-In Slip Plates & Alignment Turntables – Ensures precise alignments with ease.

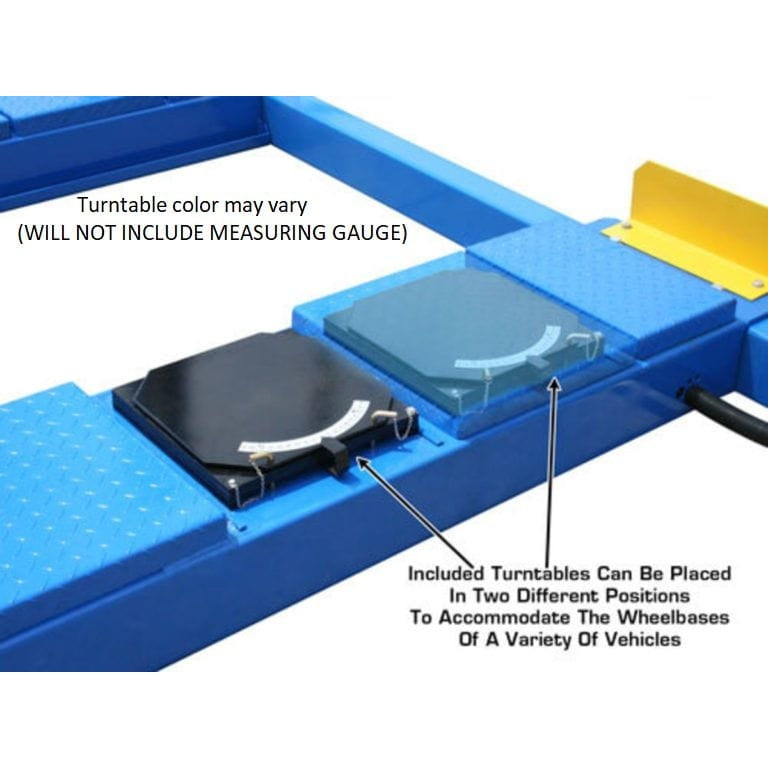

• Multiple Turntable Positions – Adjustable to fit different wheelbases.

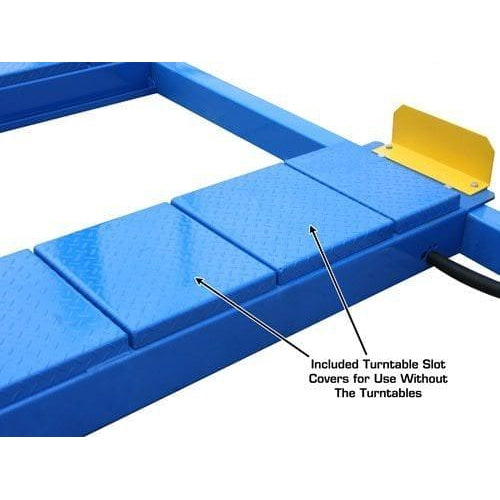

• Runway Covers Included – Protects the lift and allows for general service tasks.

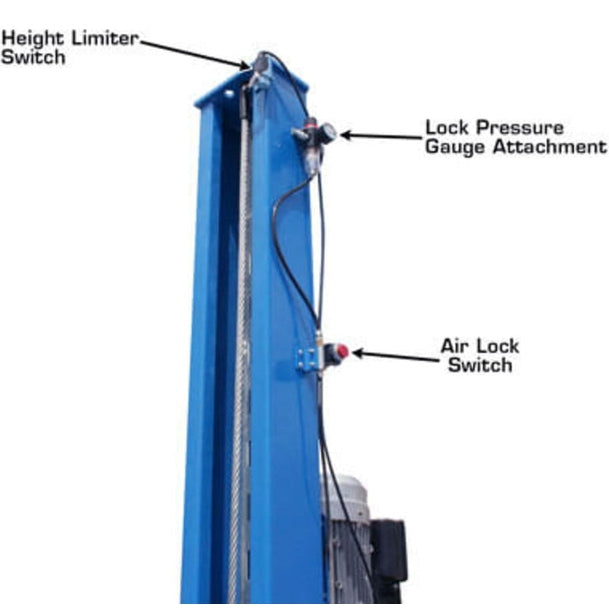

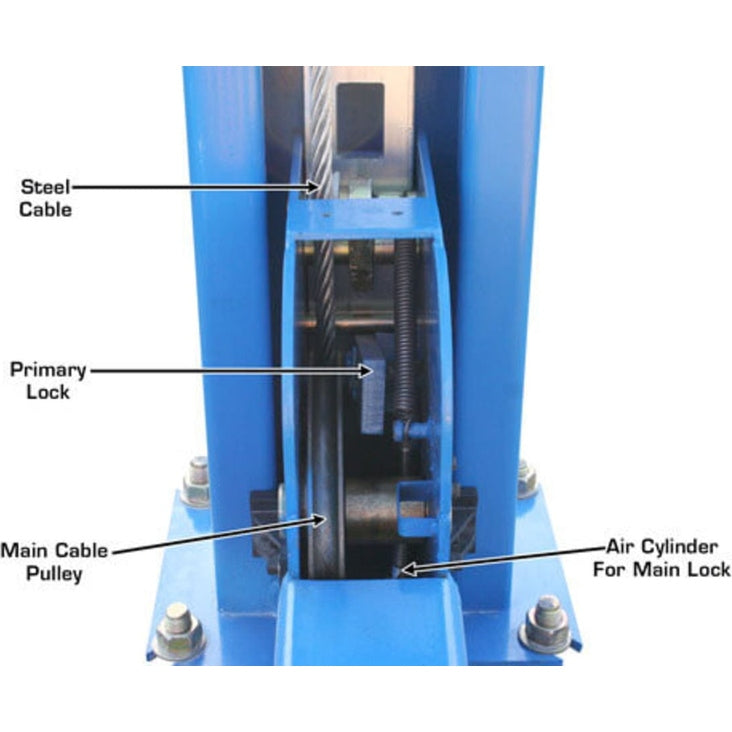

• Air Operated Single Point Lock Release – Easy operation (external air supply required).

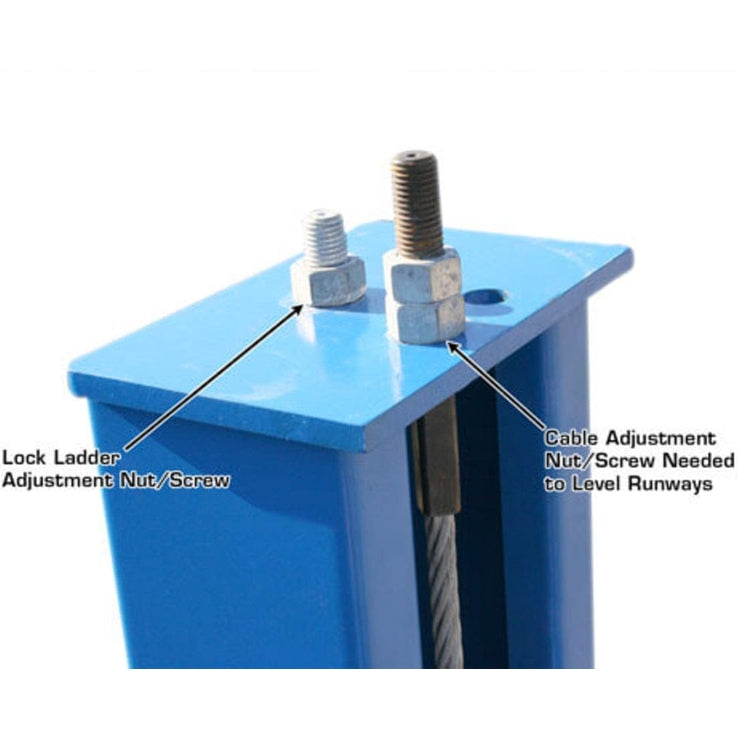

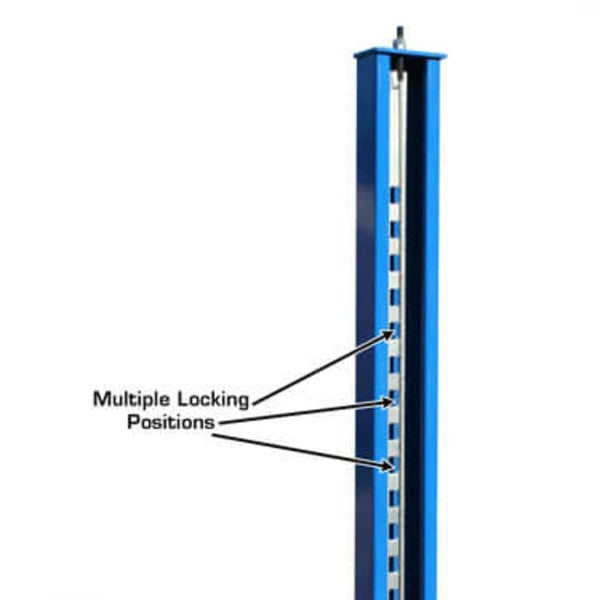

• Lock Ladder Design – For secure and safe operation.

• Double Lock Safety System – Extra layer of safety for your work environment.

• Powder Coat Finish – Long-lasting durability and resistance to wear.

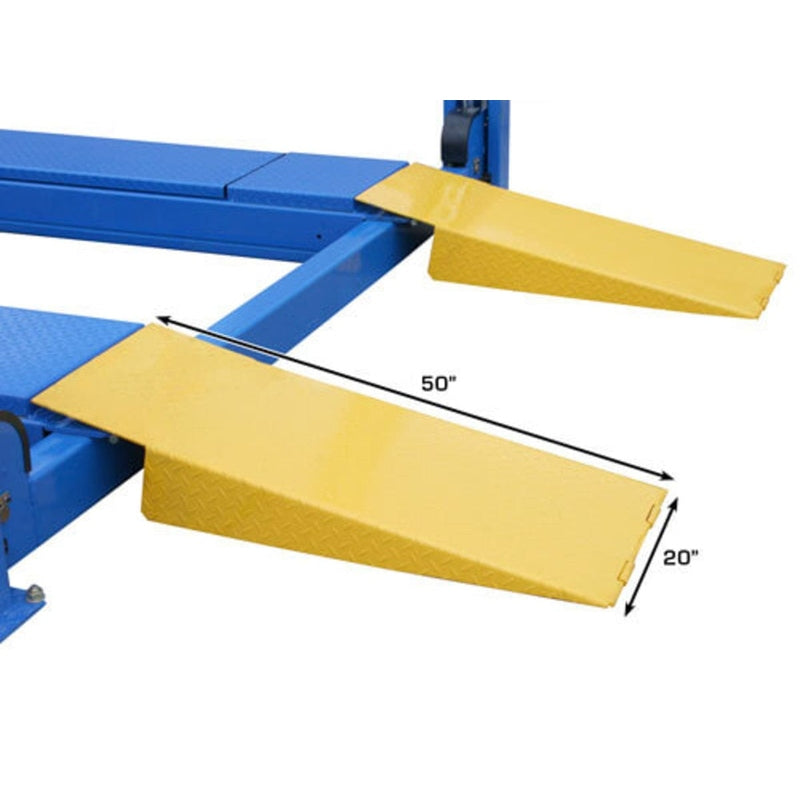

• Steel Approach Ramps Included – Provides smooth access to the lift.

• Additional Drive-off Ramps Available – Sold separately for added convenience.

• Runway Extensions Available – Expand the lift’s capacity when needed (sold separately).

• 220V/1-Phase Electric Operation – Requires 30 amp breaker (plug not included).

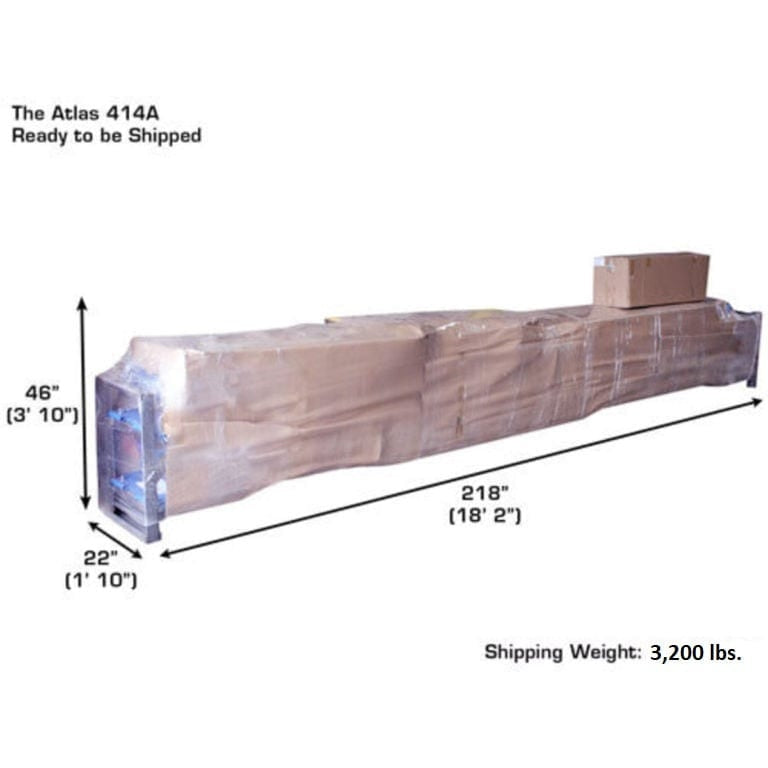

• Shipping Weight: 3,200 lbs.

5-Year Structural, 2-Year Hydraulic Warranty (Parts Only)

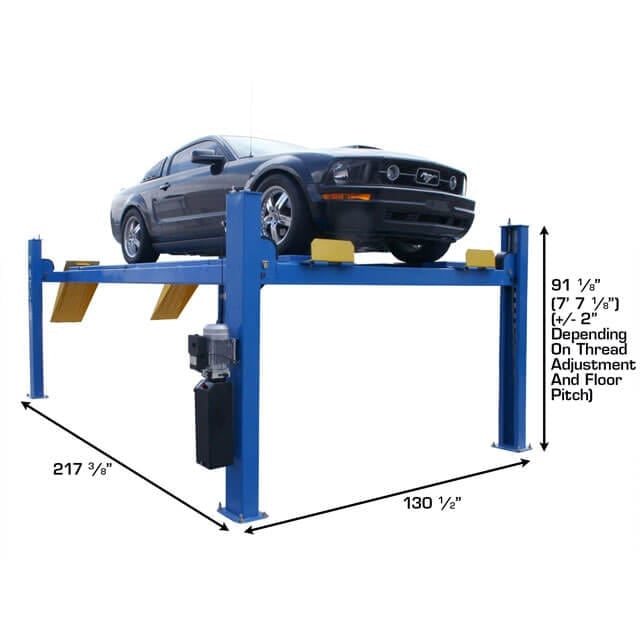

Atlas® 414A Specifications

• Capacity: 14,000 lb.

• Lifting Height: 80" (6' 8")

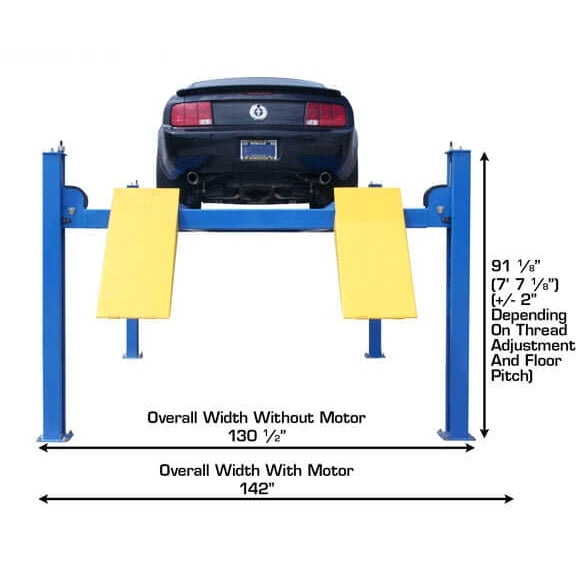

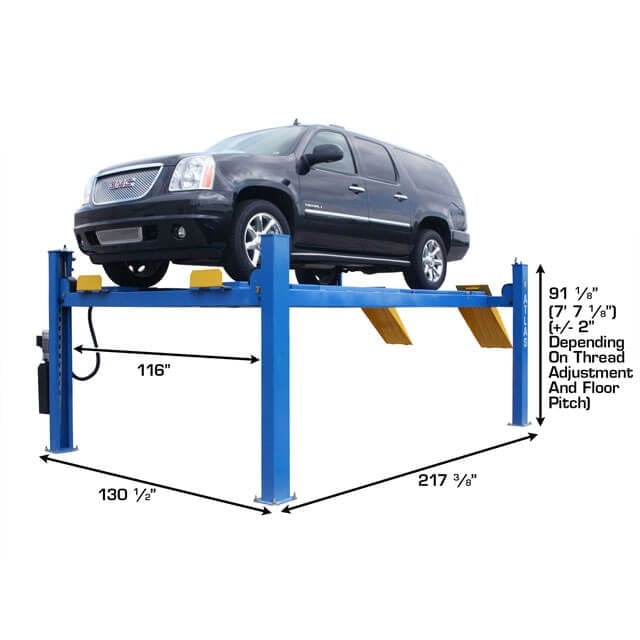

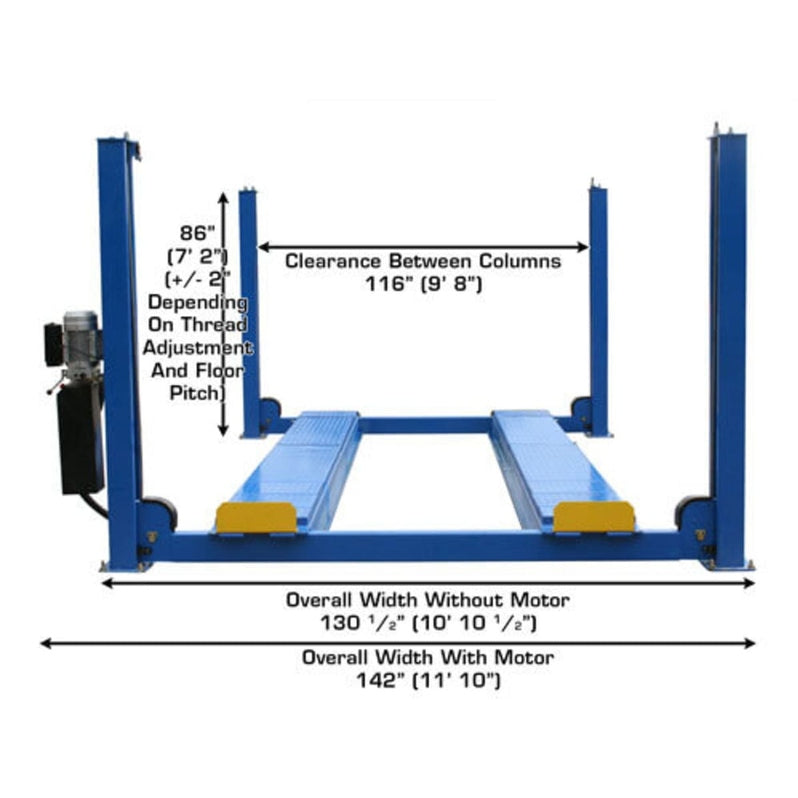

• Overall Width of Columns (Without Motor): 130 7/8" (10' 10 7/8")

• Overall Width of Columns (With Motor): 138 7/8" (11' 6 7/8")

• Overall Length with Approach Ramp: 255" (21' 3")

• Length Between Columns: 197 1/4" (16' 5 1/4")

• Runway Length: 208 5/8" (17' 4 5/8")

• Runway Width: 20"

• Thickness of Runway: 8 3/4"

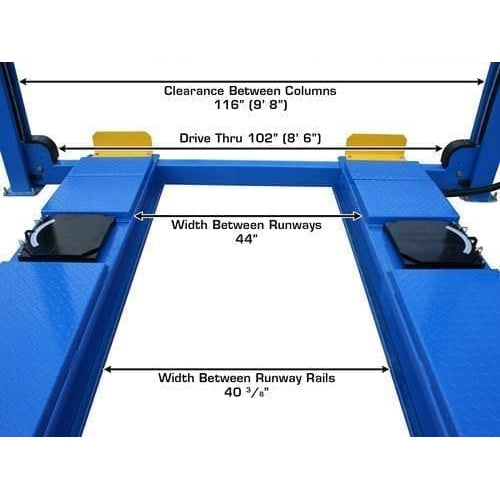

• Width Between Runways: 46 7/8" (with rail 44 3/8")

• Outside Runway to Outside Runway: 86 7/8" (7' 2 7/8")

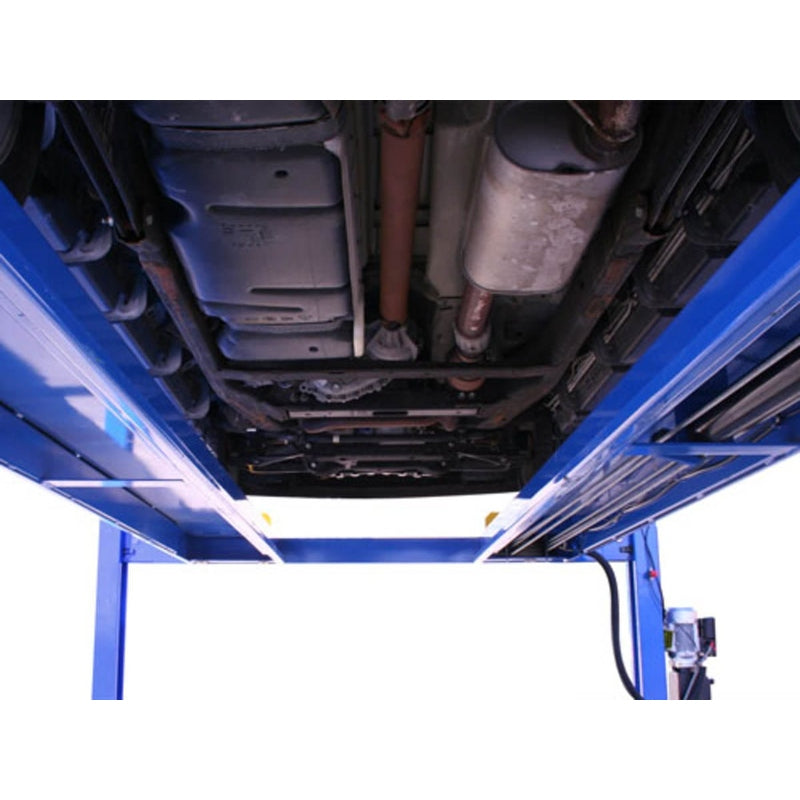

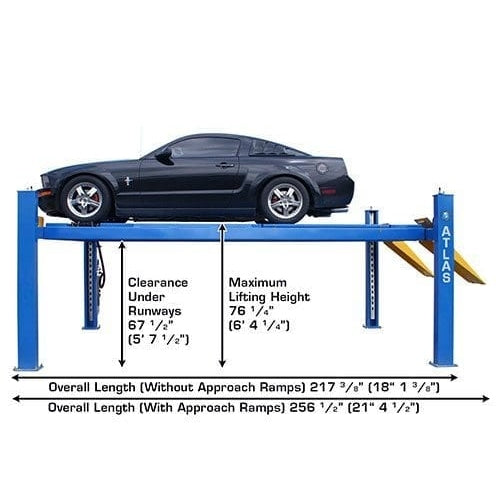

• Clearance Under Runways: 71 1/4" (5' 11 1/4")

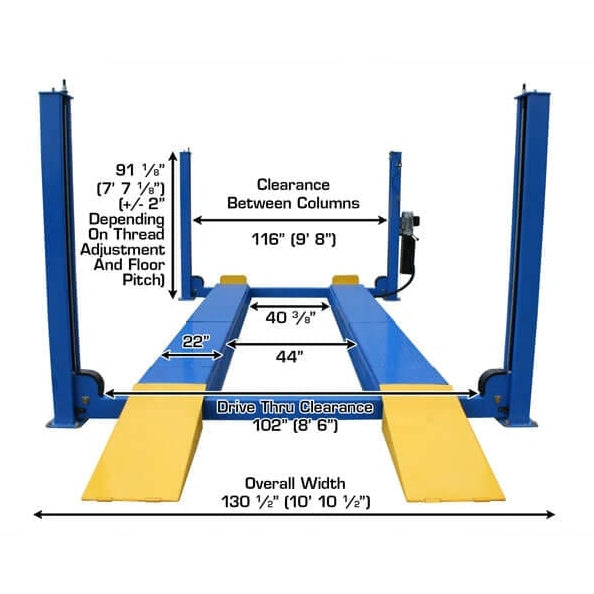

• Clearance Between Columns: 116" (9' 8")

• Height of Columns: 91 1/8" (7' 7 1/8")

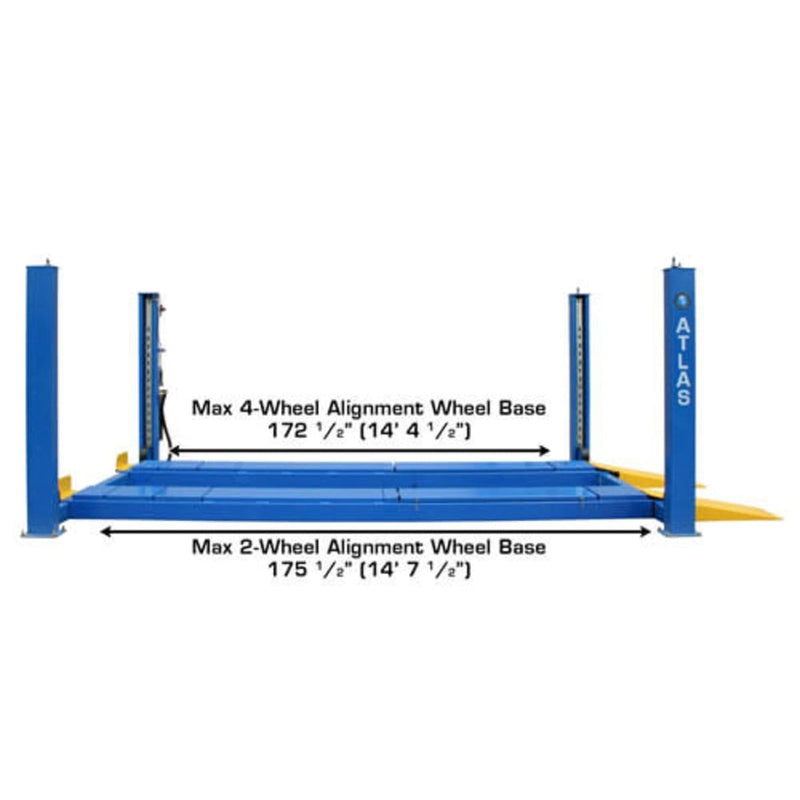

• Maximum Wheel Base: 197" (16' 5")

• Drive Thru: 102 1/8" (8' 6 1/8")

• Air Requirement: 85-115 PSI (external air supply required)

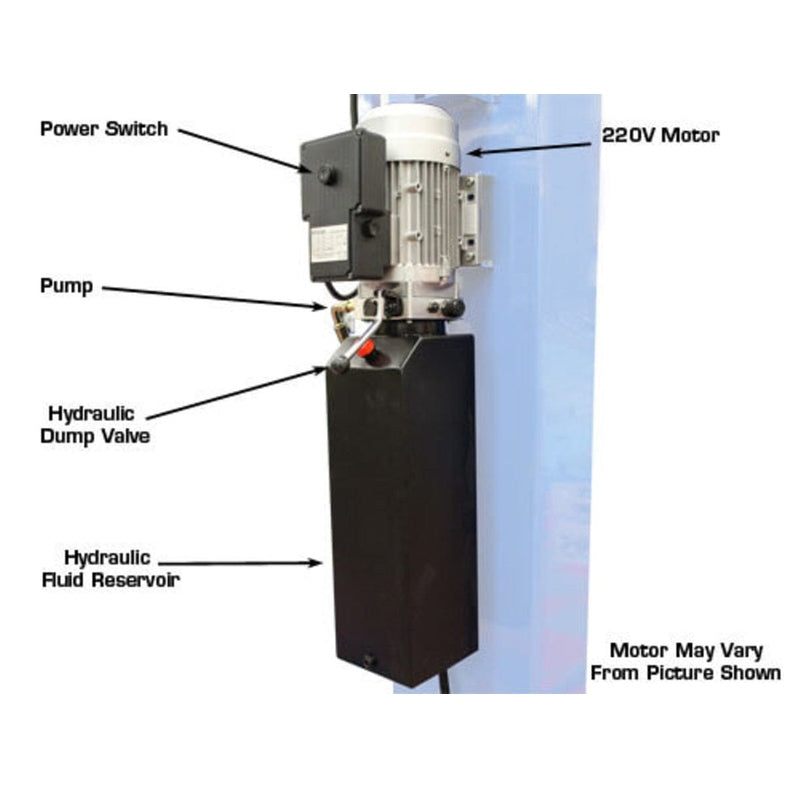

• Motor/Electrical Requirement: 220V single-phase (requires 30 amp breaker)

• Oil Requirement: 3-5 gallons AW32 or AW46 (not included)

• Shipping Weight: 3,200 lbs.

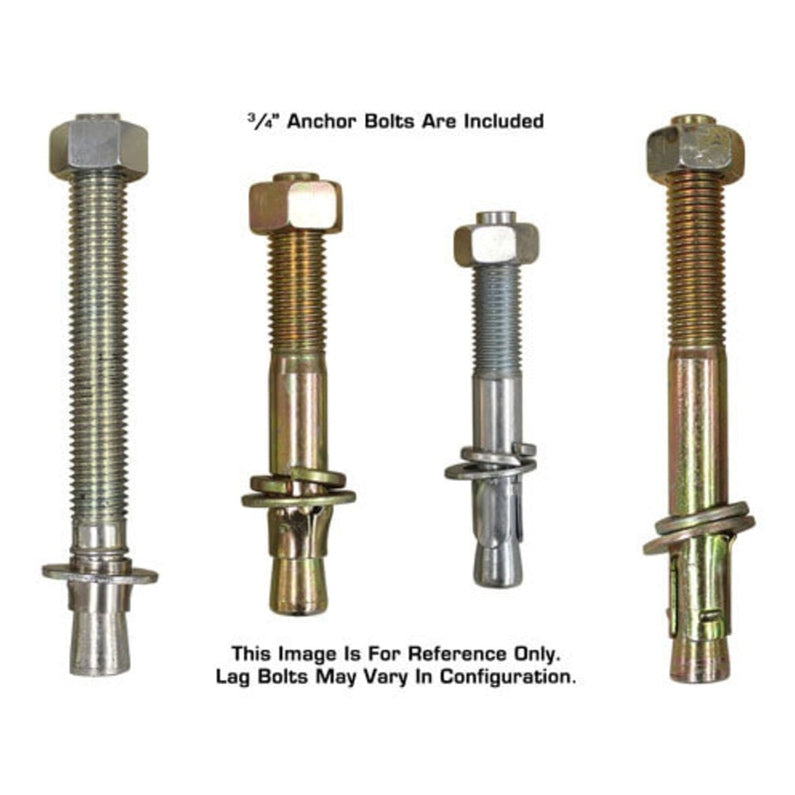

• Concrete Requirement: Minimum 6" thickness, 3000 psi concrete rating
