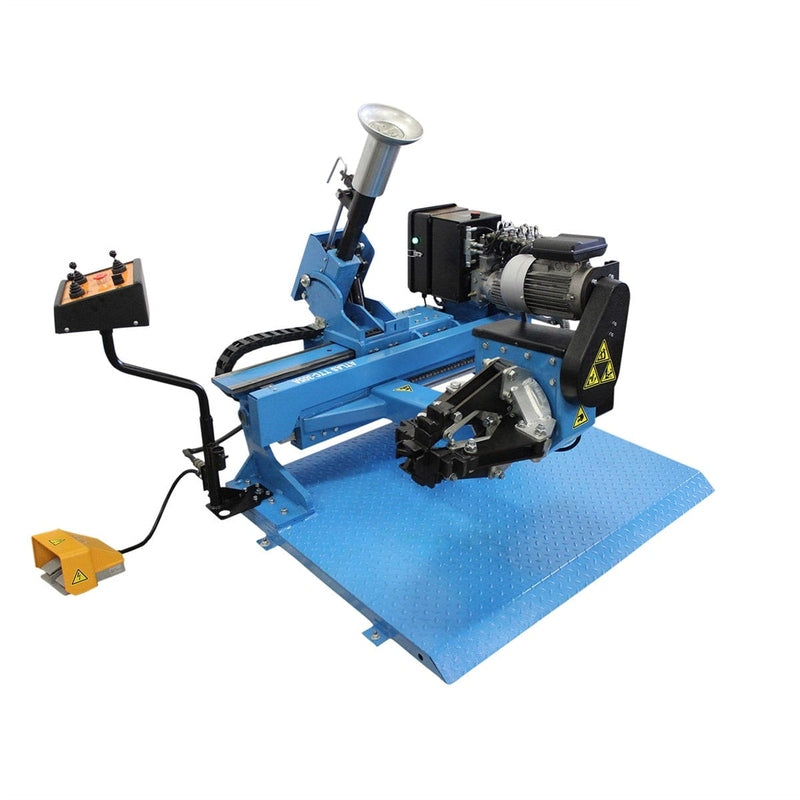

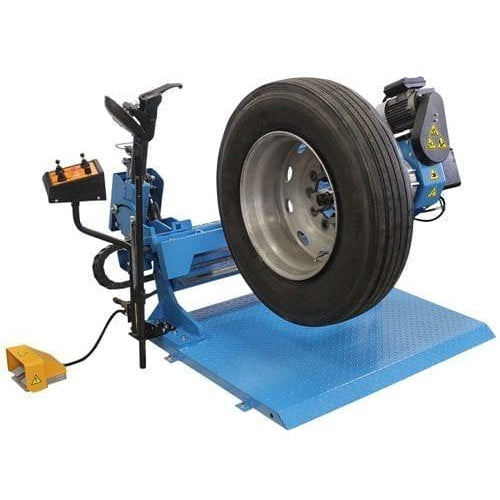

Efficient, Fully Automatic Tire Changer for High-Production Shops
The Atlas® TTC305A Automatic Truck Tire Changer is built for high-production shops, handling rim bore sizes from 8 inches to 26 inches and tire diameters up to 55 inches. It is designed to accommodate tires up to 30 1/2 inches wide, making it an ideal solution for changing semi-truck, 19.5 tires, and forklift tires. The fully automatic operation helps eliminate the physical strain of using tire irons, making the tire-changing process faster and more efficient.
The Atlas® TTC305A is a result of a collaboration between a renowned Italian wheel service manufacturer and a respected wheel service equipment manufacturer from Asia. With its user-friendly toggle control panel and foot pedals, this machine ensures that technicians can control the automatic movements of the chuck arm, bead tool, and carriage with ease.
Features
-
Fully automatic truck tire changer
-
Handles rims from 8″ to 26″ and tire diameters up to 55″
-
Accommodates tires with a max width of up to 30 1/2″
-
Automatic movement and positioning of bead tool, carriage, and chuck arm
-

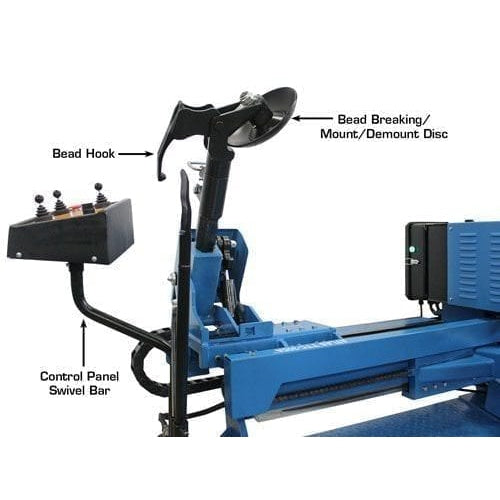

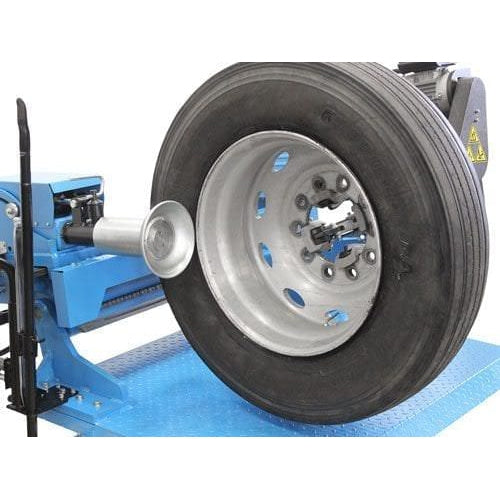

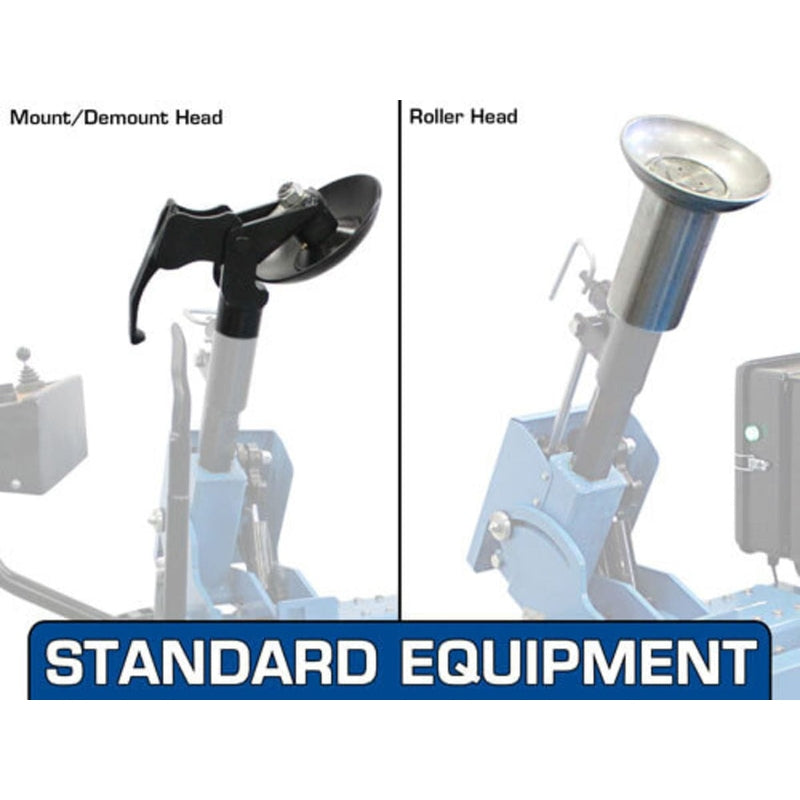

Bead breaker and interchangeable mount/demount and roller heads
-

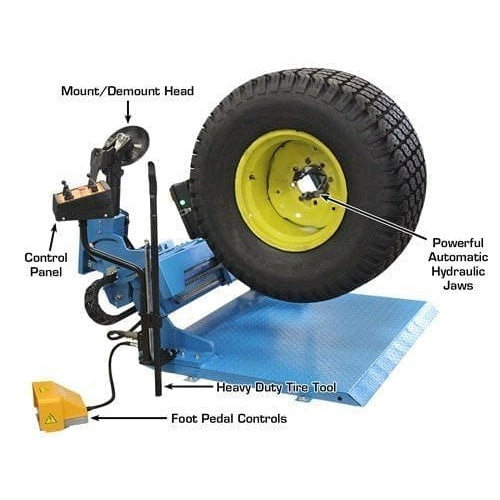

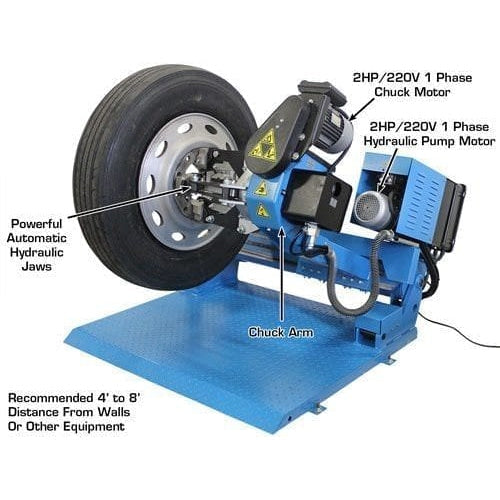

Electric/hydraulic self-centering four-jaw chuck with 5 rim locking positions
-

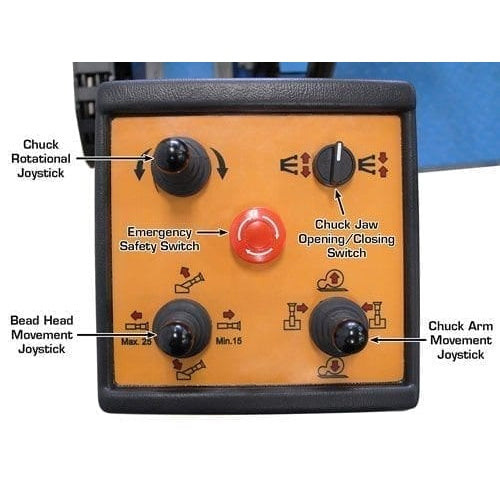

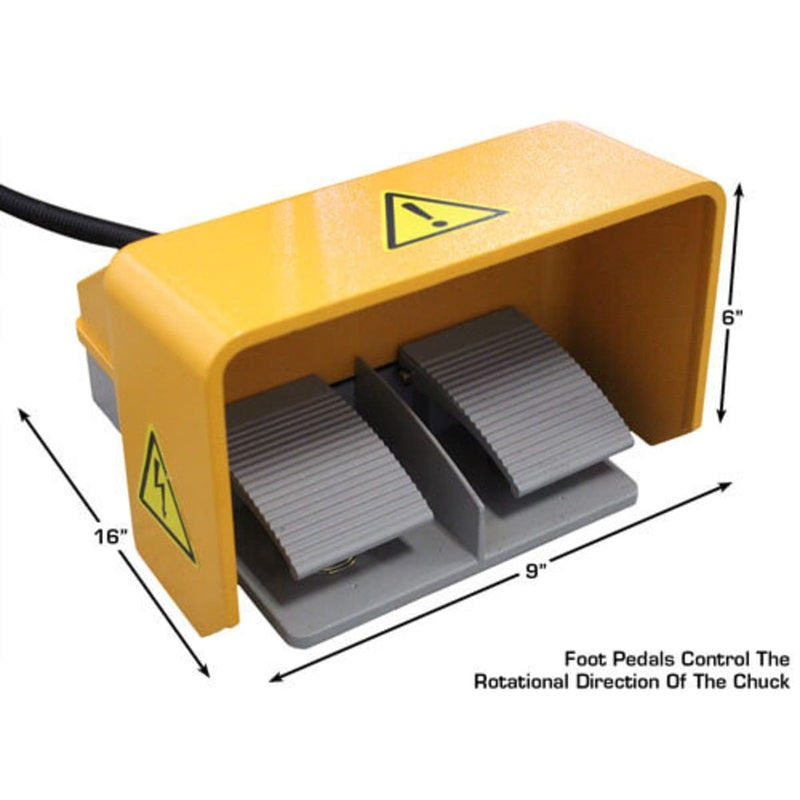

Mounted control unit with additional foot pedal controls
-

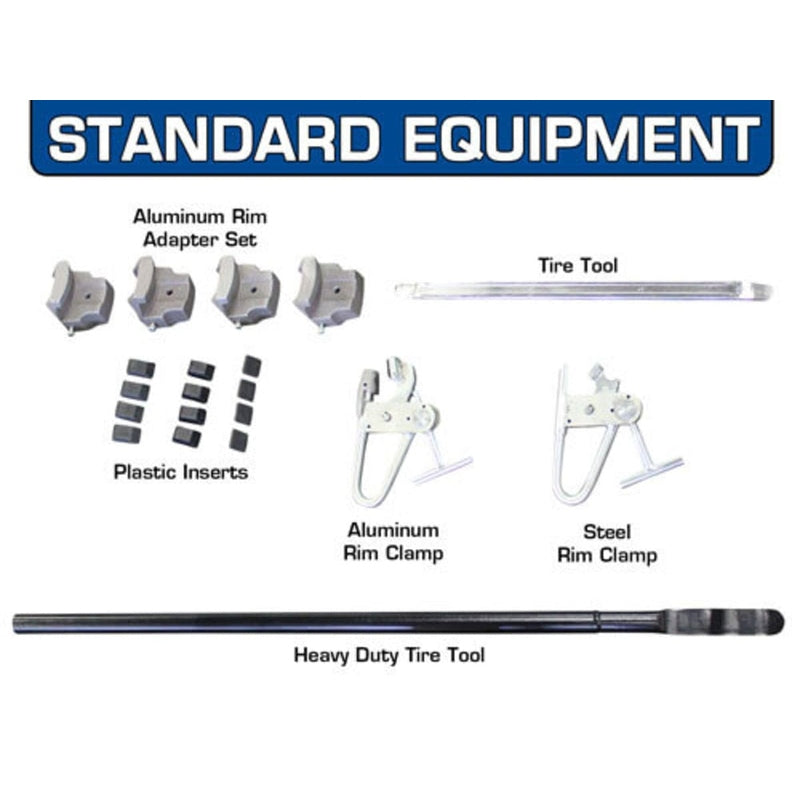

Heavy-duty tire tool included
-
Rim clamps for both steel and alloy wheels
-
Alloy rim adapter set with plastic inserts
-
1-year parts-only warranty
Specifications
| Specification | Details |
|---|---|

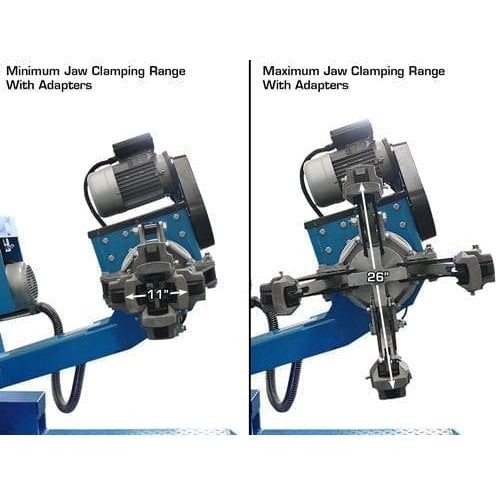

| Rim Clamping Range | 13" – 26" |
| Minimum Clamping Size w/ Alloy Adapters | 8" |
| Max Wheel Weight | 838 lbs. |
| Max Tire Diameter | 55" |
| Max Tire Width | 30 1/2" (2' 6 1/2") |
| Clamping Power | 6,600 lbs. |
| Bead Breaker Force | 3,990 lbs. |
| Tool Arm/Head Positioning | Automatic |
| Operating Pressure | 0–1885 PSI |
| Acoustic Pressure | <70 dBA |

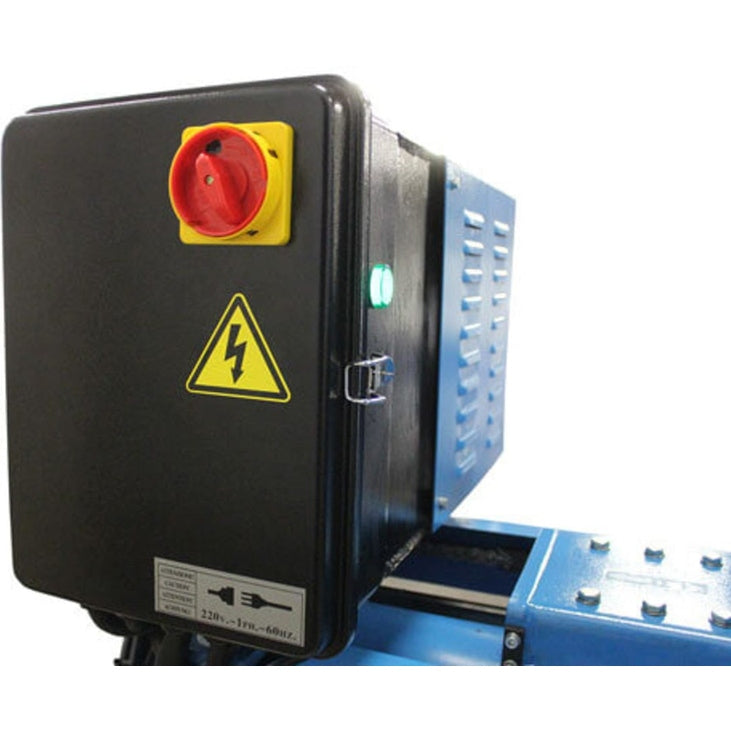

| Hydraulic Motor Power | 2 HP, 220V, 1-phase |
| Chuck Motor Power | 3 HP, 220V, 1-phase |
| Construction | One-piece frame with solid floor plate |

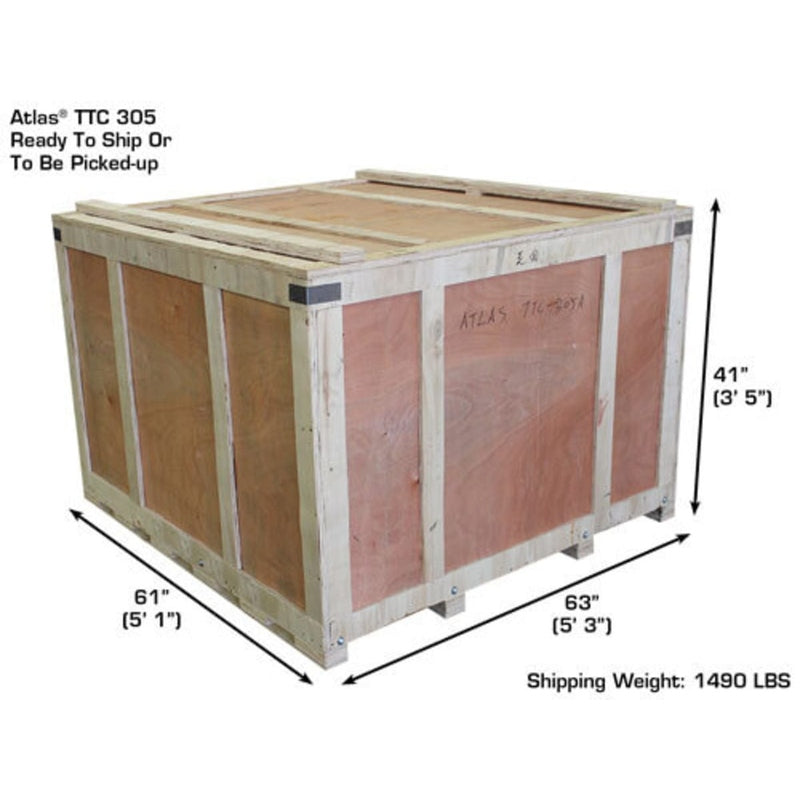

| Shipping Weight | 1,490 lbs. |
