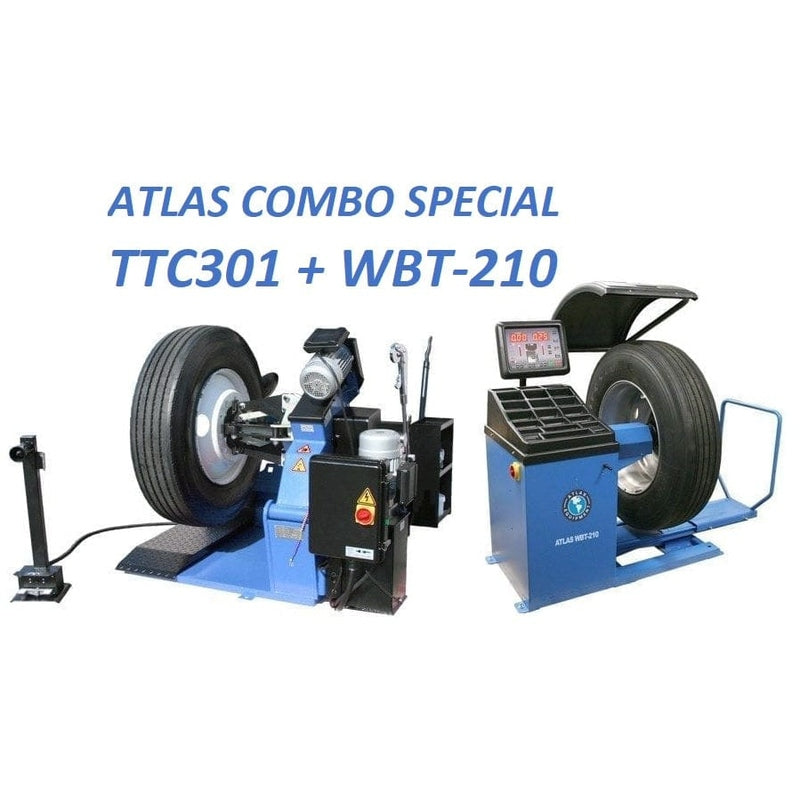

Atlas® TC301 Truck Tire Changer & WBT-210 Wheel Balancer Combo Package
This Combo Package includes the Atlas® TC301 Truck Tire Changer and the Atlas® WBT-210 Computerized Wheel Balancer, offering a complete solution for high-volume truck tire shops. The Atlas® TC301 is engineered for heavy-duty use, handling rims from 13 inches to 27 inches and tire diameters up to 63 inches. Designed for tires up to 30.5 inches wide, it is ideal for both standard and large truck tires.
Paired with the Atlas® WBT-210, a versatile computer-controlled spin balancer, this combo can balance everything from small car rims to heavy-duty 300-pound semi-truck tires. This package is perfect for shops that service everything from passenger vehicles to large trucks and semi-trailer rigs.
Features

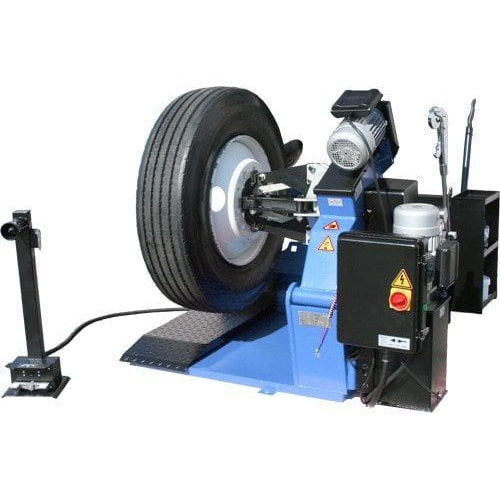

Atlas® TC301 Truck Tire Changer
-
Handles rims from 13″ to 27″ and tire diameters up to 63″
-
Accommodates tires with a maximum width of up to 30 1/2″
-

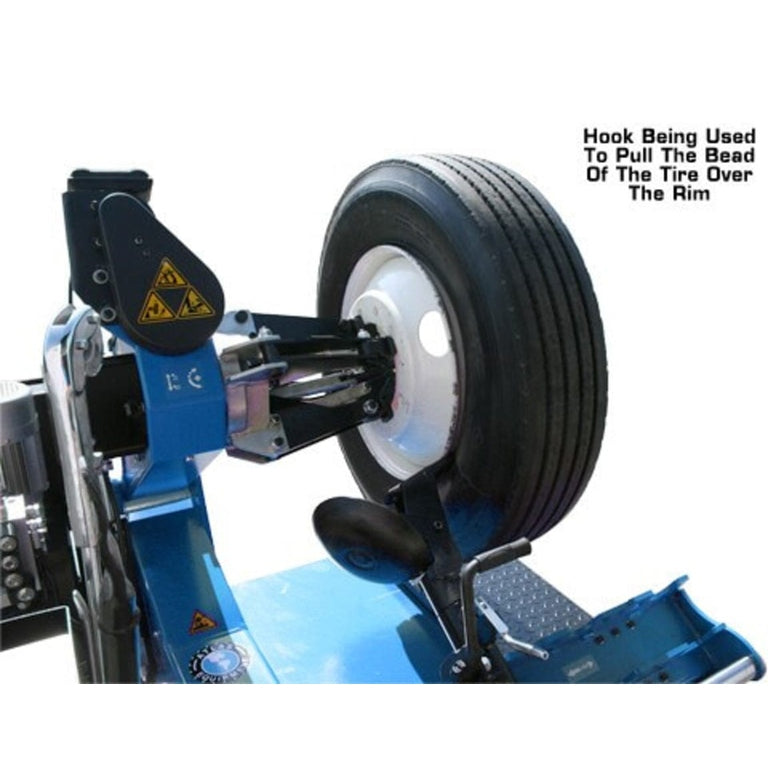

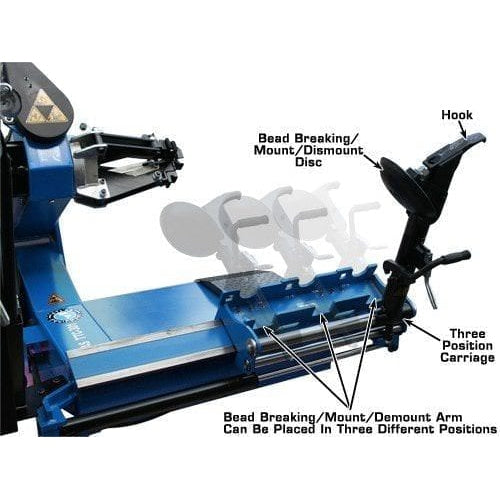

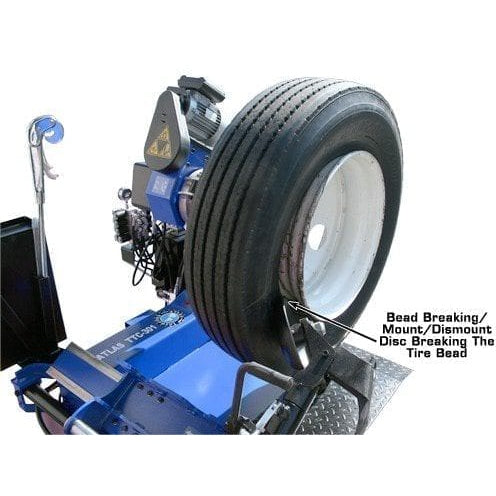

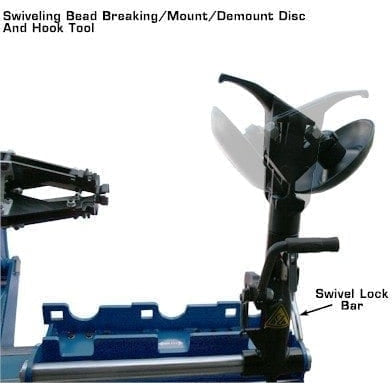

Bead breaker and Mount/Demount Head
-

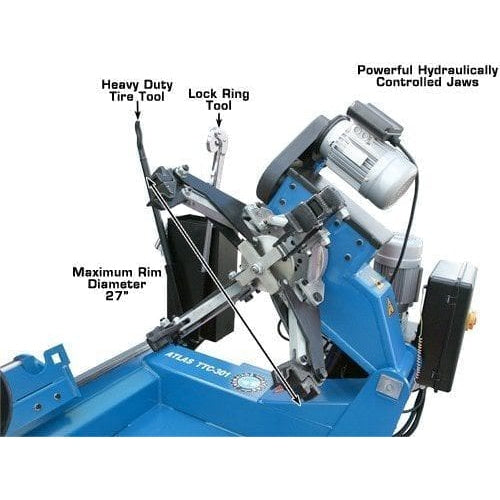

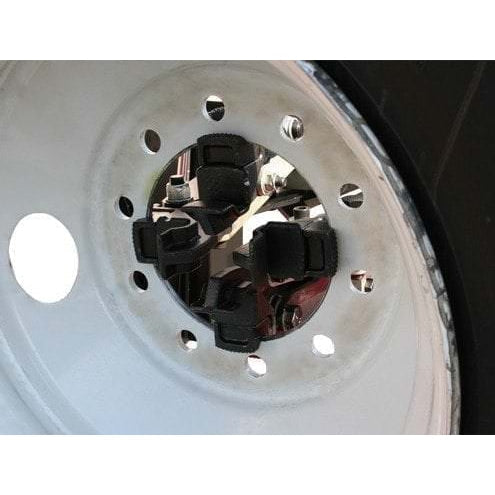

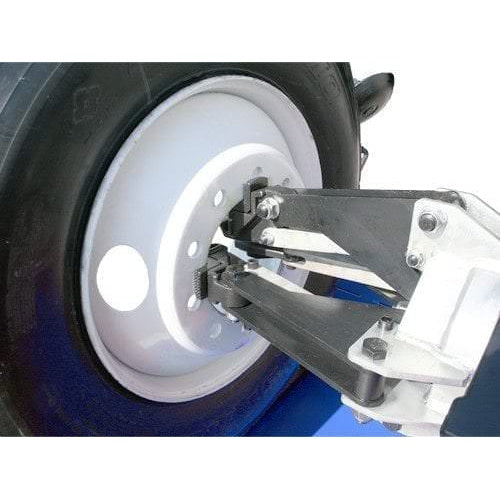

Electric/hydraulic self-centering Four-Jaw Chuck
-
5 rim locking positions
-

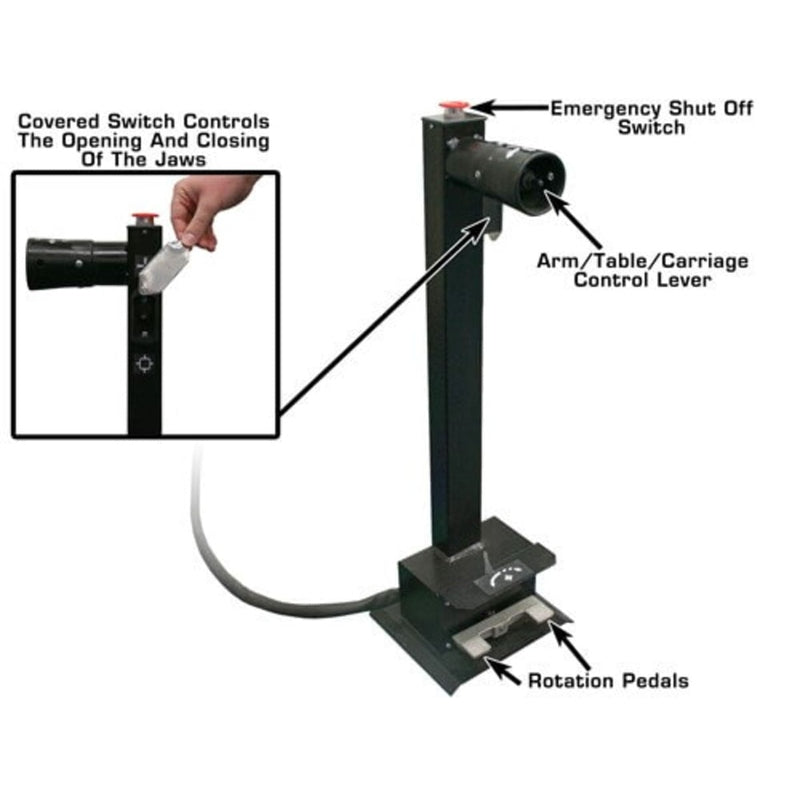

Wired mobile control unit
-

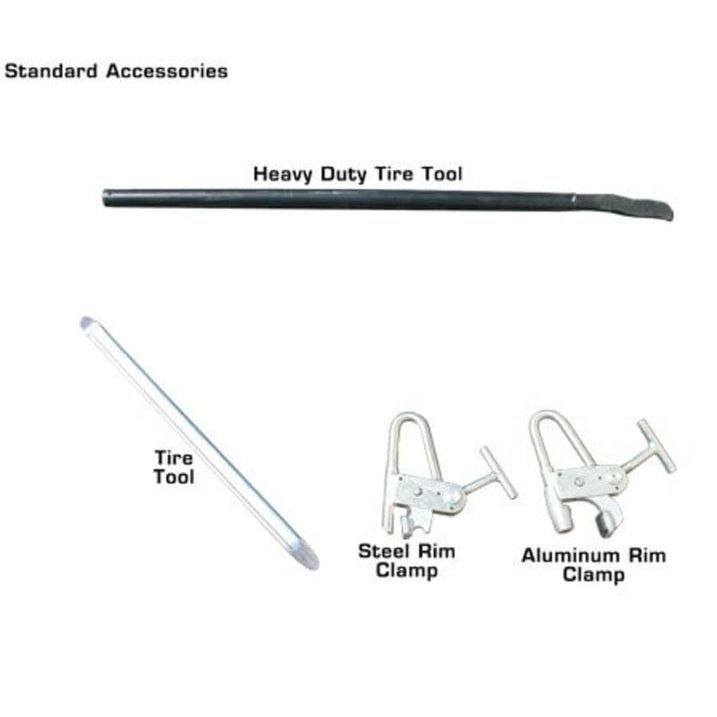

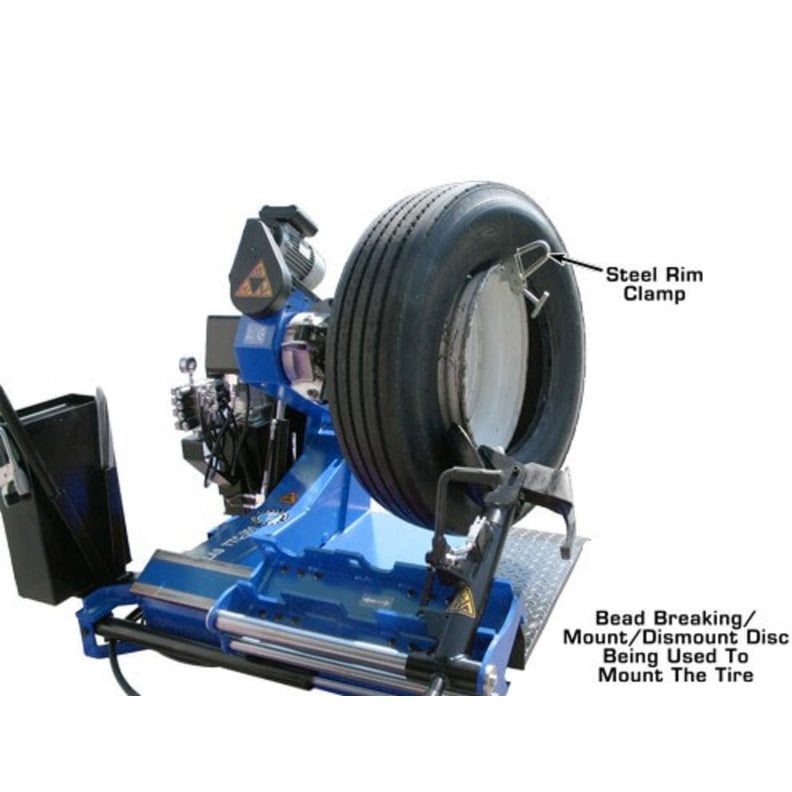

Heavy-duty tire tool and rim clamps for steel and alloy wheels included
-

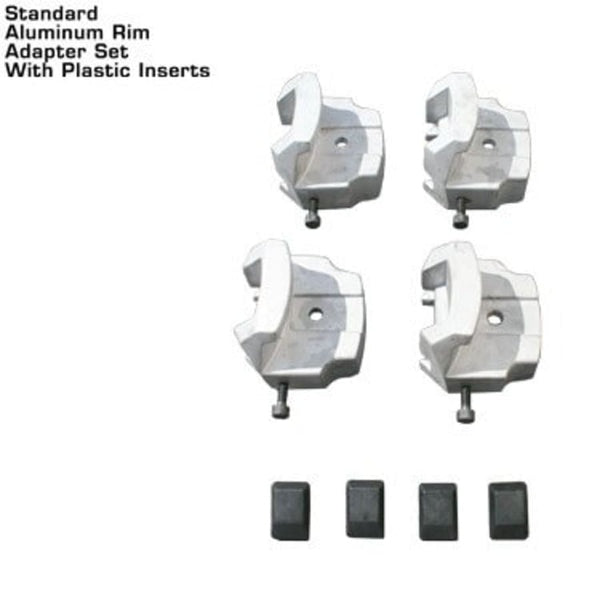

Alloy rim adapter set with plastic inserts
-
1-year parts-only warranty

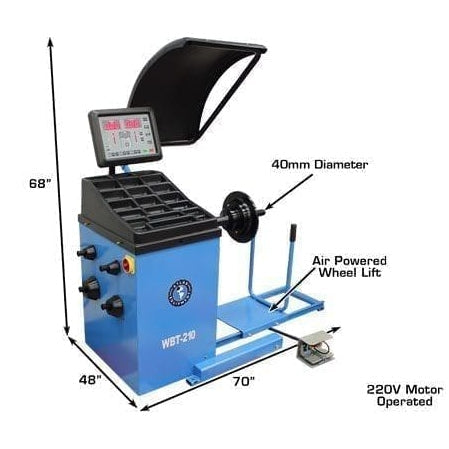

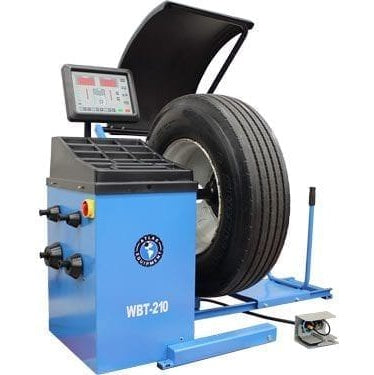

Atlas® WBT-210 Wheel Balancer
-
Designed for rim sizes from 10″ to 32″ (car & light truck) and up to 47″ tire diameter
-

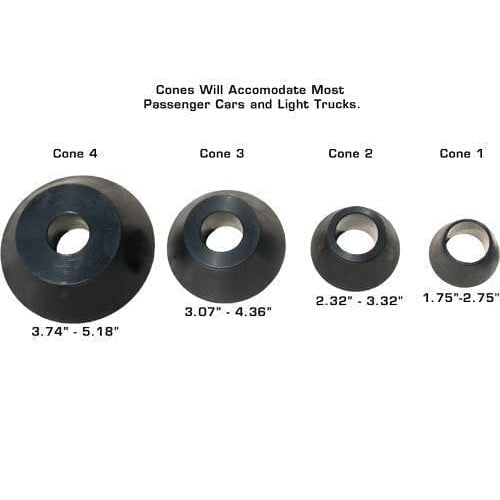

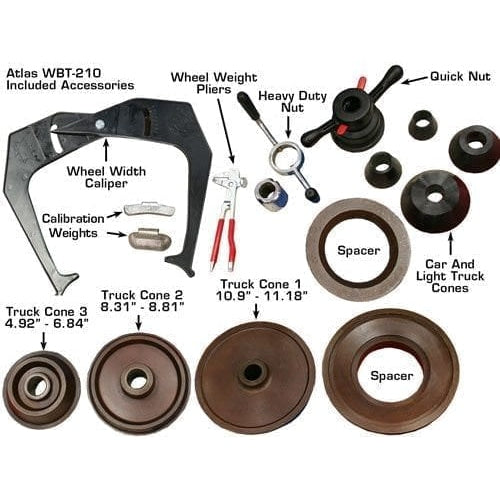

Includes cone sets for car, light truck, and truck/bus/implement tires
-
Features static and dynamic balancing modes
-

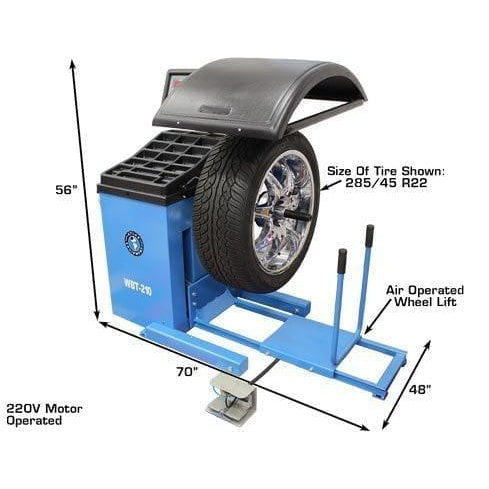

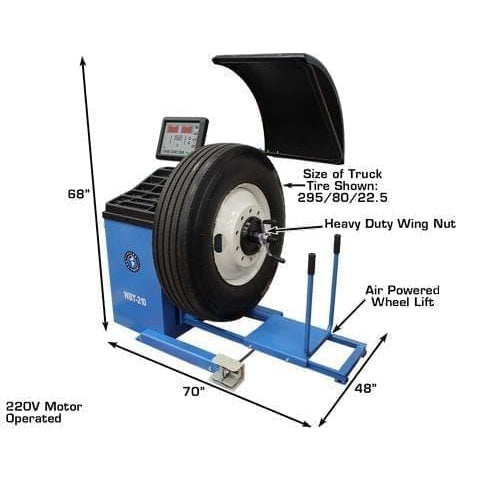

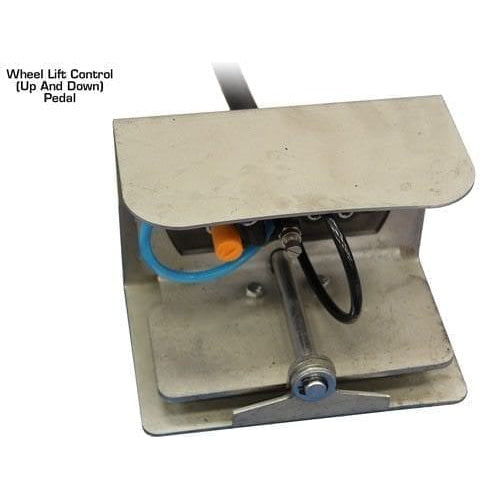

Pneumatic wheel lift (external air supply required)
-
Automatic start/stop when the hood is raised or lowered
-
Rapid optimization (OPT) mode
-
Self-diagnosis and self-calibration
-

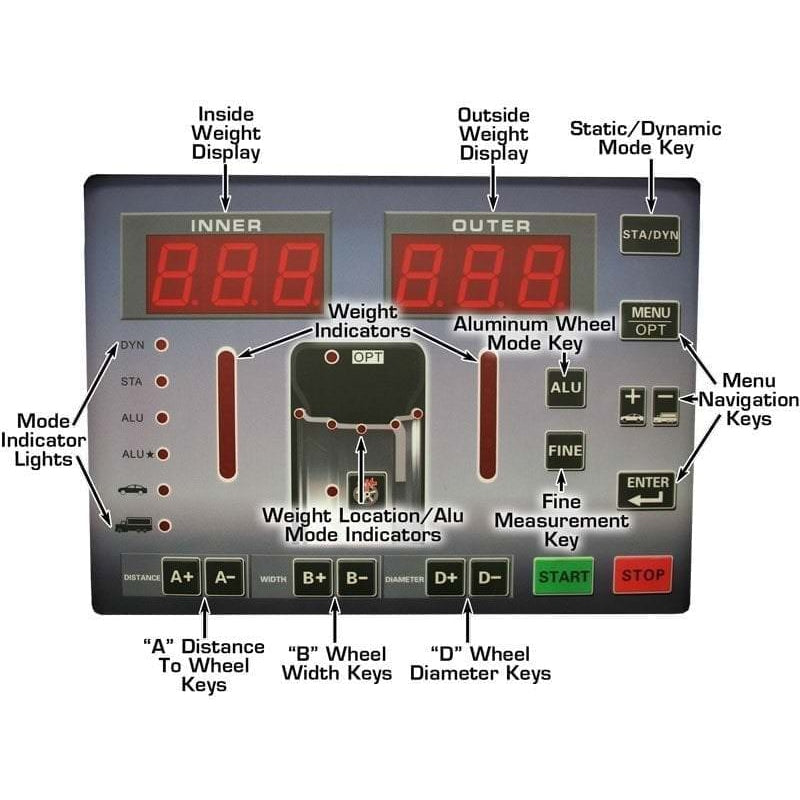

Displays weight in grams or ounces, and measurements in mm or inches
-
Wheel weight pliers and wheel width calipers included
-
1-year parts-only warranty
Specifications
Atlas® TC301 Truck Tire Changer
| Specification | Details |
|---|---|
| Rim Clamping Range | 13″ – 27″ |
| Minimum Clamping Size w/ Alloy Adapters | 6 3/8″ |
| Max Wheel Weight | 3,300 lbs. |

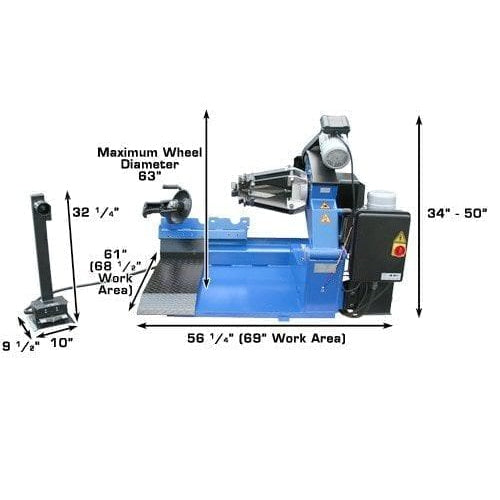

| Max Tire Diameter | 63″ (5′ 3″) |
| Max Tire Width | 30 1/2″ (2′ 6 1/2″) |
| Clamping Power | 6,614 lbs. |
| Bead Breaker Force | 4,112 lbs. |
| Tool Arm/Head Positioning | Manual |

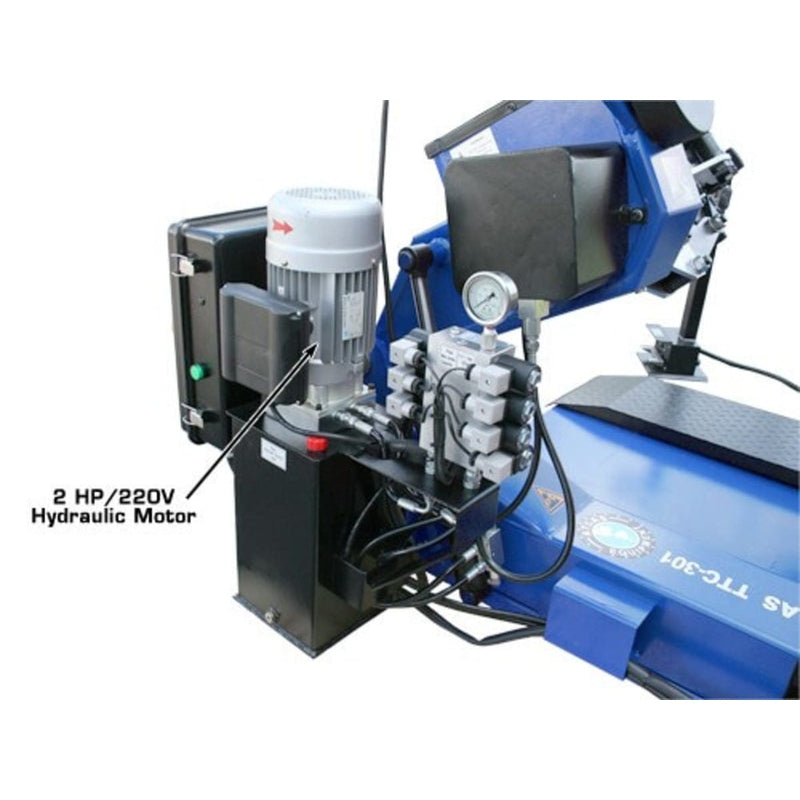

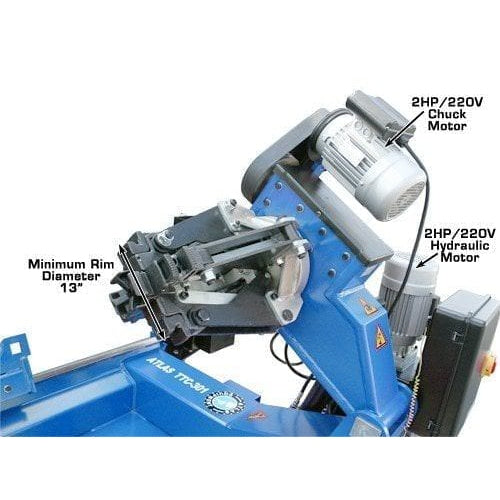

| Hydraulic Motor Power | 2 HP, 220V, 1-phase, 30 amp breaker |
| Chuck Motor Power | 3 HP, 220V, 1-phase, 30 amp breaker |

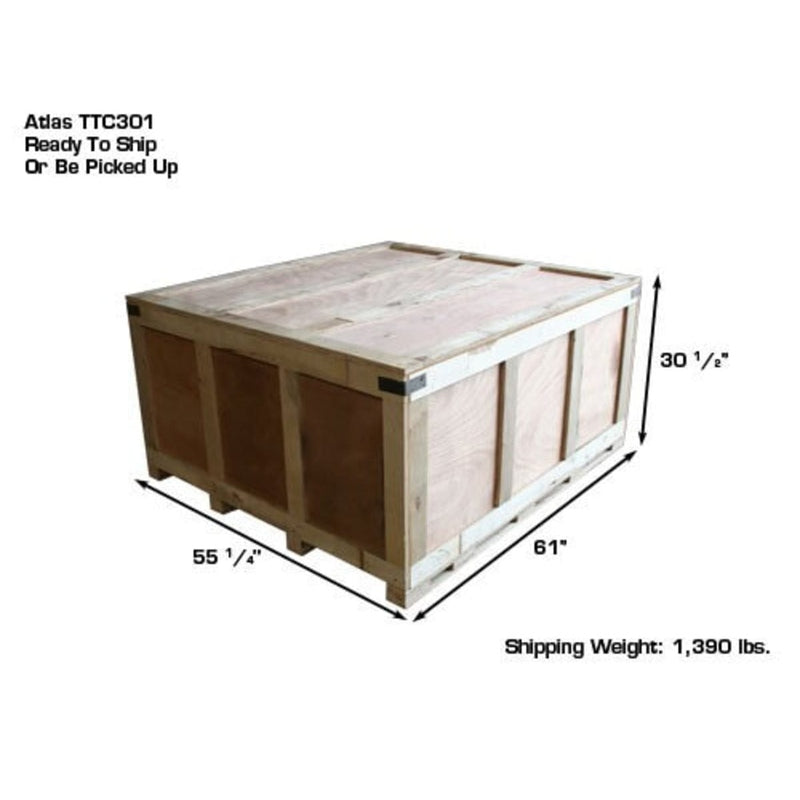

| Shipping Weight | 1,390 lbs. |
Atlas® WBT-210 Wheel Balancer
| Specification | Details |
|---|---|
| Max Tire Diameter | 47″ |
| Rim Sizes (Car & Light Trucks) | 10″ – 32″ |
| Rim Width | 1 1/2″ – 20″ |
| Shaft Size | 40mm |
| Max Wheel Weight | 440 lbs. |
| Balancing Speed | 150 rpm (Car/Light Truck Mode), 90 rpm (Truck Mode) |
| Accuracy | 1g (Car/Light Truck Mode), 10g (Truck Mode) |
| Self Calibration | Yes |
| Motor | 1/3 HP |
| Air Requirement | 115-140 PSI (must not exceed 140 PSI) |
| Power Supply | 220V, 1-phase, 30 amp breaker required |

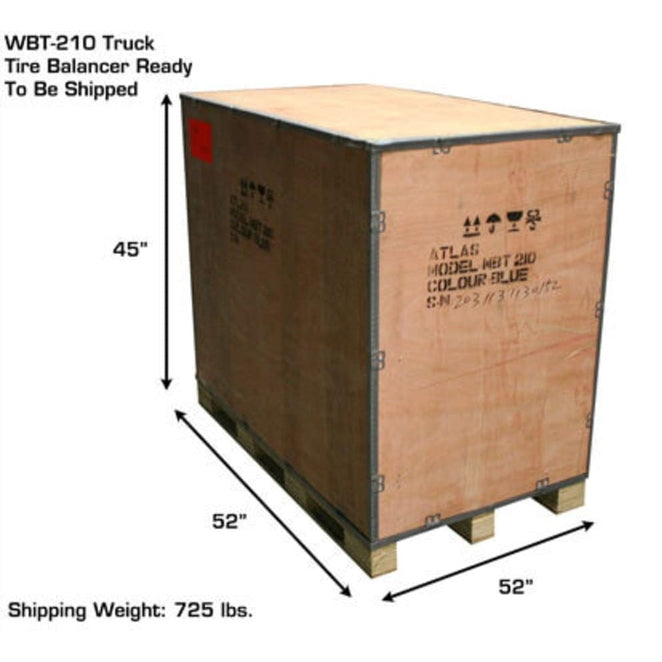

| Shipping Weight | 725 lbs. |
