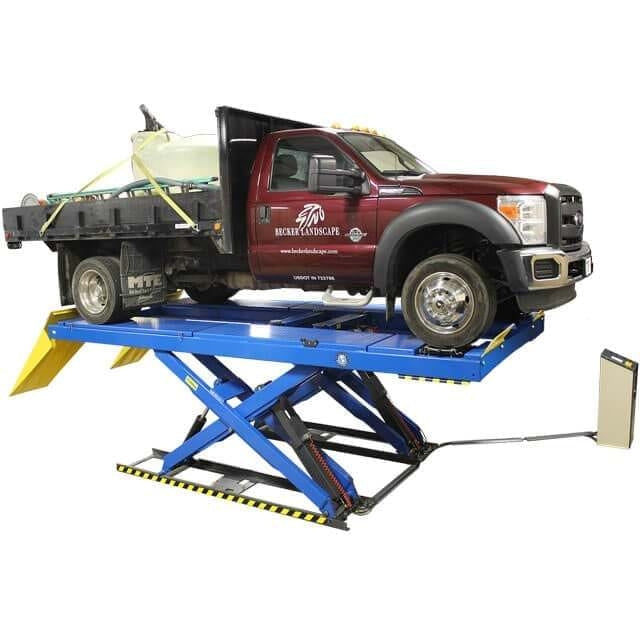

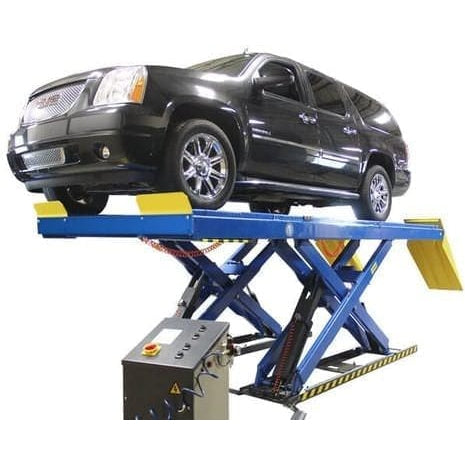

AtlasĀ® PX16A 16,000 lb. Capacity Scissor Alignment Lift

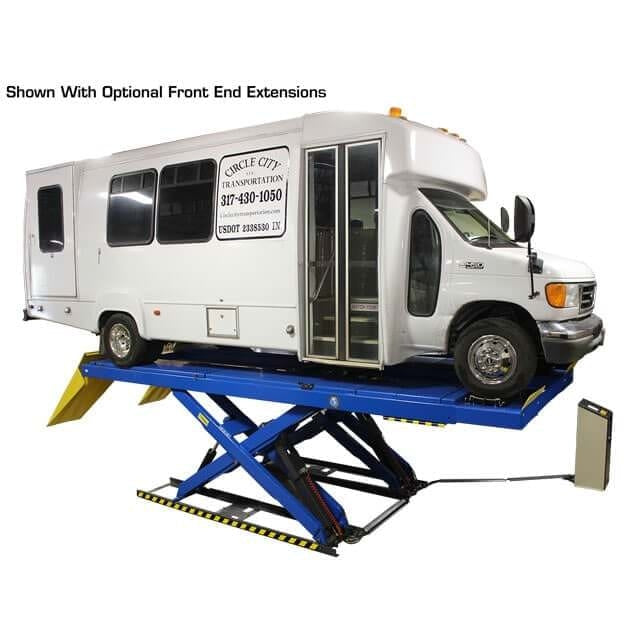

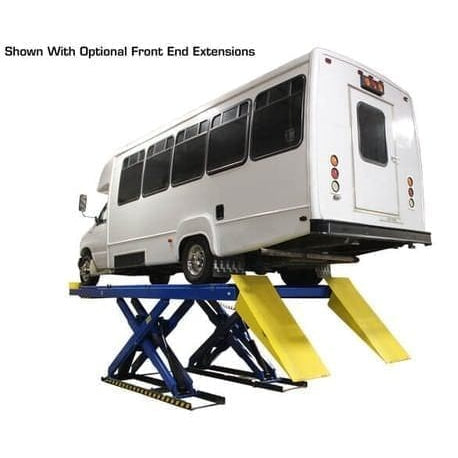

The AtlasĀ® PX16A Scissor Alignment Lift is the ultimate solution for service shops in need of a space-saving, narrow-width lift that accommodates a wide variety of vehicles, from passenger cars to heavy-duty long-wheelbase trucks and vans. With a 16,000 lb. lifting capacity, the PX16A is the ideal choice for those looking to perform precise 4-wheel alignments on vehicles with wheelbases ranging from 96 inches to 184 inches.

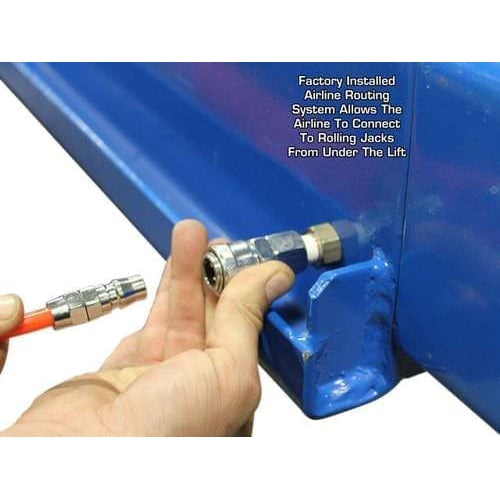

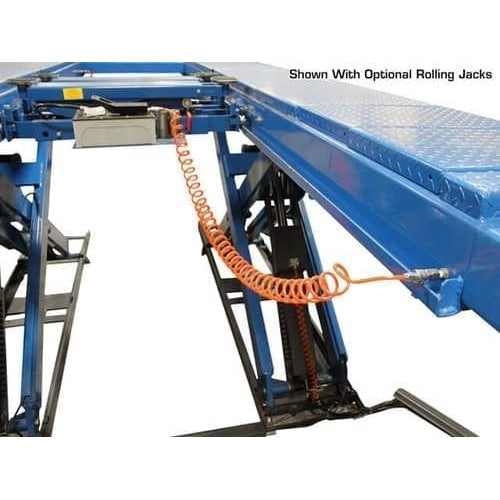

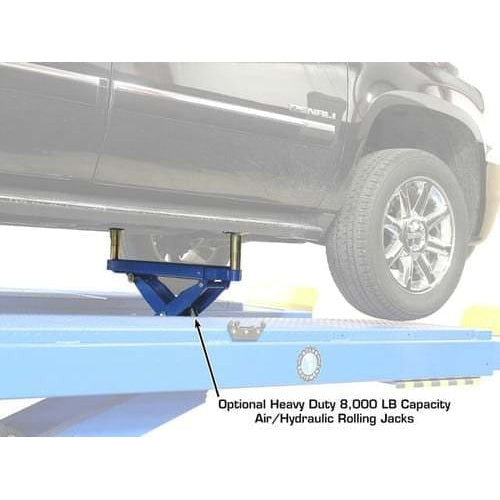

This versatile lift comes equipped with turntables, built-in slip plates, and runway jack rails for seamless integration with optional rolling jacks, such as the AtlasĀ® RJ8000BK. To reduce clutter, the lift features a semi-enclosed airline kit routing system, which accommodates an optional airline kit, providing air to the rolling jacks and keeping shop air hoses off the floor.
Whether you're servicing passenger cars or larger trucks, the AtlasĀ® PX16A ensures smooth operation, precision, and durability.
Key Features
-
16,000 lb. Capacity
Heavy-duty design for a wide range of vehicles, from passenger cars to larger trucks and vans. -
Commercial-Grade Construction
Built to withstand the demands of high-volume service shops. -
Scissor Lift Design
Offers efficient use of space with a narrow width, ideal for shops with limited floor space. -
Super-Balanced Platform Leveling
Ensures precise alignment with excellent platform leveling accuracy. -
Built-in Slip Plates & Alignment Turntables
Facilitates smooth, easy 4-wheel alignments. -

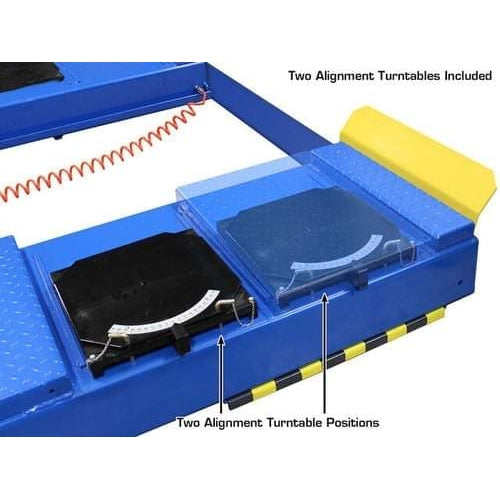

Recessed Positions for Turntables
Keeps everything in place for a neat, organized workspace. -

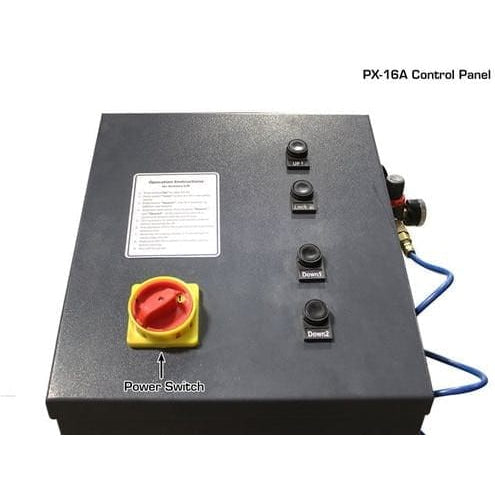

Separate Self-Contained Control Unit
Allows for simple, intuitive operation. -

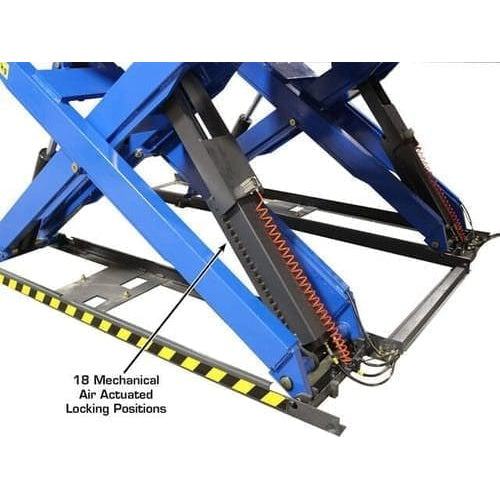

Air Operated Mechanical Safety Locks
Requires an external air supply (90-120 PSI) for secure locking during operation. -
Emergency Manual Pump
Ensures easy lowering in the event of air pressure loss. -
Overload Valve
Protects the system from overload conditions. -
Lowering Speed Valve
Controls the descent speed for added safety and precision. -
Mounting Hardware Included
Simplifies installation and setup. -

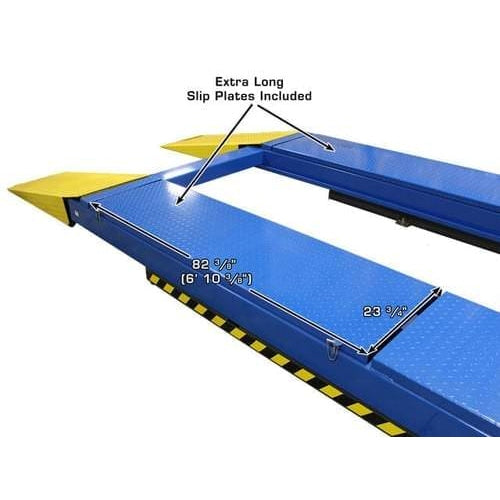

Extra Long Slip Plates
Accommodates 4-wheel alignment on vehicles with wheelbases from 96" to 184". -

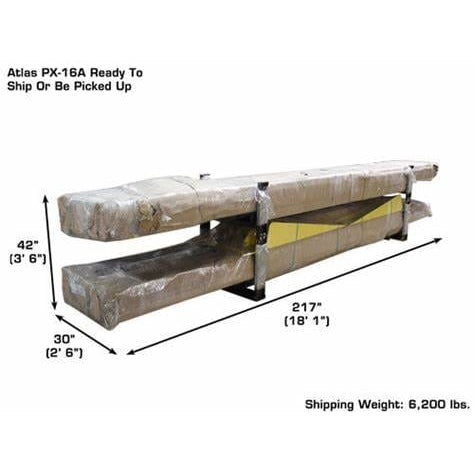

Shipping Weight: 6,200 lbs.
Requires a minimum of 6" thick concrete with a 3000 PSI rating for installation. -
Warranty:
-
2-Year Structural Warranty
-
1-Year Hydraulic Warranty (Parts Only)
-
Specifications
| Spec | Details |
|---|---|
| Lifting Capacity | 16,000 lb. |

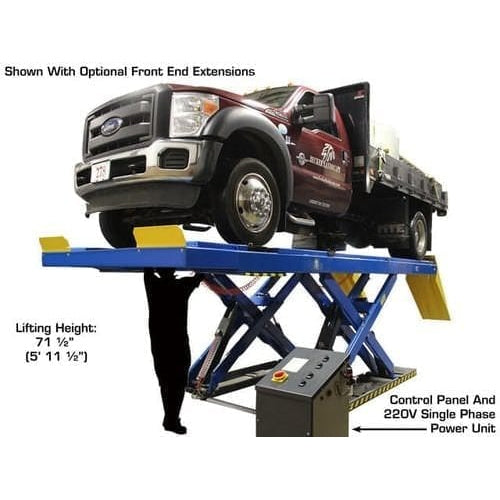

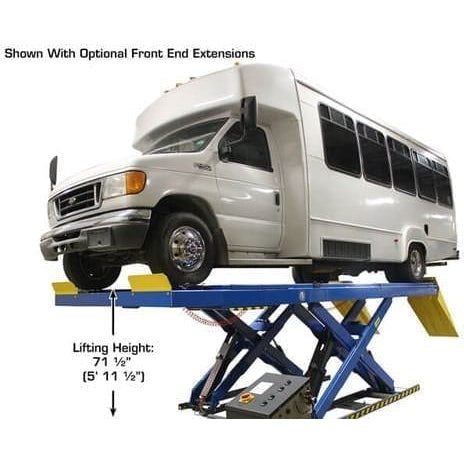

| Lifting Height | 71 1/2" (5' 11 1/2") |

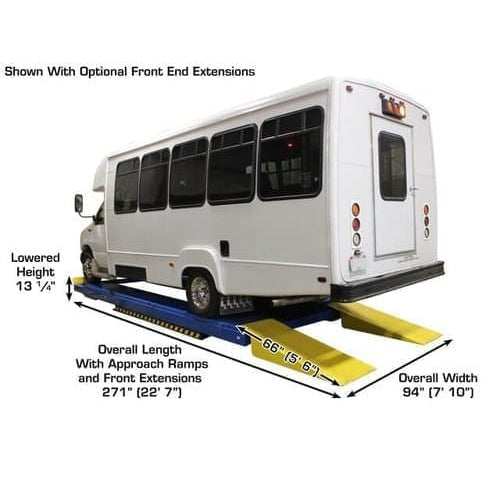

| Lowered Height | 13 1/4" |
| Overall Width | 94" (7' 10") |
| Overall Length with Approach Ramps | 271" (22' 7") |

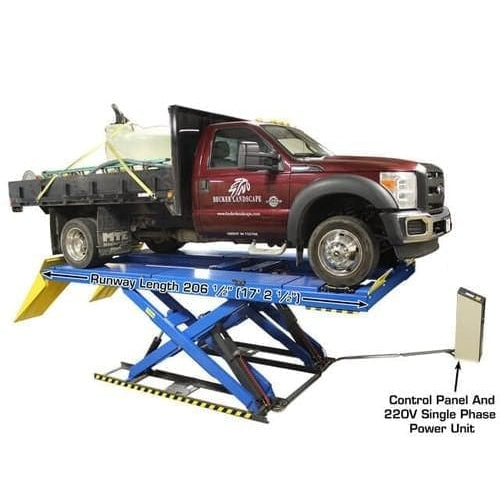

| Overall Length without Approach Ramps | 206 1/2" (17' 2 1/2") |
| Approach Ramp Length | 66" (5' 6") |

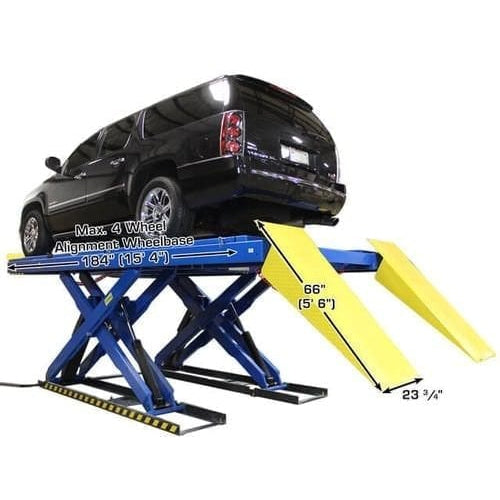

| 4-Wheel Alignment Wheelbase Max | 184" |
| 4-Wheel Alignment Wheelbase Min | 96" |
| Runway Width including Rail | 23 3/4" (1' 11 3/4") |
| Width Between Runways | 44 7/8" |

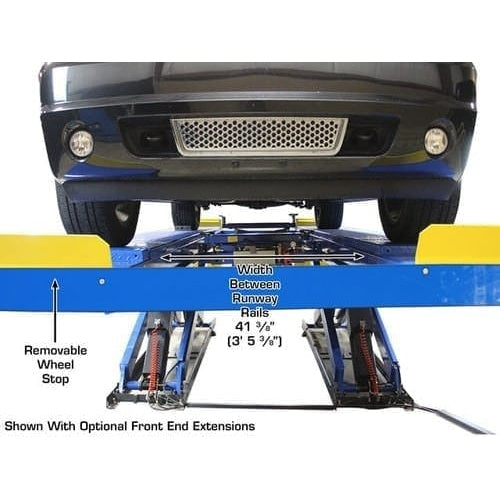

| Width Between Runway Rails | 41 3/8" |
| Air Requirement | 90-120 PSI |
| Motor/Electrical Requirement | 220V +/- 5%, Single Phase, 30 Amp Breaker Required |
| Oil Requirement | 3.5 Gallons AW32/AW46 |
| Shipping Weight | 6,200 lbs. |
