Atlas Platinum PVL14 4 Post Lift + RJ7000 Rolling Jacks ALI Certified Combo

The Atlas® Platinum PVL14 is a robust, four-post commercial-grade lift designed for the demands of professional auto shops. Capable of lifting a wide range of vehicles—from cars to trucks and even light-duty commercial vehicles—this heavy-duty lift ensures that your shop is always equipped for the job.

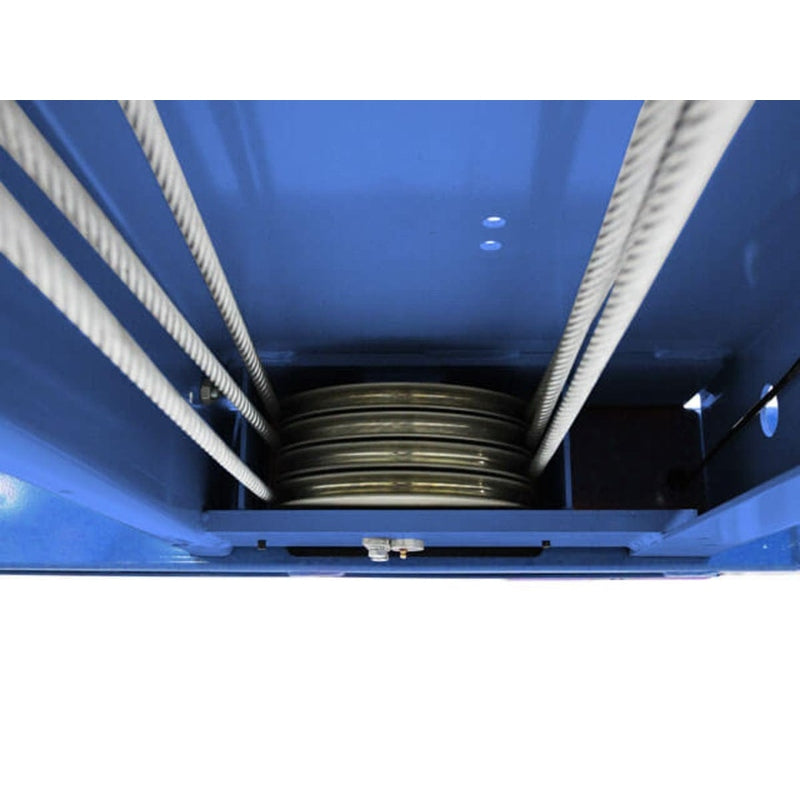

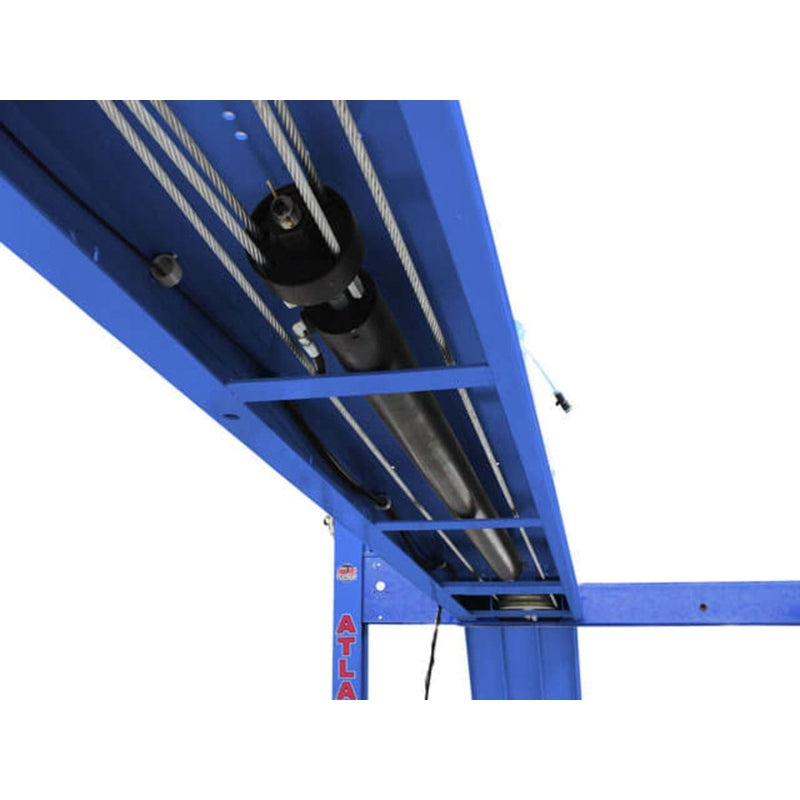

Featuring a high-strength cable system and a heavy-duty hydraulic cylinder located under the runway, the PVL14 avoids common issues faced by old chain-based lifts with exposed cylinders. These outdated systems make leveling difficult and contribute to vehicle damage.

Certified by ALI, the Atlas® Platinum PVL14 guarantees reliability and safety, backed by one of the industry’s most comprehensive warranties.

This combo package also includes two Atlas® Platinum RJ7000 Rolling Bridge Jacks—perfect for lifting vehicles off the runway to service tires, brakes, and more.

Features

Atlas® Platinum PVL14:

• Capacity: 14,000 lbs.

• Heavy Duty & Commercial Grade: Built for demanding tasks, from light trucks to larger commercial vehicles.

• Extra Tall, Extra Wide, Extra Long: Offers ample space for a wide range of vehicles.

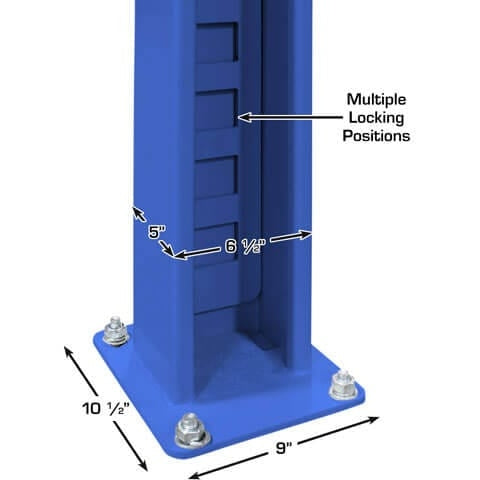

• Adjustable Lock Ladder Design: For easy operation and secure locking.

• Powder Coat Finish: Ensures durability and long-lasting quality.

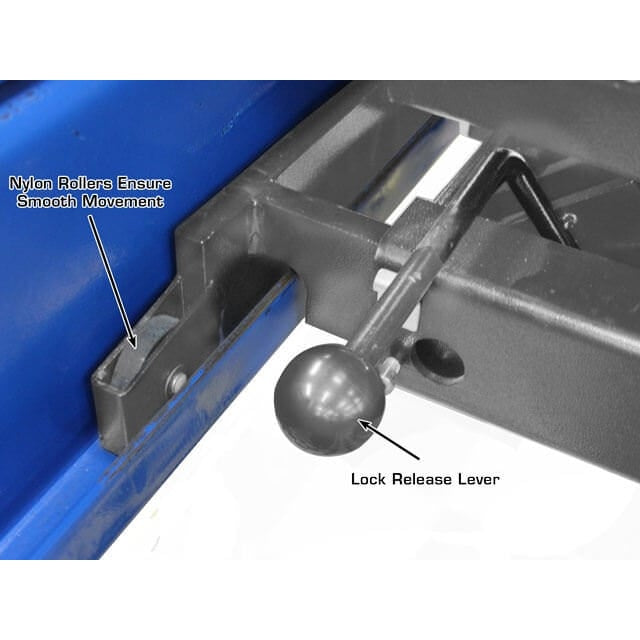

• Air Operated Single Point Lock Release: External air supply required.

• Steel Approach Ramps Included: For easy vehicle loading and unloading.

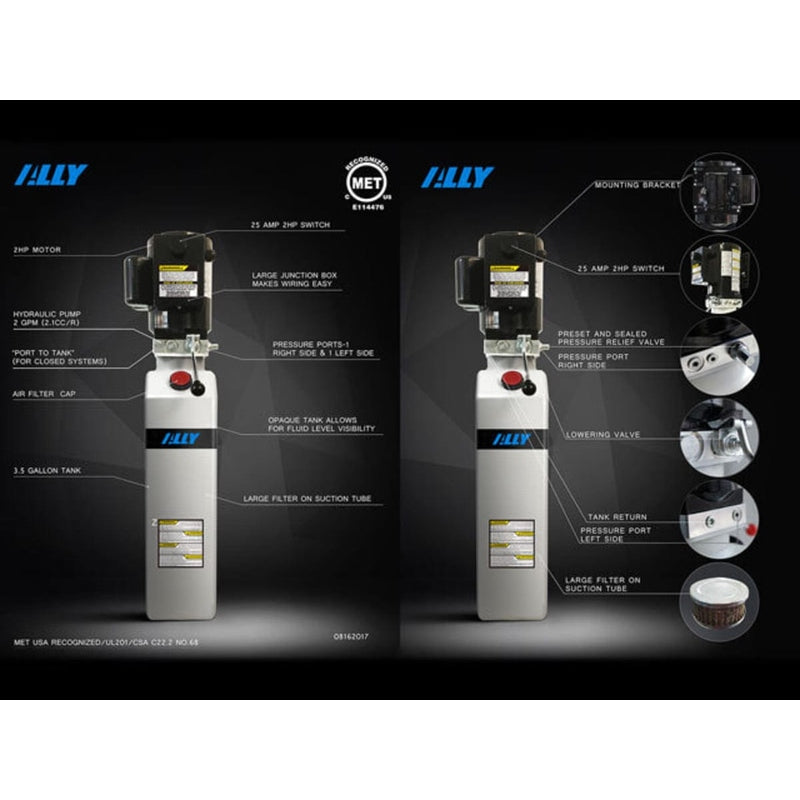

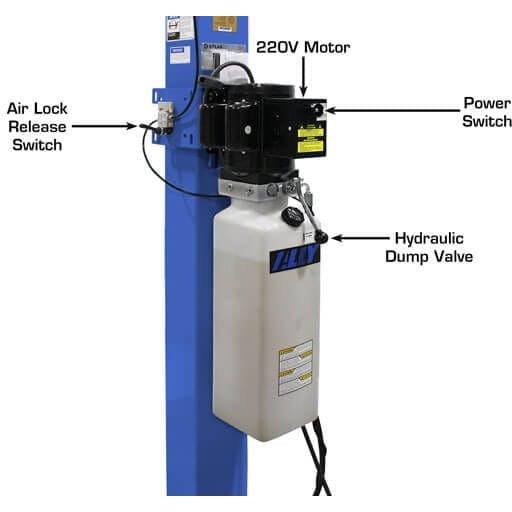

• Premium ALLY Powerunit: Includes a high-quality hydraulic system for smooth, reliable operation.

• Electrical Requirements: 220 volt single-phase; 30-amp breaker required.

• Warranty: 5-year structural, 2-year hydraulic, and 2-year power unit warranty.

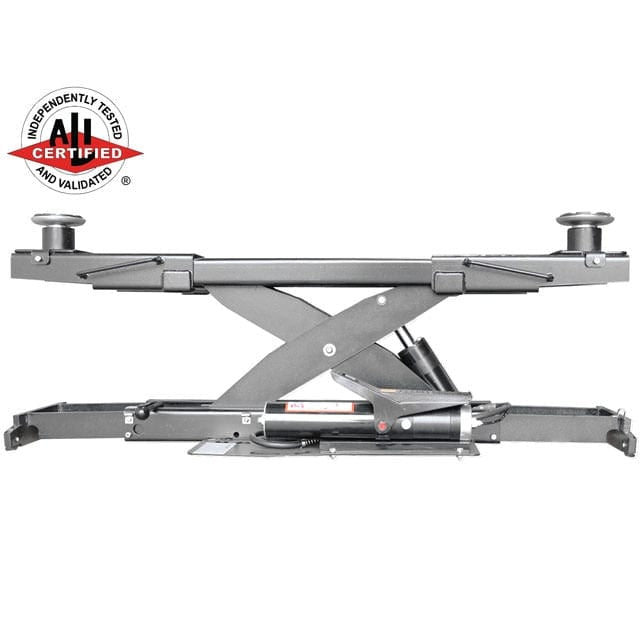

Atlas® Platinum RJ7000:

• Capacity: 7,000 lbs.

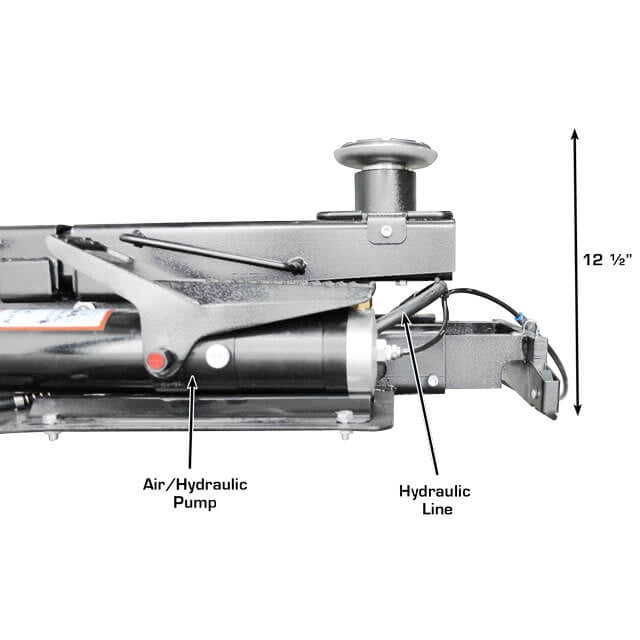

• Air/Hydraulic Operated: For smooth and efficient lifting.

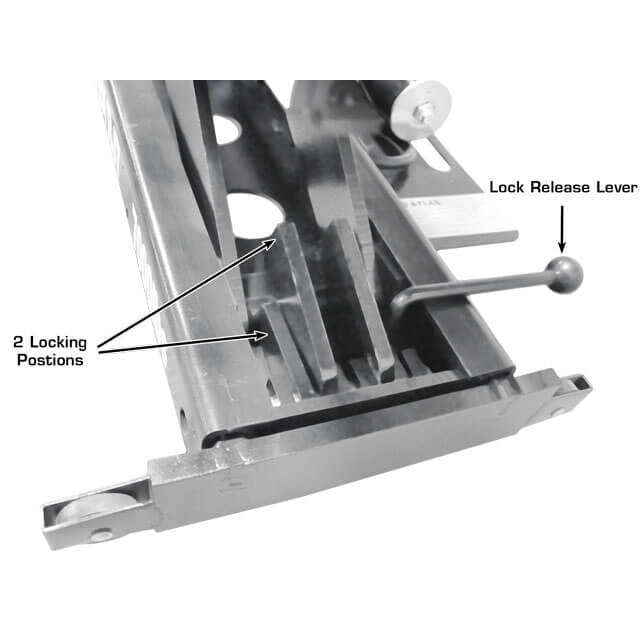

• Two Safety Lock Positions: Added safety for any task.

• Double Screw-Up Adapters: Included for versatile use.

• Compact & Low Profile: Designed for smooth, space-efficient operation.

• Warranty: 1-year parts only warranty.

Atlas® Platinum Alignment Kit:

• Includes Slip Plates and Turntables: Ideal for precise alignments.

• Durable Steel Roller Bearings: Provides smooth, reliable movement during alignments.

Specifications

Atlas® Platinum PVL14:

• Capacity: 14,000 lbs.

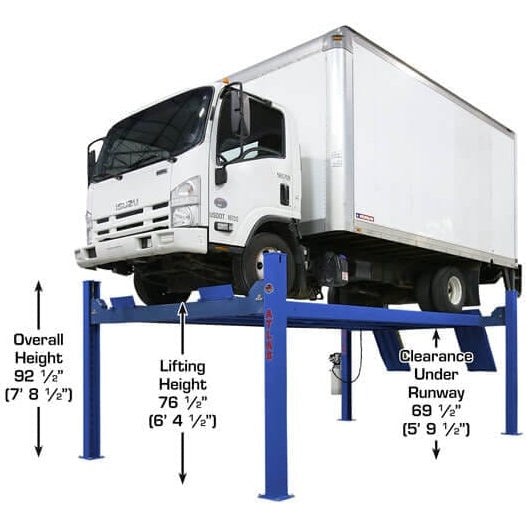

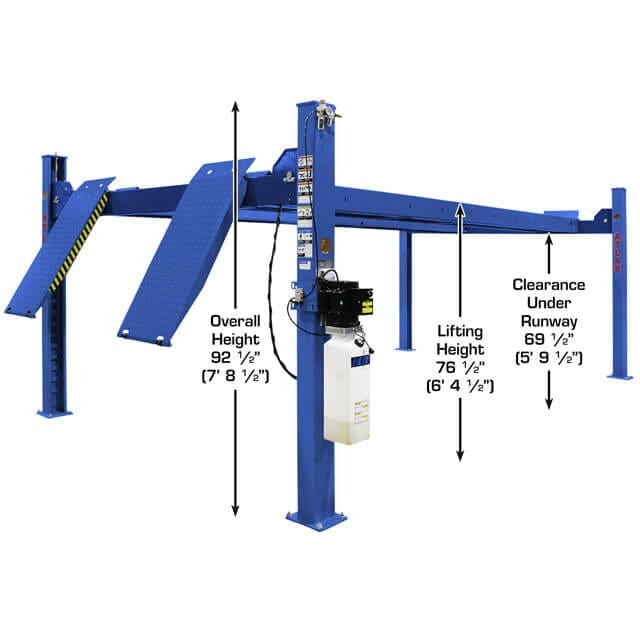

• Lifting Height: 76 1/2” (6’ 4 1/2”)

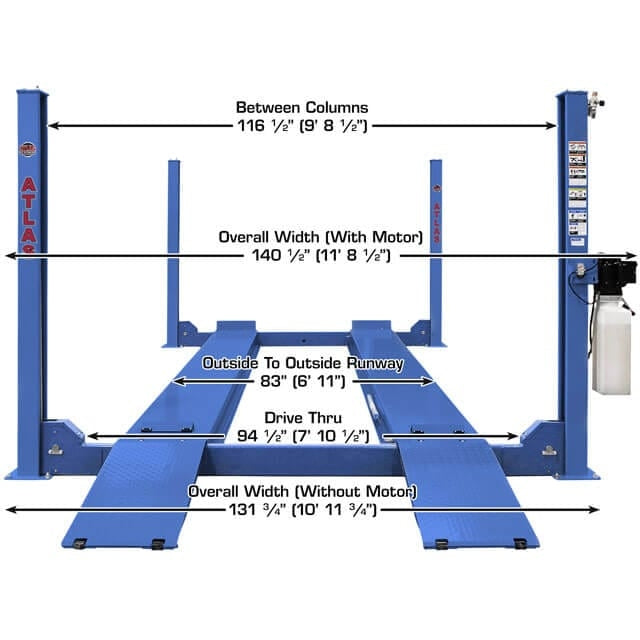

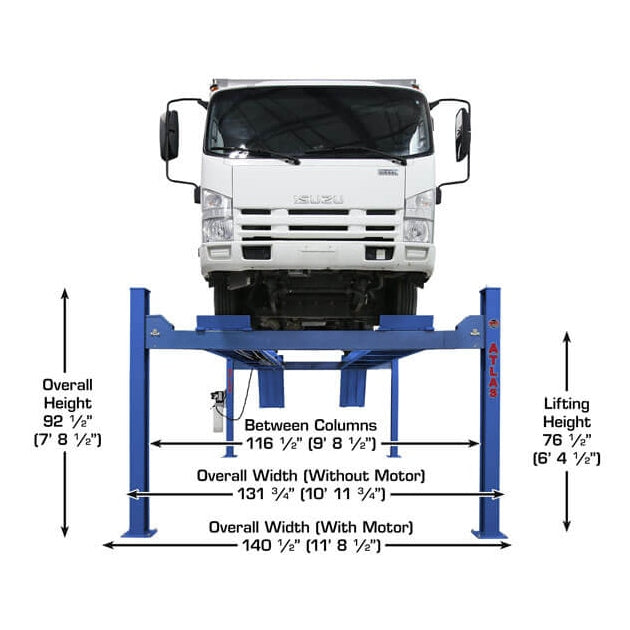

• Overall Width (Without Motor): 131 3/4” (10’ 11 3/4”)

• Overall Width (With Motor): 140 1/2” (11’ 8 1/2”)

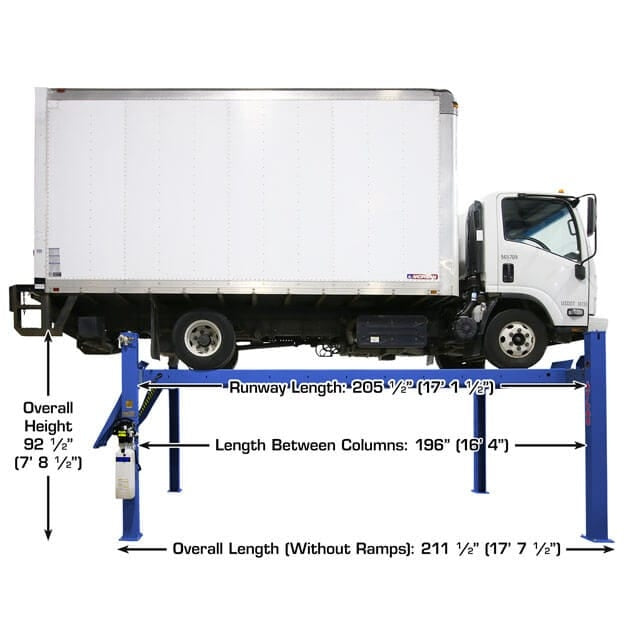

• Runway Length: 205 1/2” (17’ 1 1/2”)

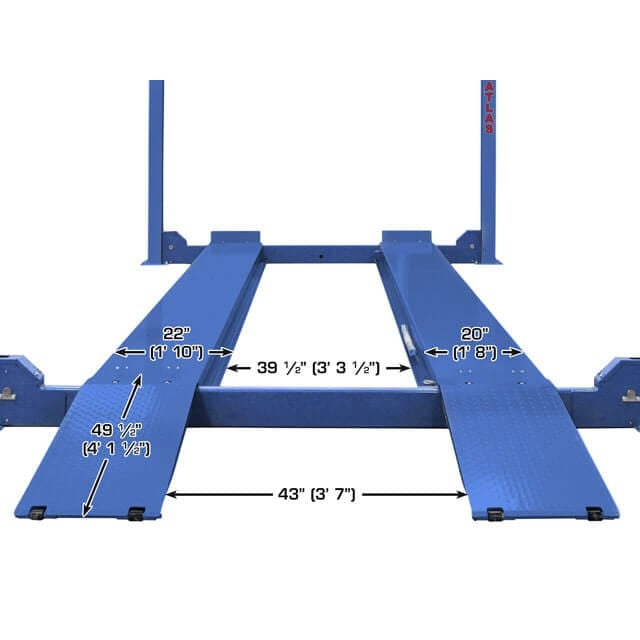

• Runway Width: 20”

• Height of Columns: 92 1/2” (7’ 8 1/2”)

• Maximum Wheelbase: 195” (16’ 3”)

• Drive Thru: 94 1/2” (7’ 10 1/2”)

• Air Requirement: 85-115 PSI (external air supply required)

• Motor/Electrical Requirement: 220 volt single-phase

• Oil Requirement: 3-5 gallons of AW32/AW46 (not included)

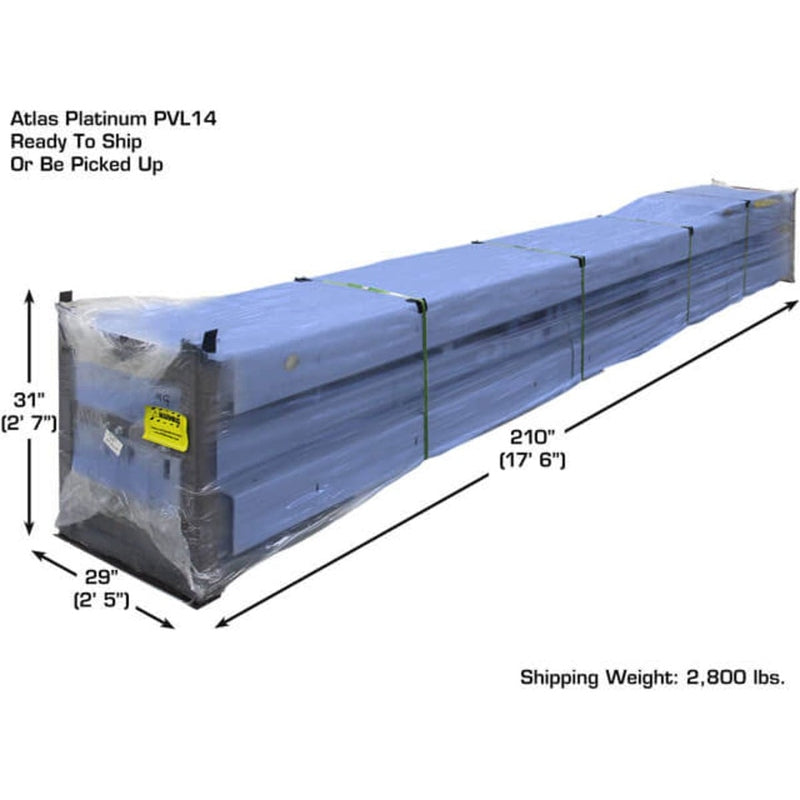

• Shipping Weight: 2,800 lbs.

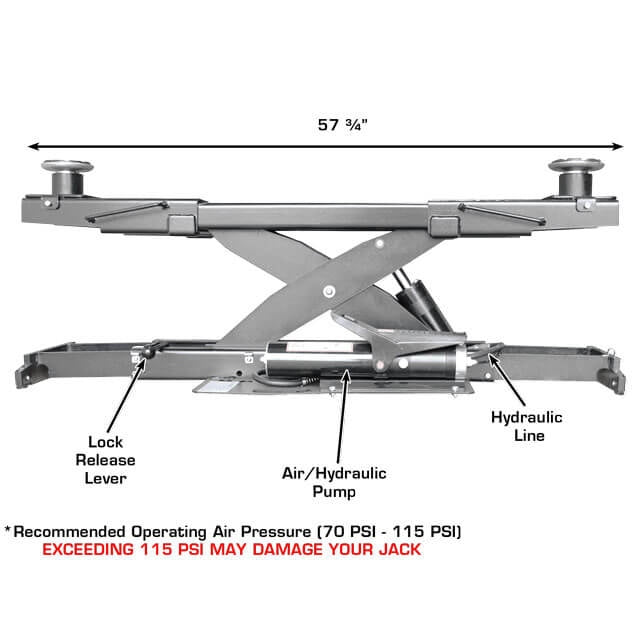

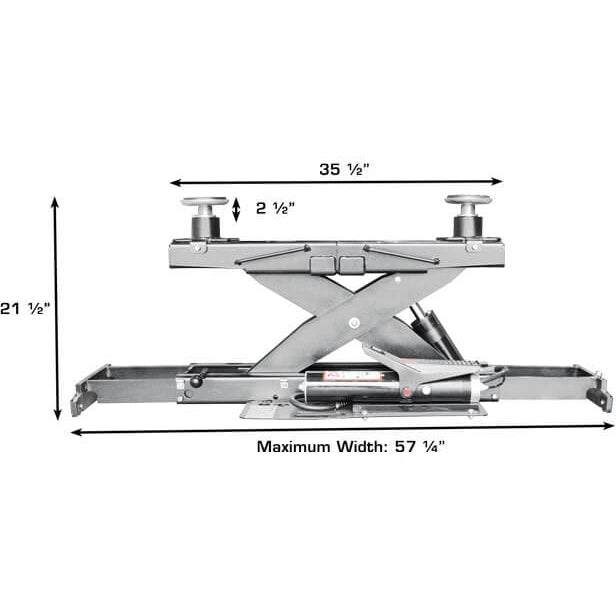

Atlas® Platinum RJ7000:

• Maximum Capacity: 7,000 lbs.

• Maximum Width: 45 1/2” (3’ 9 1/2”)

• Minimum Width: 36” (3’)

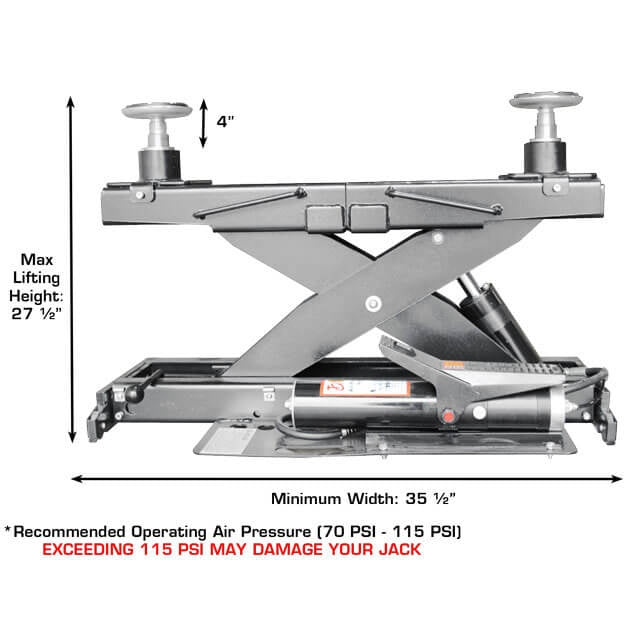

• Maximum Lifting Height (With Adapters): 27 1/2” (2’ 3 1/2”)

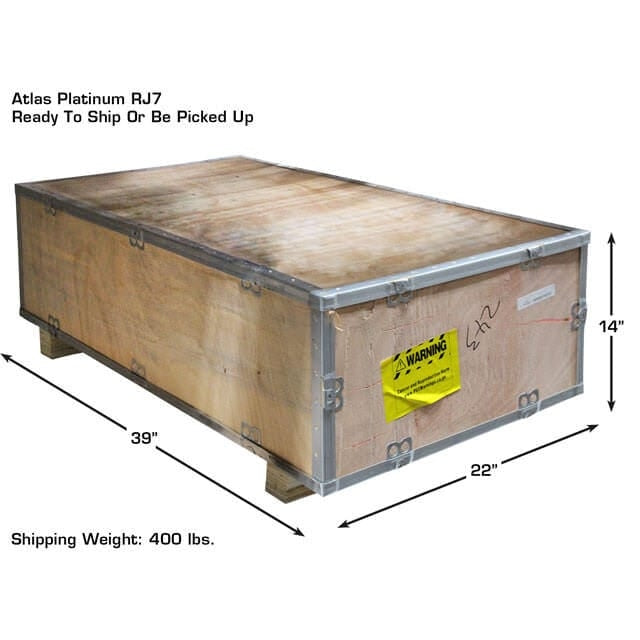

• Shipping Weight: 400 lbs.

Atlas® Platinum Alignment Kit:

• Capacity: 14,000 lbs.

• Overall Length: 199 1/3” (16’ 7 1/3”)

• Turntable Dimensions: 17 1/2” x 17 1/2” x 1 1/2”

• Shipping Weight: 1,100 lbs.

Documents

Atlas® Platinum PVL14 Manual

Atlas® Platinum RJ7000 Manual
