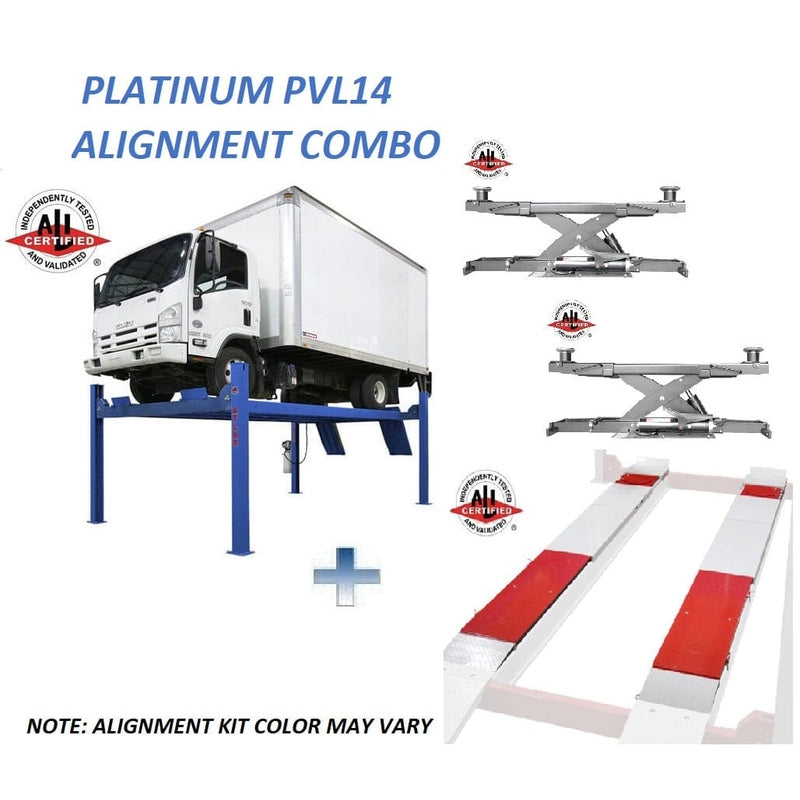

Atlas Platinum PVL14 4 Post Lift + RJ7000 & Alignment Kit ALI Certified Combo

The Atlas® Platinum PVL14 is a top-tier four-post commercial-grade heavy-duty lift, designed with professional shops in mind. It accommodates a wide range of vehicles, including cars, vans, SUVs, trucks, and some light to medium-duty commercial vehicles.

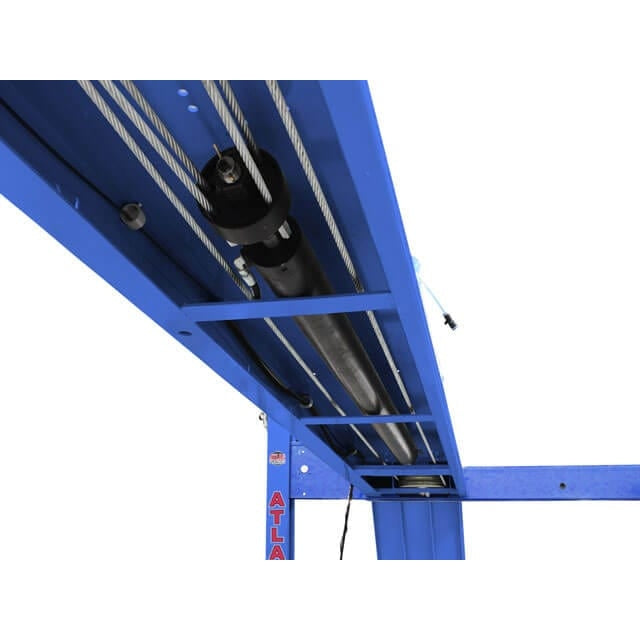

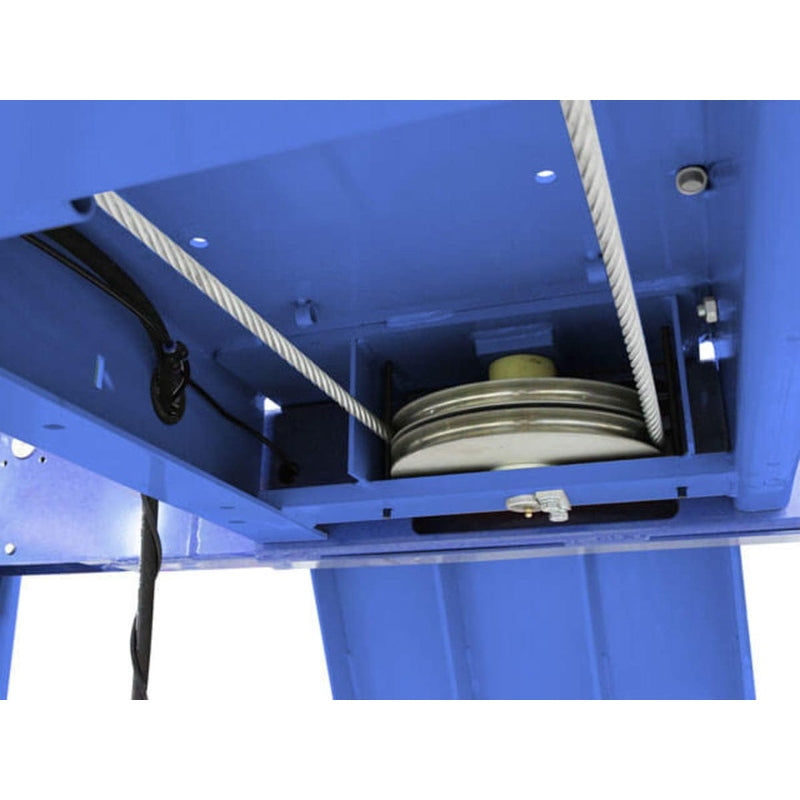

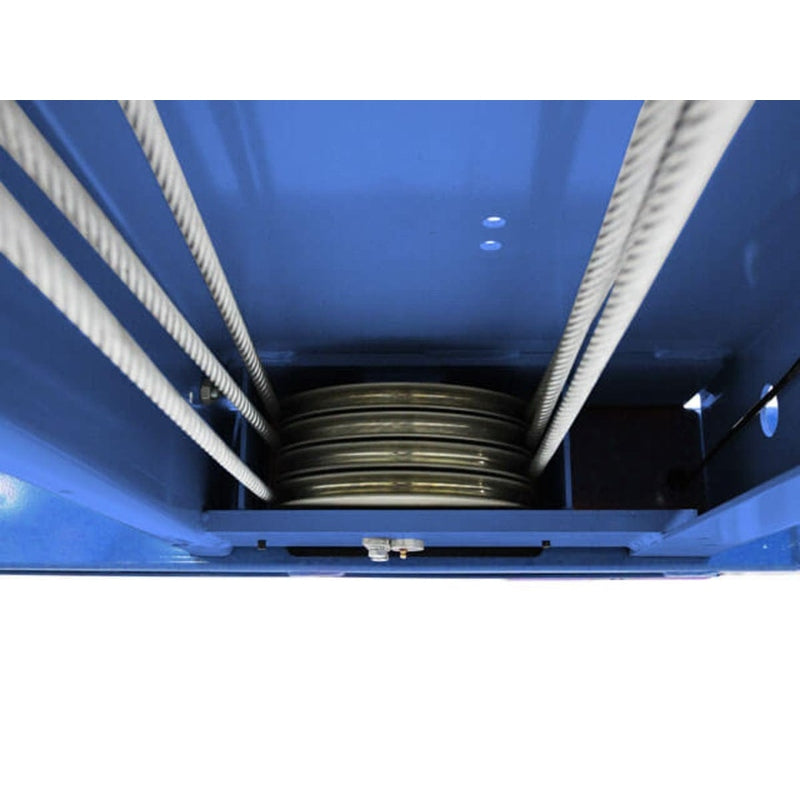

This lift utilizes a high-strength cable system paired with an oversized hydraulic cylinder under the runway, powered by a 220-volt (single-phase) power unit, making it smoother and more reliable than the old-style chain systems used by many competitors. Traditional chain lifts often struggle to level properly, and their exposed hydraulic cylinders can cause damage, including door dings. The Atlas® Platinum PVL14's advanced system ensures smoother operation and more precise leveling.

ALI certified and backed by one of the industry's best warranties, the Atlas® Platinum PVL14 is designed for durability and peace of mind.

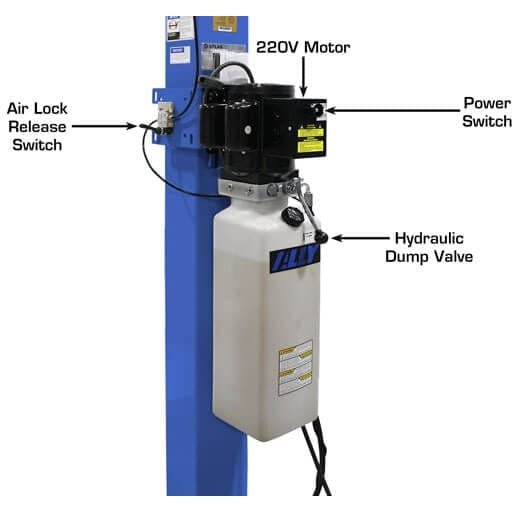

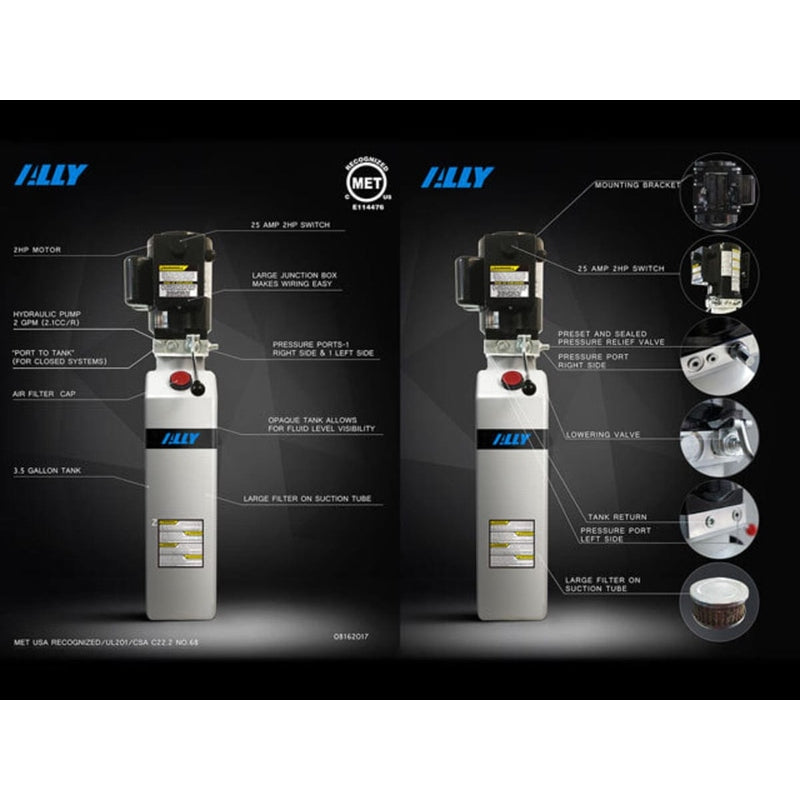

Included with the lift is the ALLY Hydraulic AL2650 power unit, certified by MET Laboratories Inc. for electrical compliance in both the U.S. and Canada. With upgraded motor windings and enhanced silver metal connections, this power unit reduces heat generation and ensures constant torque during the lifting process. It also features a 2-year limited warranty for added value.

This combo package also includes the ALI Certified Atlas® Platinum RJ7000 Rolling Bridge Jacks, ideal for raising a vehicle’s wheels off the lift’s runways, making tire and brake service even easier. The package is further enhanced with the ALI Certified Atlas® Platinum Bolt-on Alignment Kit, which includes slip plates, ramps, spacers, and turntables.

Features

PLATINUM PVL14:

• ALI Certified Lift

• 14,000 lb. Capacity

• Heavy Duty, Commercial Grade

• Extra Tall, Extra Wide, and Extra Long Design

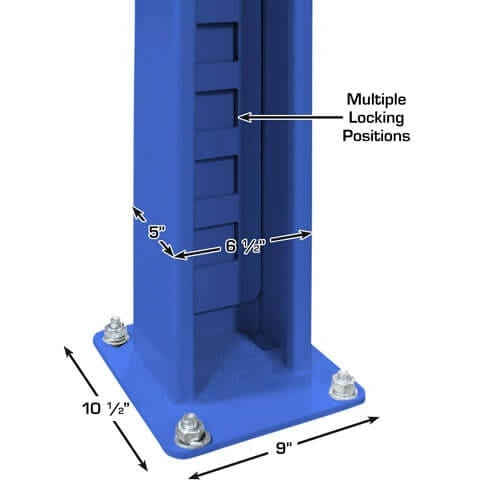

• Adjustable Lock Ladder Design

• Higher Quality Powder Coat Finish

• Air Operated Single Point Lock Release (External Air Supply Required)

• Double Lock Safety System

• Steel Approach Ramps Included

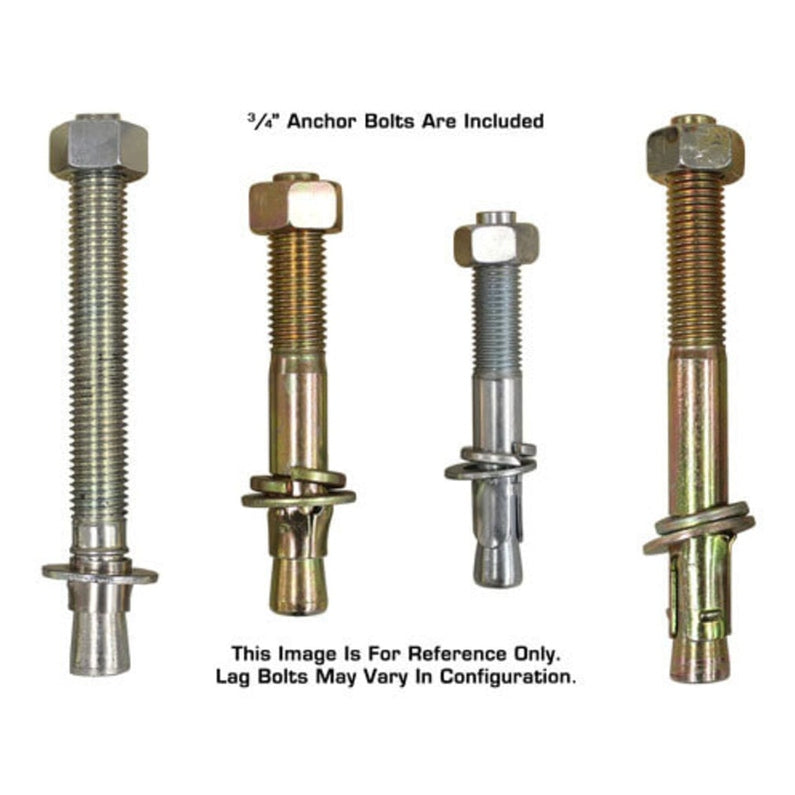

• Mounting Hardware Included

• Standard with Premium ALLY Powerunit

• 220V/1 Phase Electric Operation (Requires a 30-amp Breaker)

• Shipping Weight: 2,800 lbs.

• Warranty: 5-year Structural, 2-year Hydraulic, 2-year Powerunit

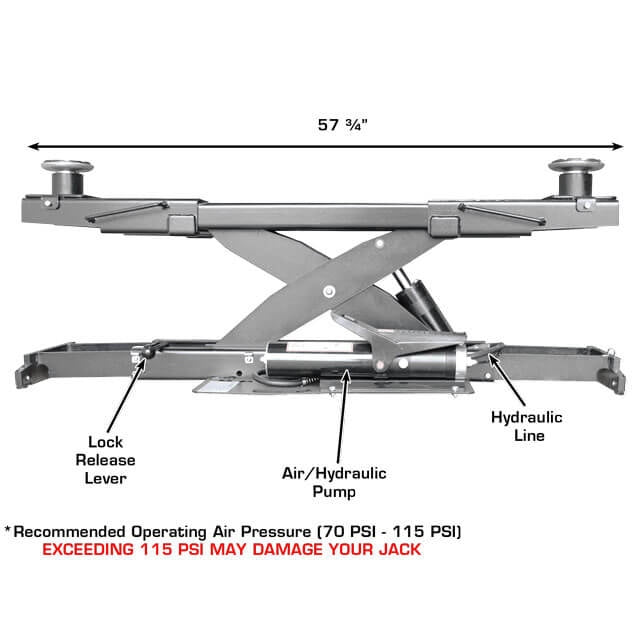

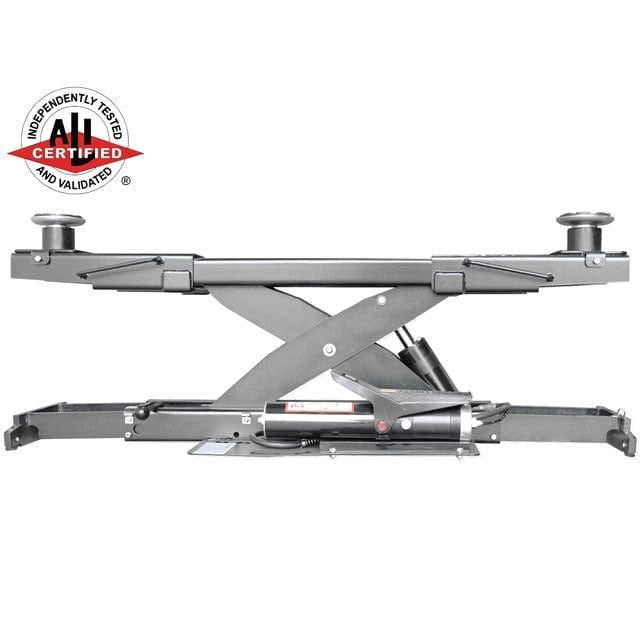

PLATINUM RJ7000:

• 7,000 lb. Capacity

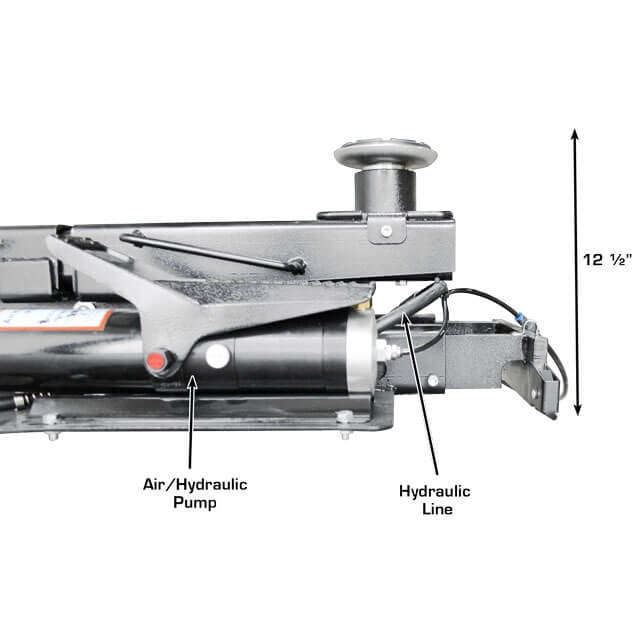

• Air/Hydraulic Operated

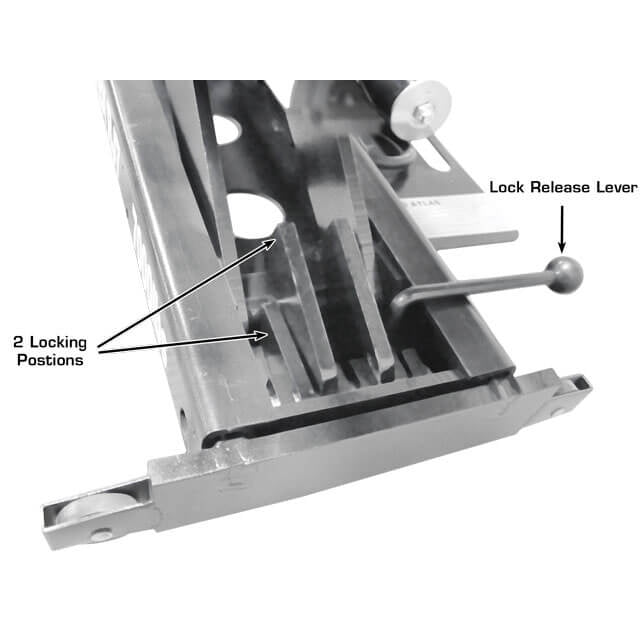

• Two Safety Lock Positions

• Double Screw-Up Adapters Included

• Compact Size with Low Profile

• Smooth Rolling Action

• Scissor Mechanism Allows for Level Lifting

• Powder Coated Finish

• 1-Year Parts Only Warranty

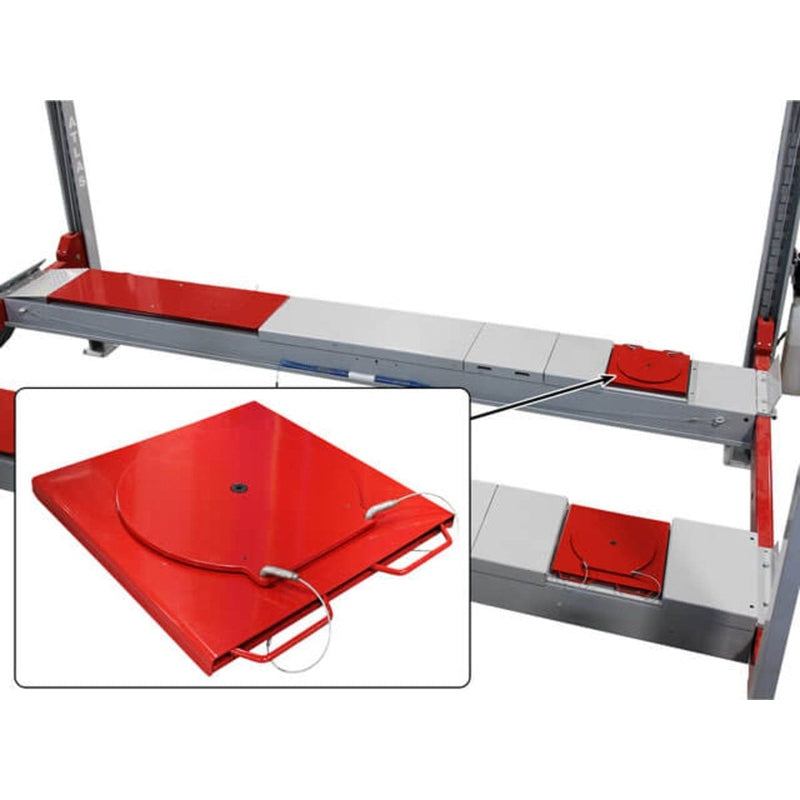

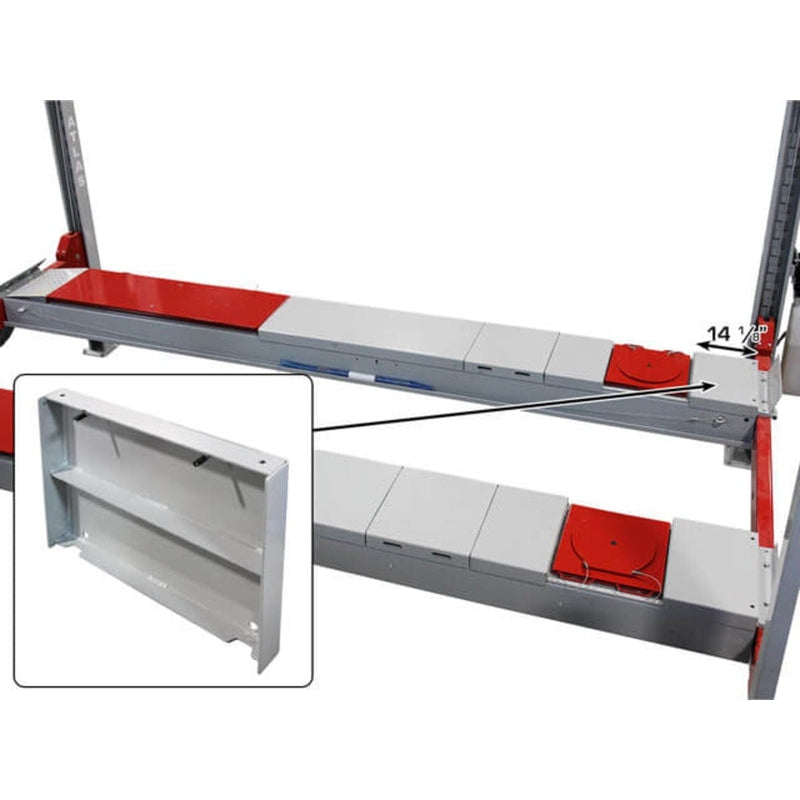

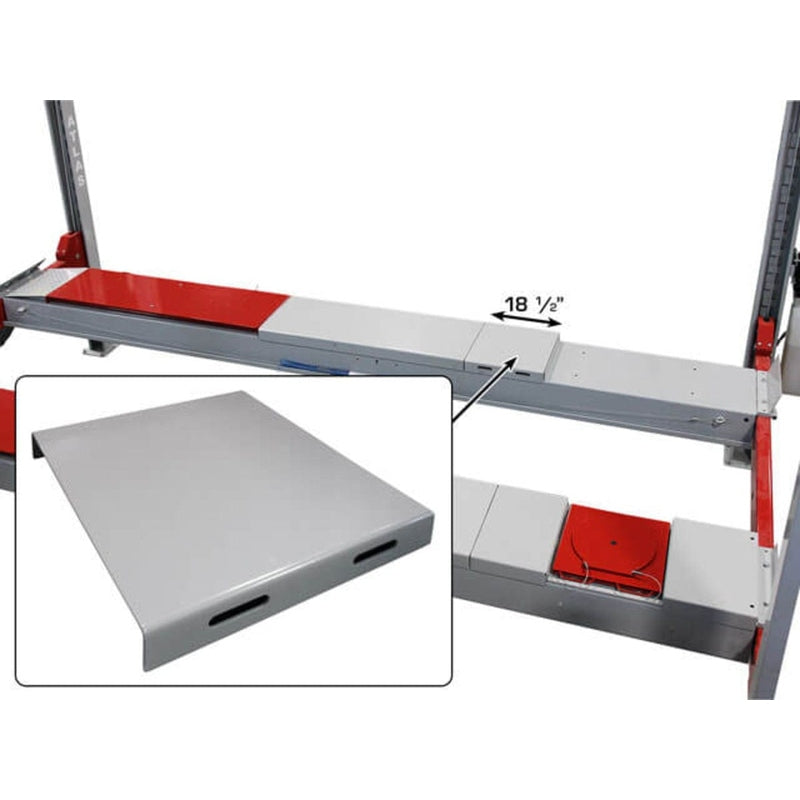

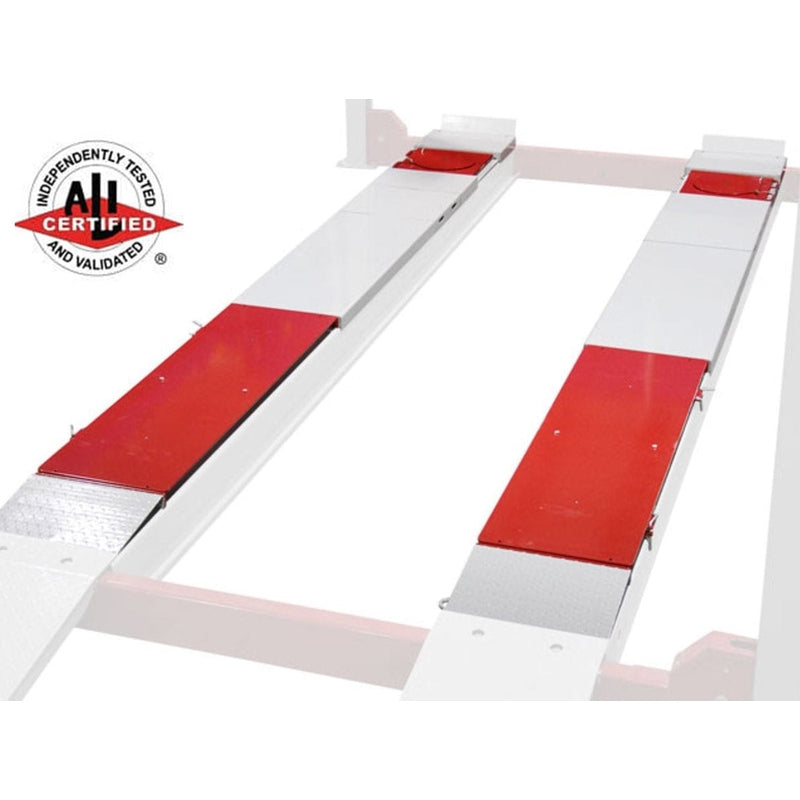

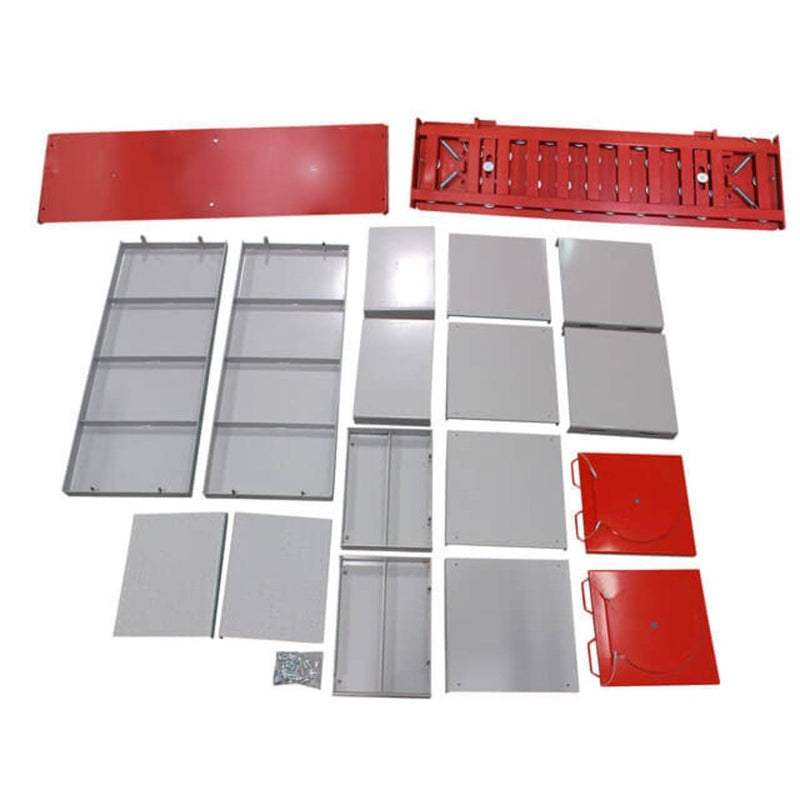

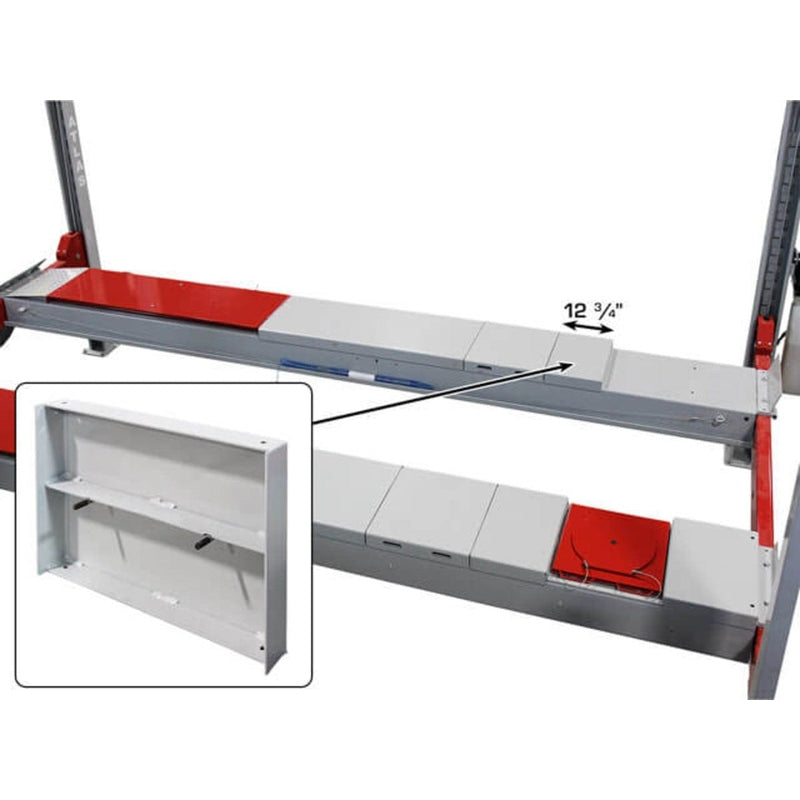

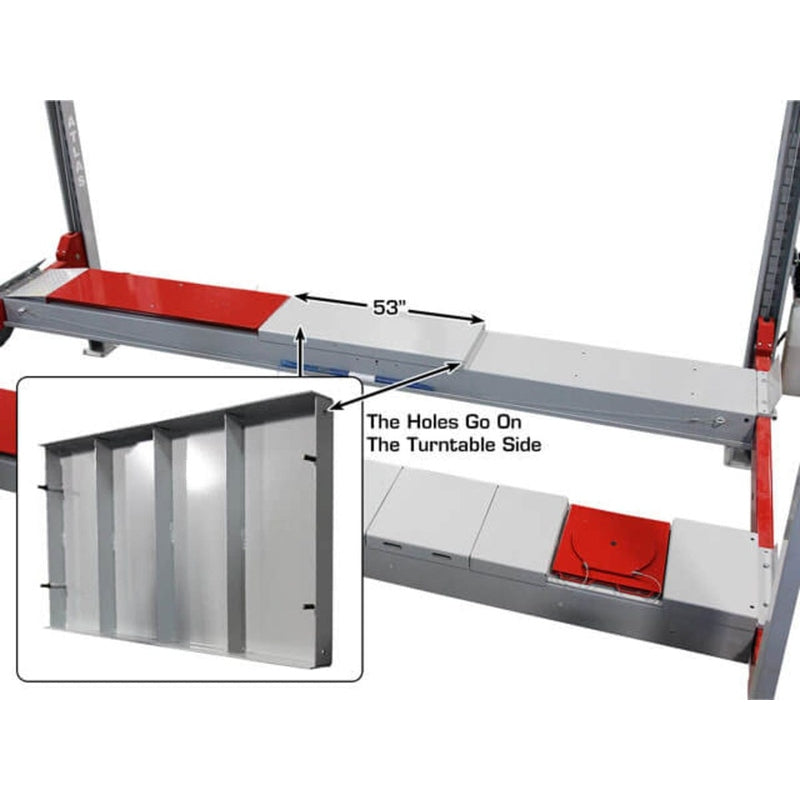

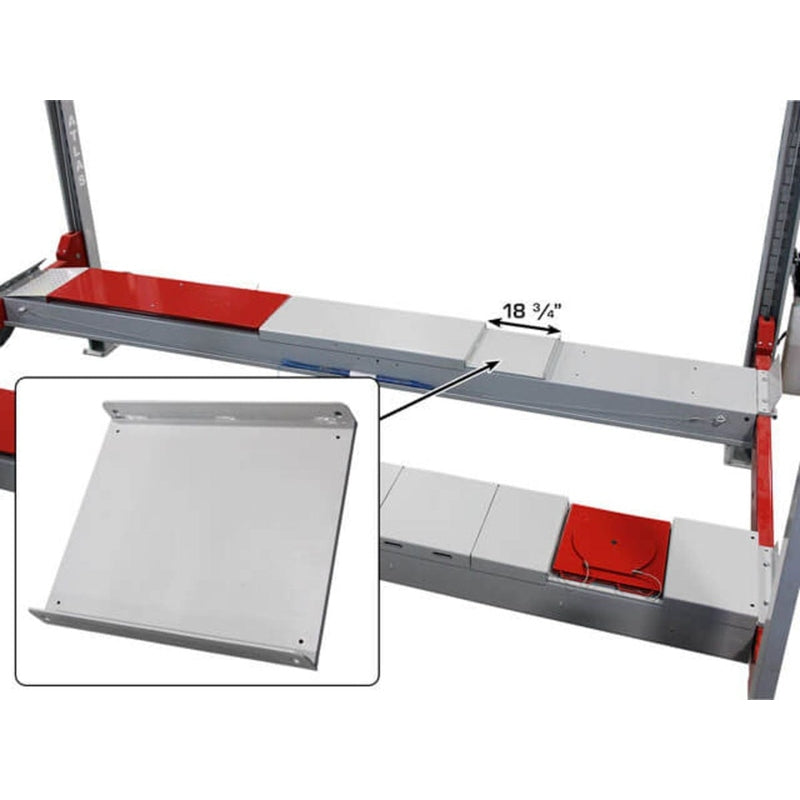

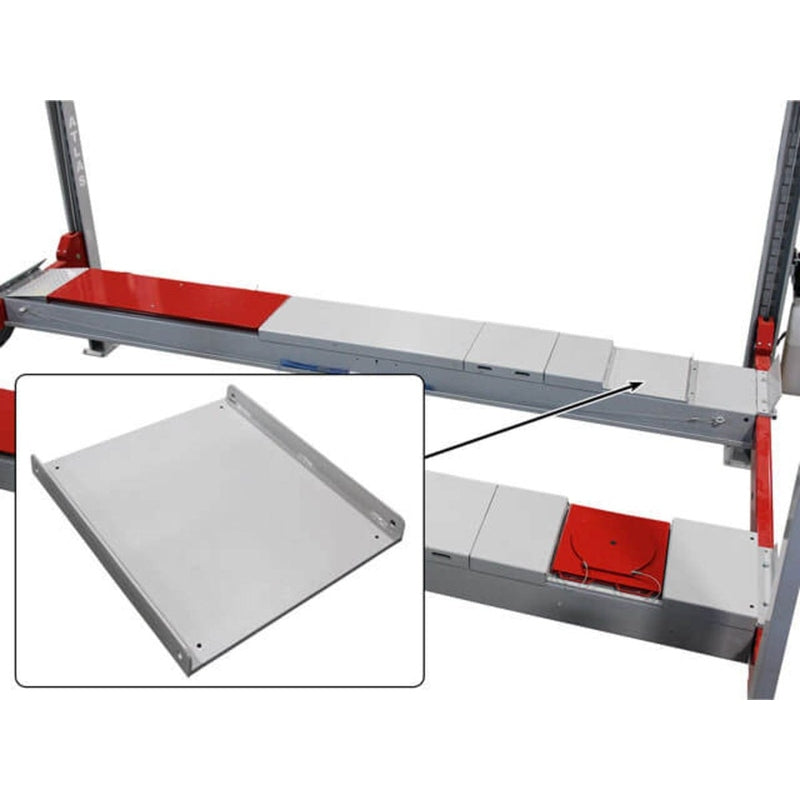

Platinum Alignment Kit:

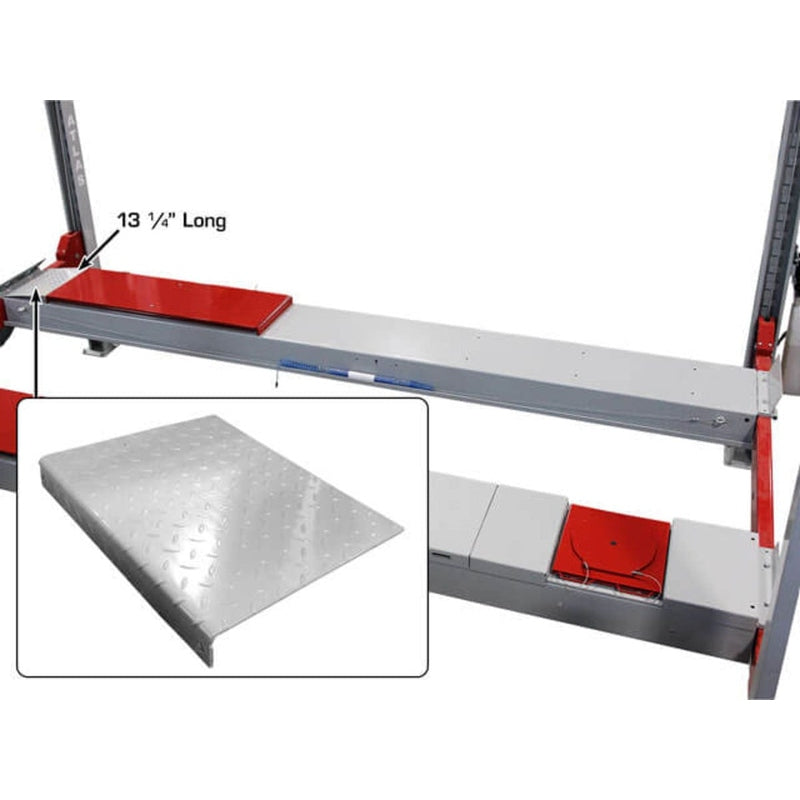

• Includes Slip Plates and Turntables

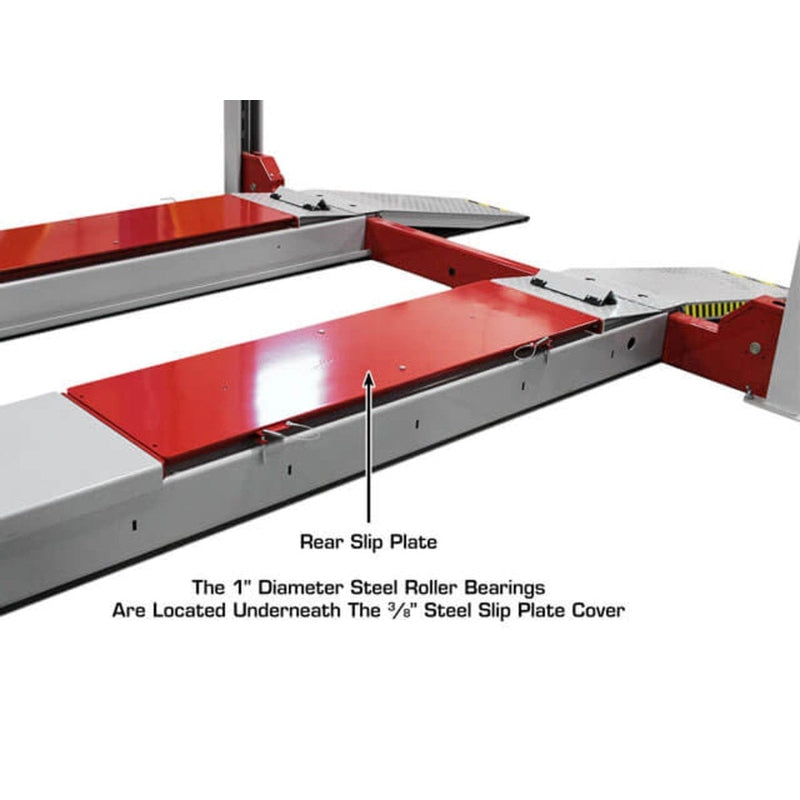

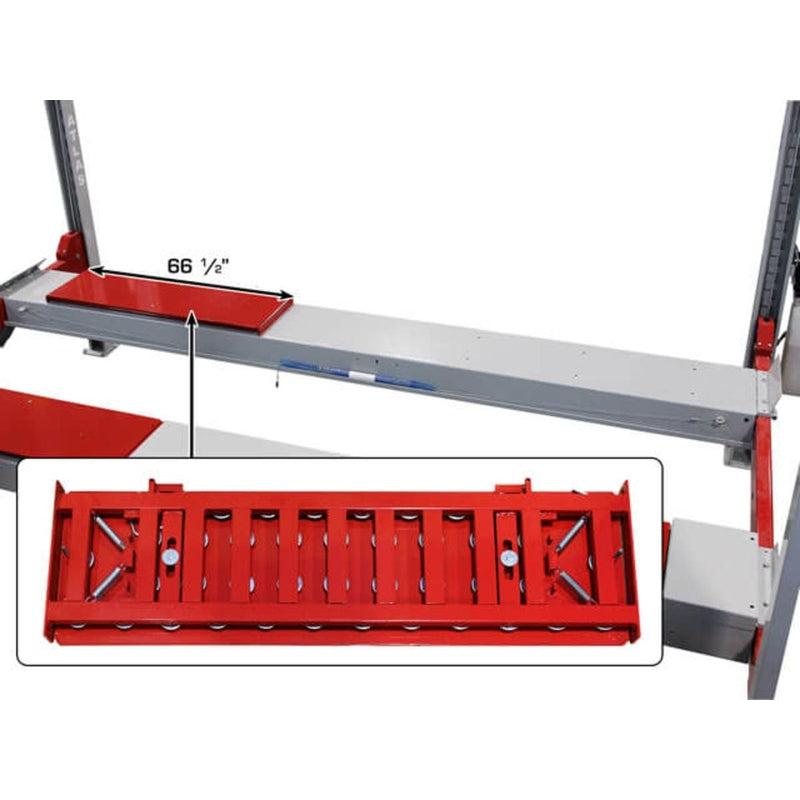

• 1” Diameter Steel Roller Bearings on Rear Slip Plate

• Can be Removed and Added as Needed

• Shipping Weight: 1,000 lbs.

• 1-Year Parts Only Warranty

Specifications

Atlas® Platinum PVL14 Specifications:

• Capacity: 14,000 lb.

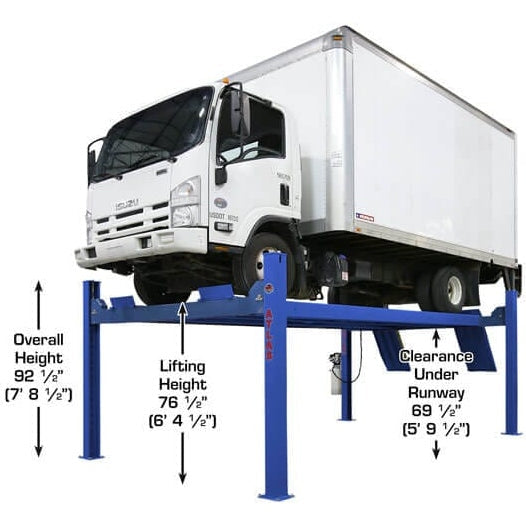

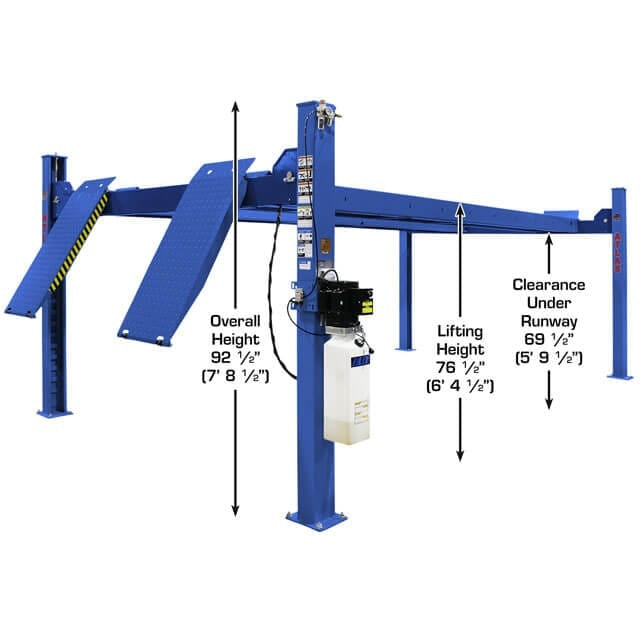

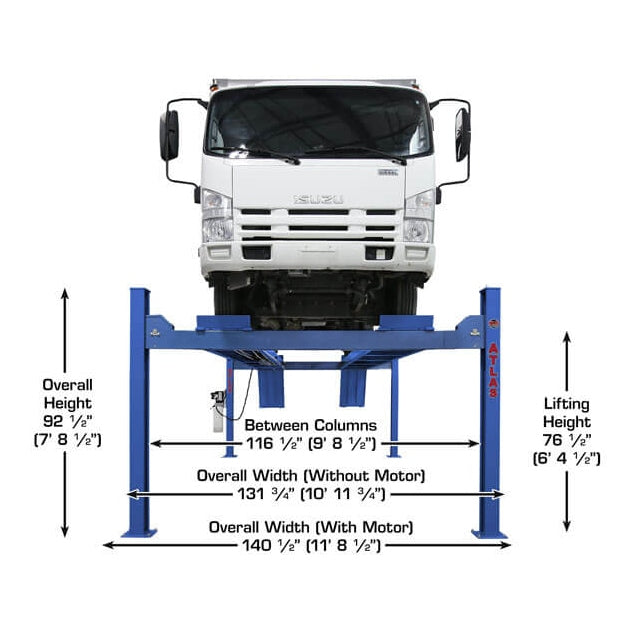

• Lifting Height: 76 1/2" (6' 4 1/2")

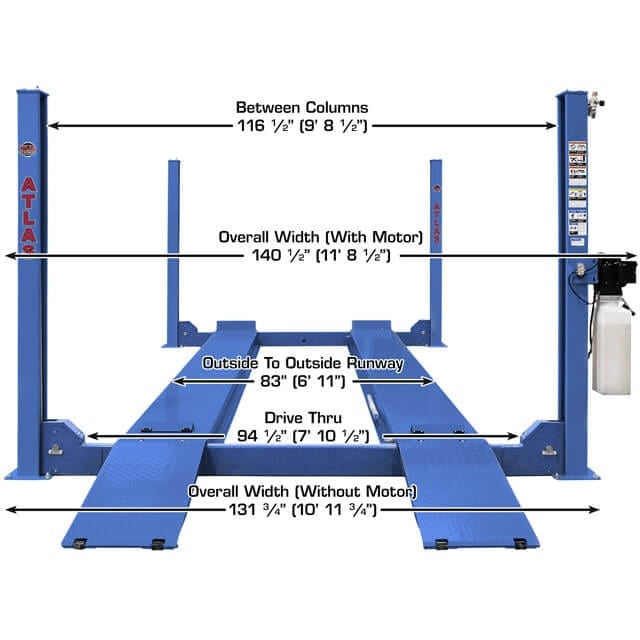

• Overall Width of Columns (Without Motor): 131 3/4" (10' 11 3/4")

• Overall Width of Columns (With Motor): 140 1/2" (11' 8 1/2")

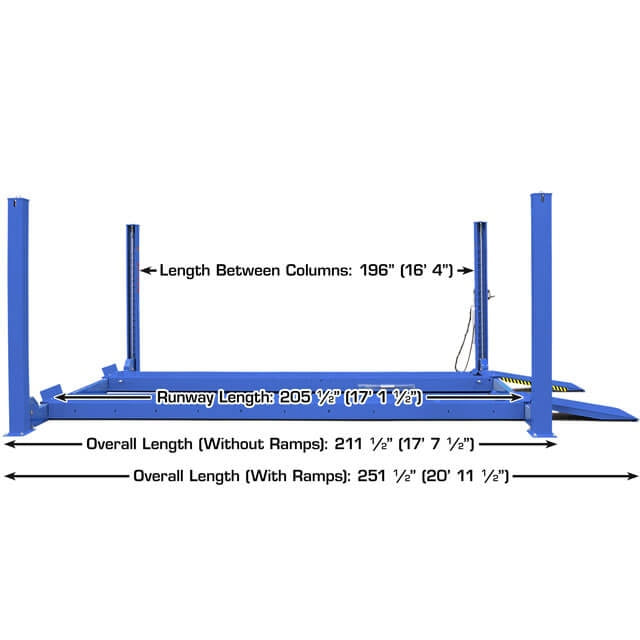

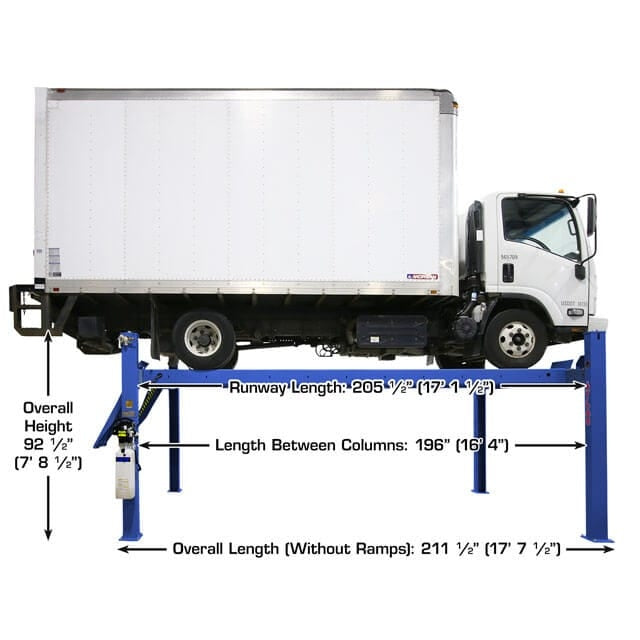

• Overall Length with Approach Ramp: 251 1/2" (20' 11 1/2")

• Length Between Columns: 196" (16' 4")

• Runway Length: 205 1/2" (17' 1 1/2")

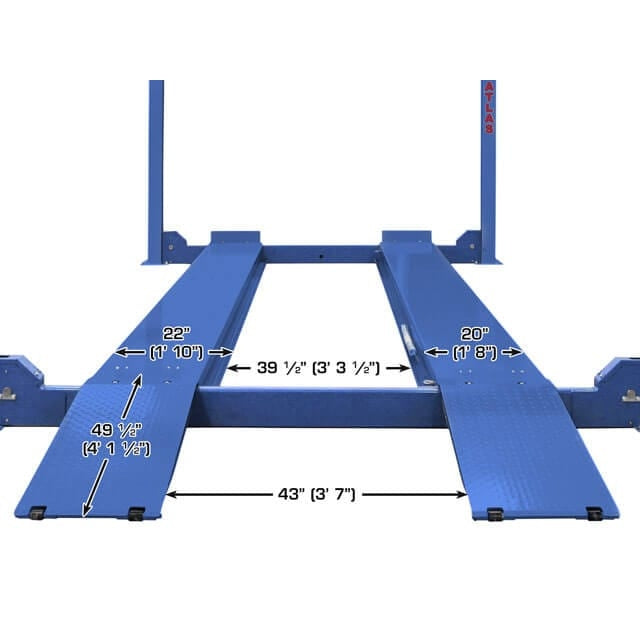

• Runway Width: 20"

• Runway Thickness: 7"

• Width Between Runways: 42 3/4" (w/ Rail 39 1/4")

• Clearance Under Runways: 69 1/2" (5' 9 1/2")

• Clearance Between Columns: 116 3/8" (9' 8 3/8")

• Height of Columns: 92 1/2" (7' 8 1/2") Rear / 109 1/4" (9' 1 1/4") Front

• Maximum Wheel Base: 195" (16' 3")

• Drive Thru: 94 1/2" (7' 10 1/2")

• Air Requirement: 85-115 PSI (External Air Supply Required)

• Motor/Electrical Requirement: 220V Single (1) Phase (Requires a 30-Amp Breaker)

• Oil Requirement: 3-5 Gallons AW32/AW46 (Not Included)

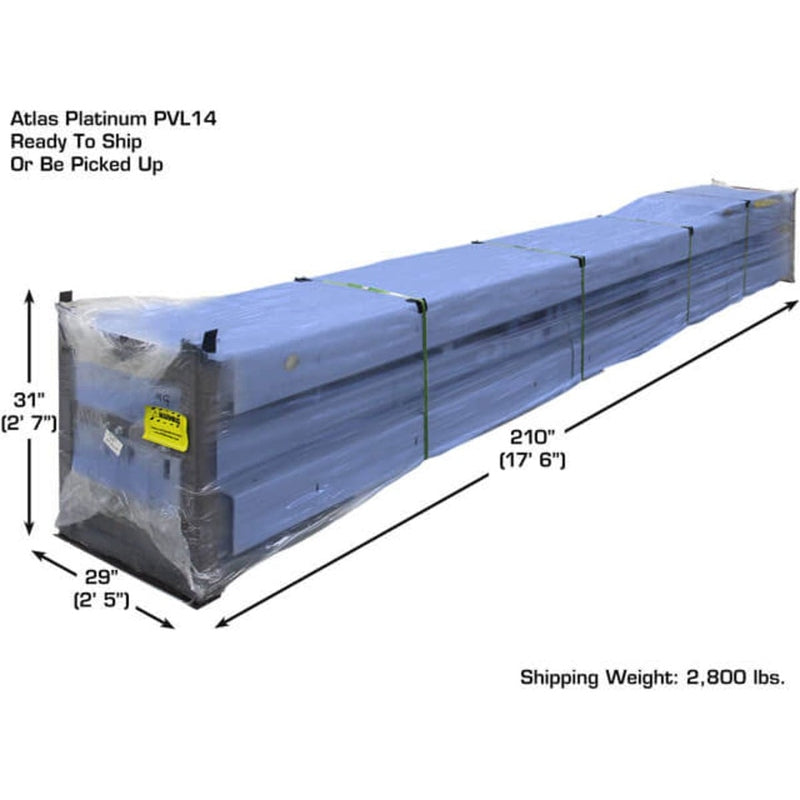

• Shipping Weight: 2,800 lbs.

• Concrete Requirement: Minimum 6" with 3,000 PSI rating

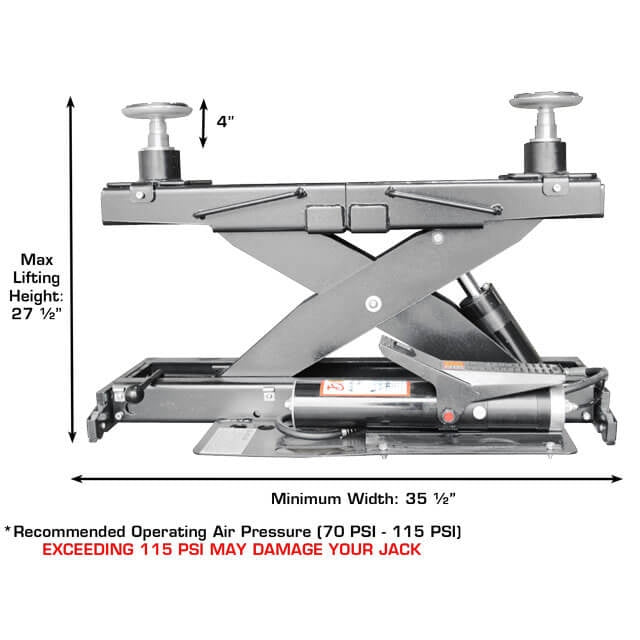

Atlas® Platinum RJ7000 Specifications:

• Maximum Capacity: 7,000 lb.

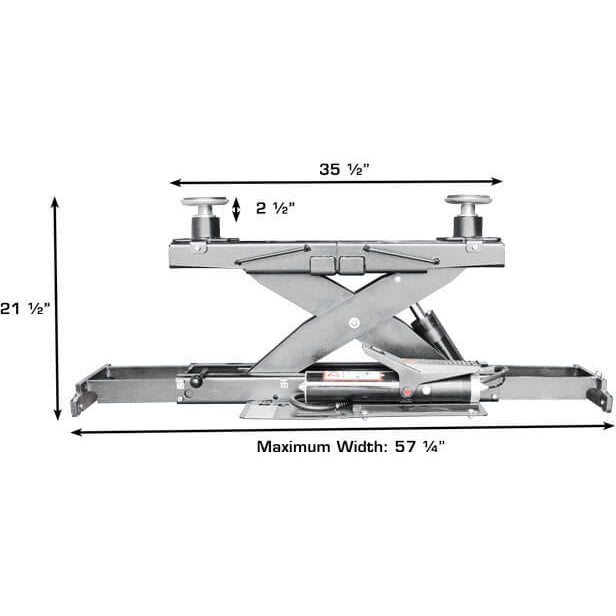

• Maximum Width: 45 1/2" (3' 9 1/2")

• Minimum Width: 36" (3')

• Distance Between Runway Capability: 36"- 45"

• Maximum Lifting Height (With Adapters): 27 1/2" (2' 3 1/2")

• Air Requirement: 70-115 PSI

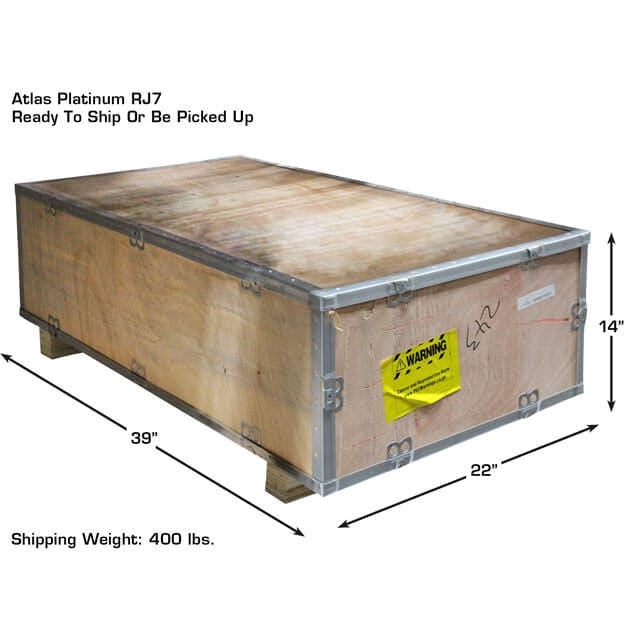

• Shipping Weight: 400 lbs.

• Double Screw-Up Adapter Pad: 1 1/2" - 4"

Atlas® Platinum Alignment Kit Specifications:

• Maximum Capacity: 14,000 lb.

• Overall Length: 199 1/3" (16' 7 1/3")

• Overall Width (Each Side): 20 5/8"

• Minimum Wheel Base: 75 2/5" (6' 3 2/5")

• Maximum Wheel Base: 148 2/3" (12' 4 2/3")

• Turntable Recess: 1 1/2" - 2"

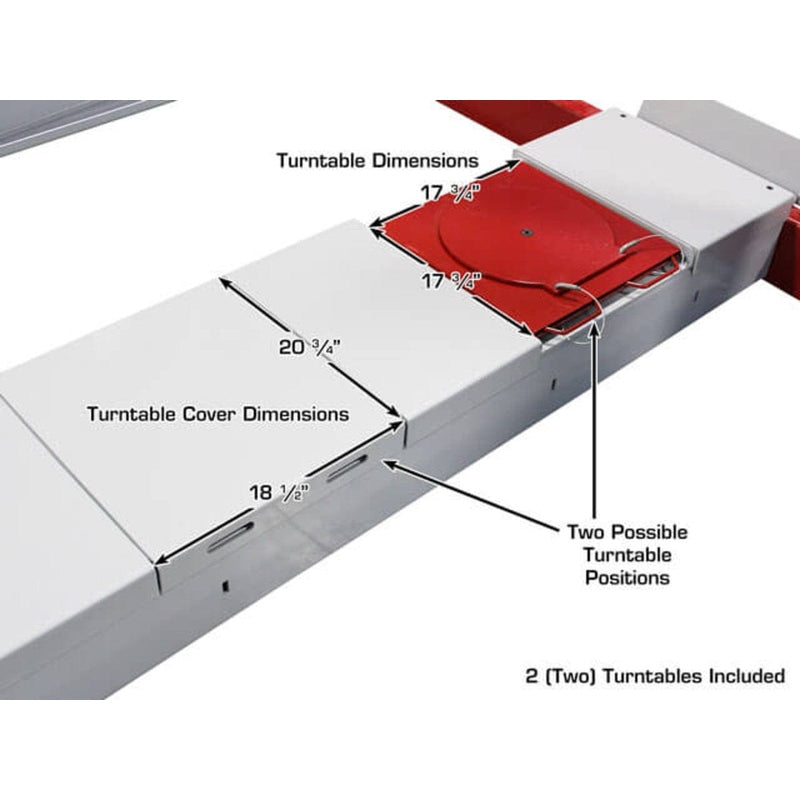

• Turntable Dimensions: 17 1/2" x 17 1/2" x 1 1/2"

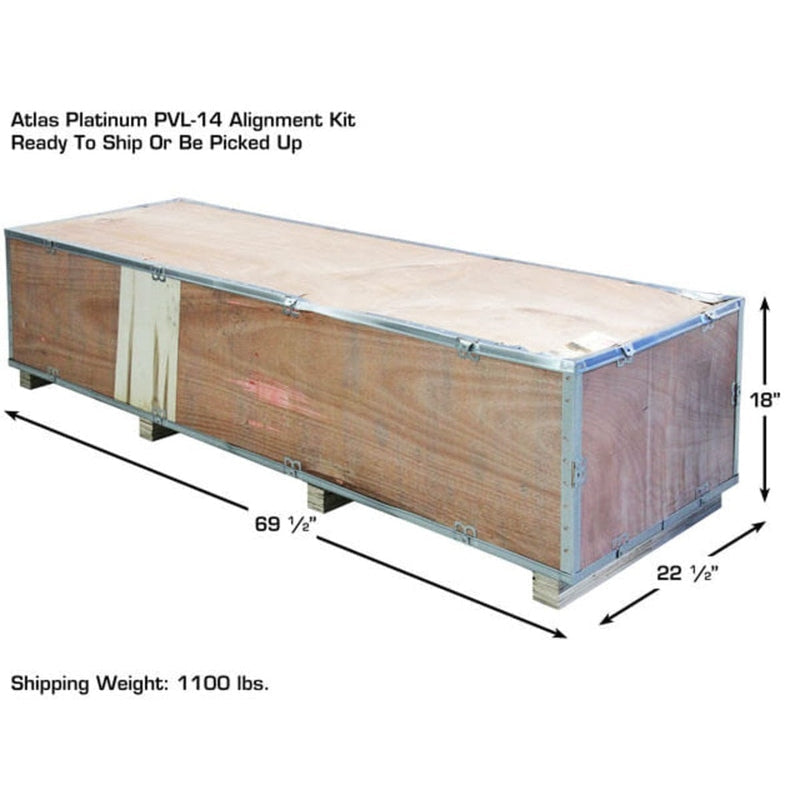

• Shipping Weight: 1,100 lbs.
