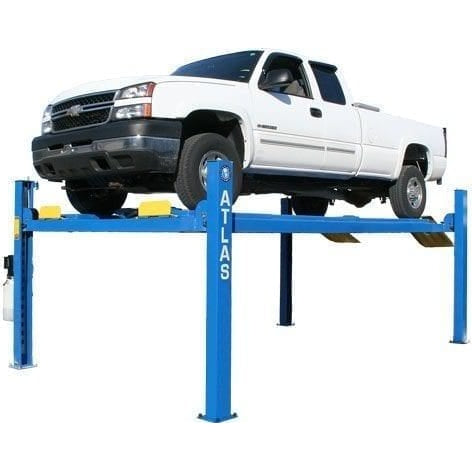

Atlas 412A Alignment 4 Post Lift + RJ6 Rolling Jacks Combo

The Atlas® 412A is a robust, commercial-grade four-post alignment lift designed to meet the demands of automotive service centers. With a 12,000 lb. capacity, this lift is built to last and provides reliable service for years to come. It offers premium features typically seen on higher-end models, providing an unbeatable combination of durability, precision, and value.

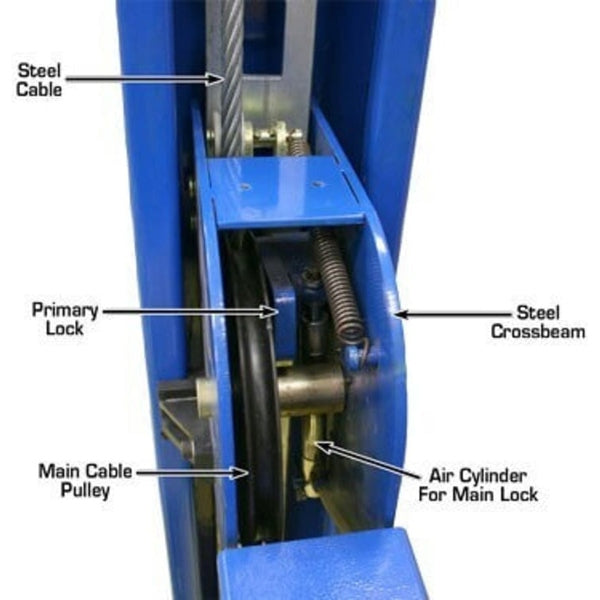

This lift features an advanced cable system paired with an oversized hydraulic cylinder for smooth, efficient operation. Unlike older chain lifts, the Atlas® 412A ensures a level lift every time, eliminating issues like “door dings” and inconsistent leveling. Whether you're handling basic lifting or performing alignments, this lift is ready for the job.

In addition to its heavy-duty capabilities, the Atlas® 412A comes equipped with built-in slip plates and alignment turntables. These components are positioned to provide exceptional versatility, while the runway covers allow for more varied uses when turntables are not needed. This lift is also designed to be easily integrated into your workshop with multiple positioning options for turntables and additional accessories available, such as drive-off ramps and runway extensions.

The Combo Package Includes:

• Two Atlas® RJ6 Rolling Bridge Jacks: Ideal for raising a vehicle’s wheels off the lift to service tires and brakes.

Features

412A - 12,000 lb. Capacity

• Heavy Duty, Commercial Grade Construction

• Extra Tall, Extra Wide & Extra Long

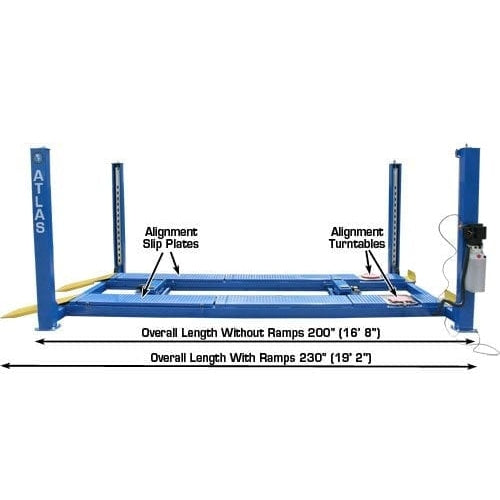

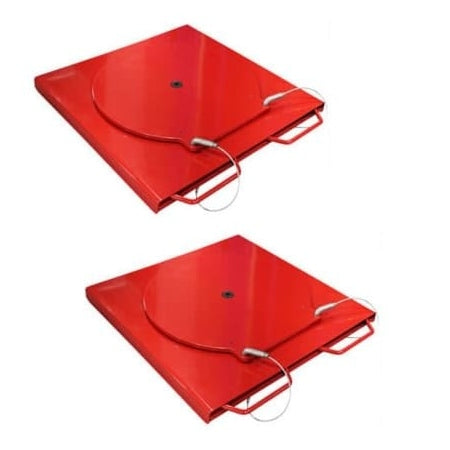

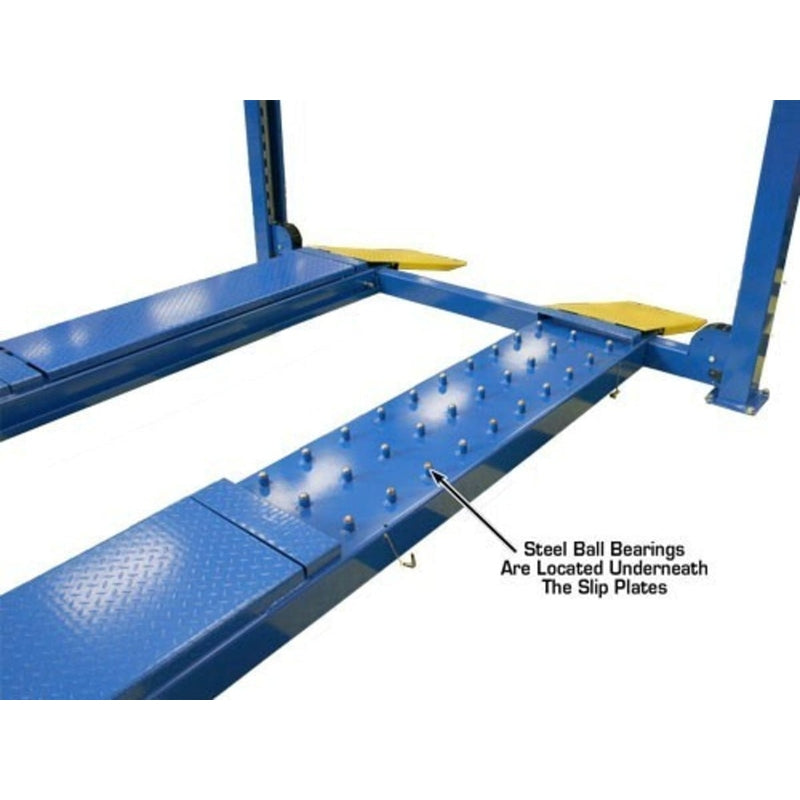

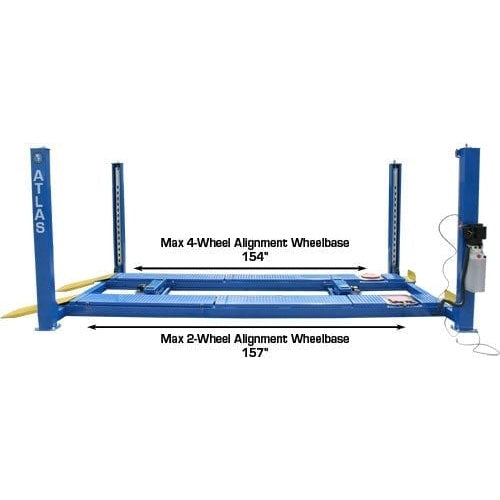

• Built-In Slip Plates & Alignment Turntables Included

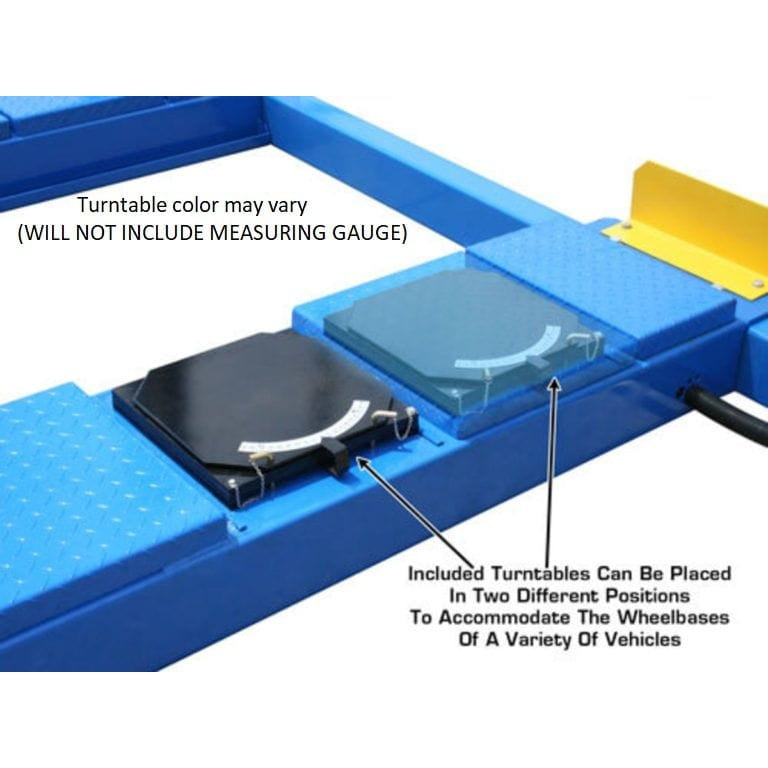

• Multiple Positions for Turntable Placement

• Runway Covers for Versatile Use (when turntables are removed)

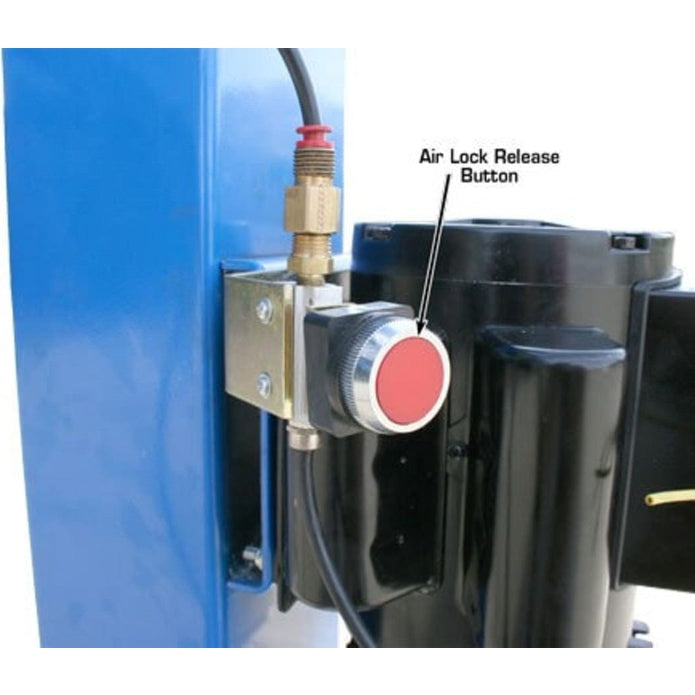

• Air Operated Single Point Lock Release (Requires External Air Supply)

• Lock Ladder Design & Double Lock Safety System

• Powder Coat Finish for Durability

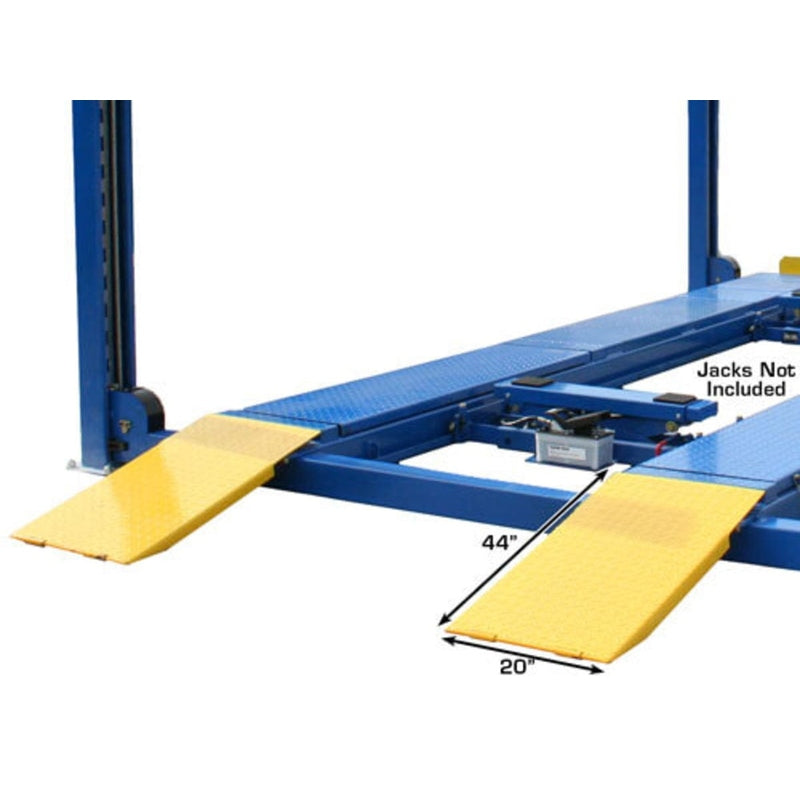

• Steel Approach Ramps Included

• Additional Drive-Off Ramps Available (Sold Separately)

• Runway Extensions Available (Sold Separately)

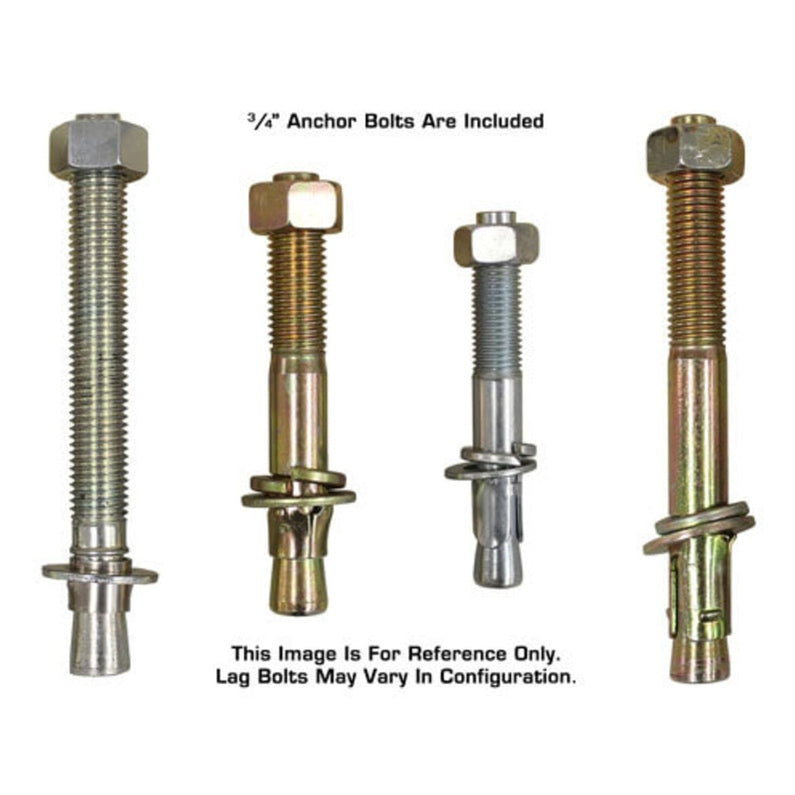

• Mounting Hardware Included

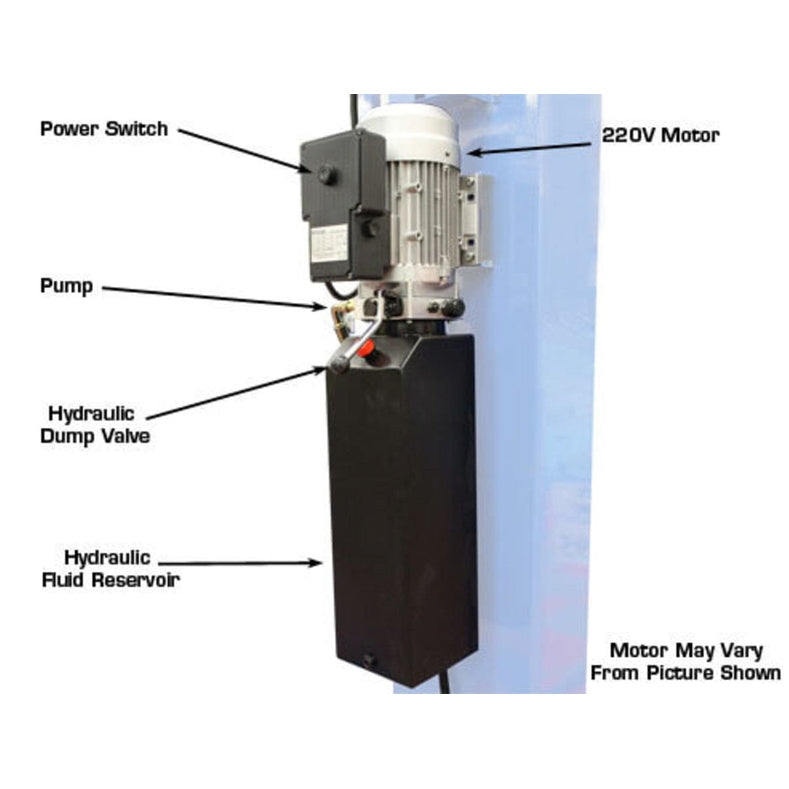

• 220V/1Phase Electric Operation (30 Amp Breaker Recommended)

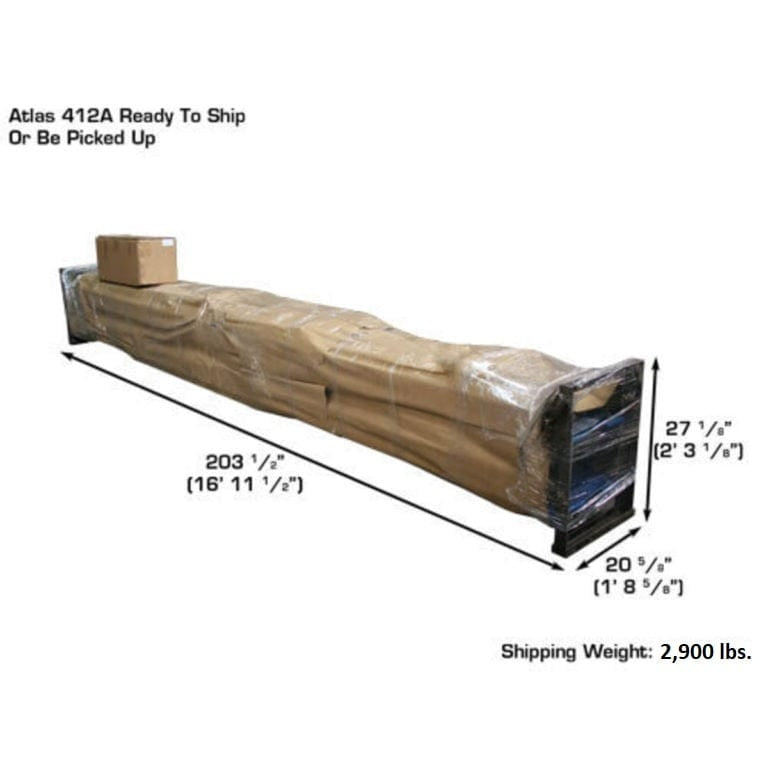

• Shipping Weight: 2,900 lbs

• 5 Year Structural, 2 Year Hydraulic Warranty (Parts Only)

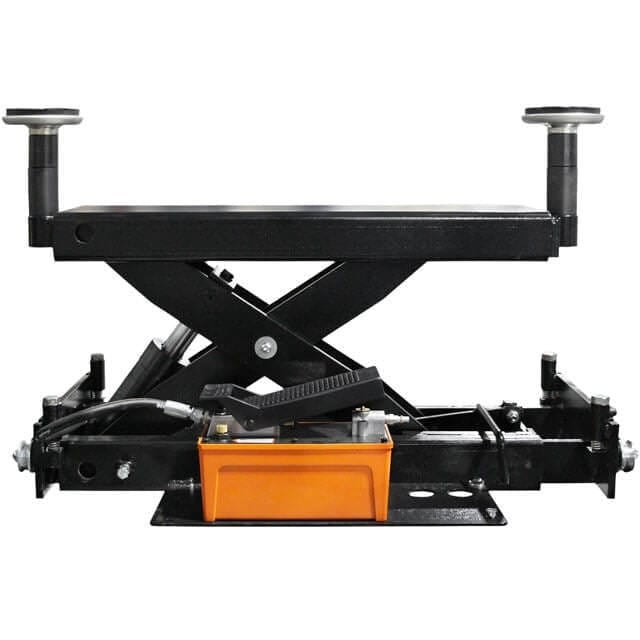

RJ6 Rolling Bridge Jacks - 6,000 lb. Capacity

• Air/Hydraulic Operated (External Air Supply Required)

• Multiple Safety Lock Positions for Maximum Security

• Compact Size & Low Profile for Versatility

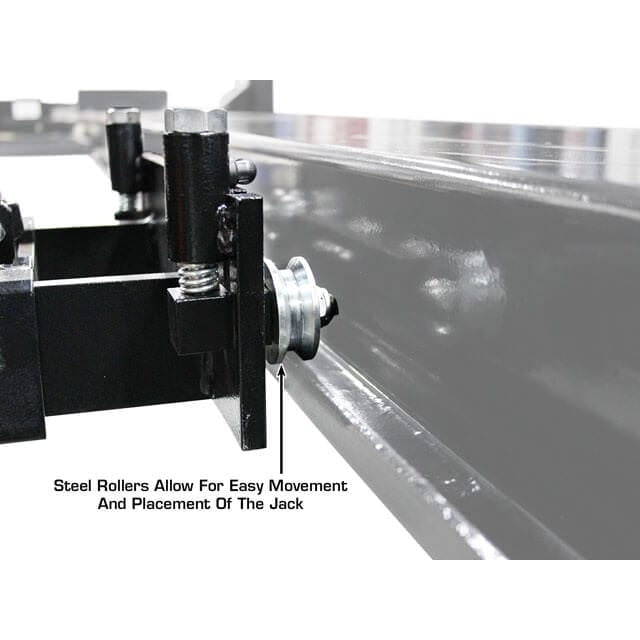

• Smooth Rolling Action for Ease of Use

• Scissor Mechanism Ensures Level Lifting

• Powder Coated Finish

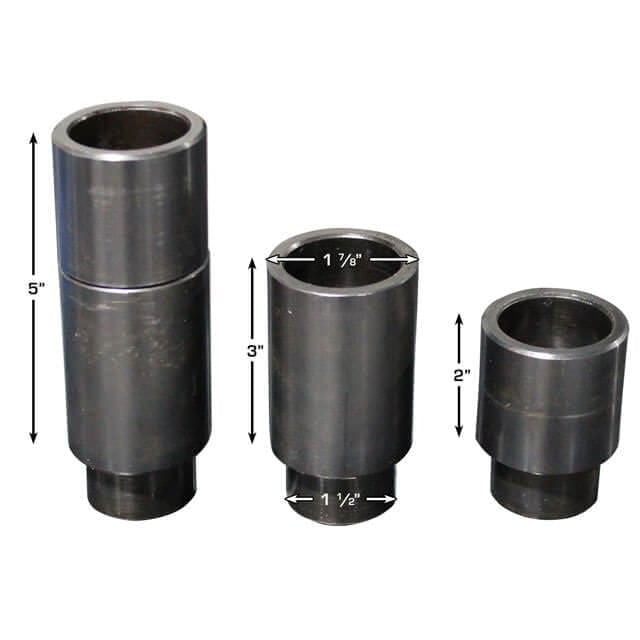

• 4 Piece Truck Adapter Set Included

• 1 Year Parts Only Warranty

Specifications

Atlas® ATTD-412A

• Capacity: 12,000 lbs

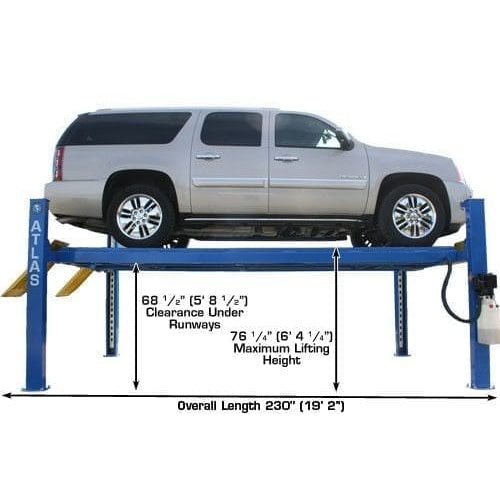

• Lifting Height: 77 3/4" (6' 5 3/4")

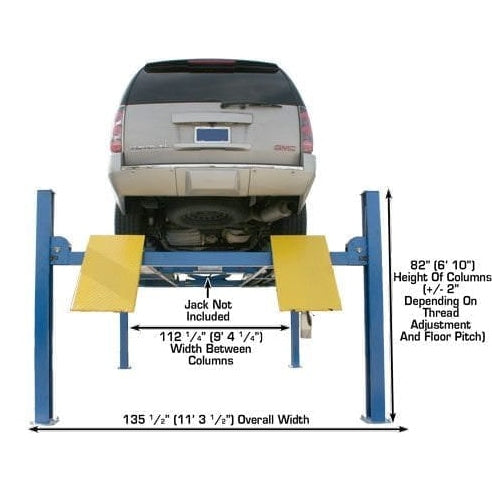

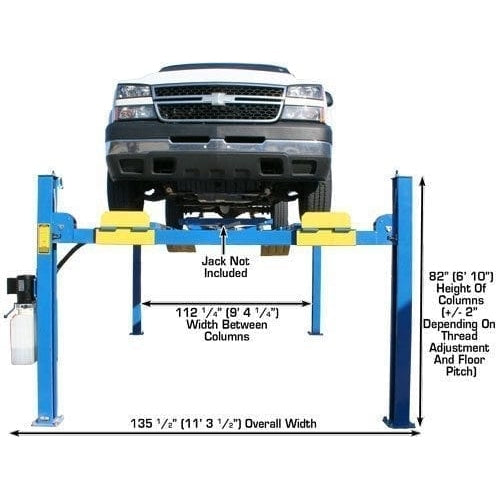

• Overall Width of Columns (Without Motor): 126 1/4" (10' 6 1/4")

• Overall Width of Columns (With Motor): 135 1/4" (11' 3 1/4")

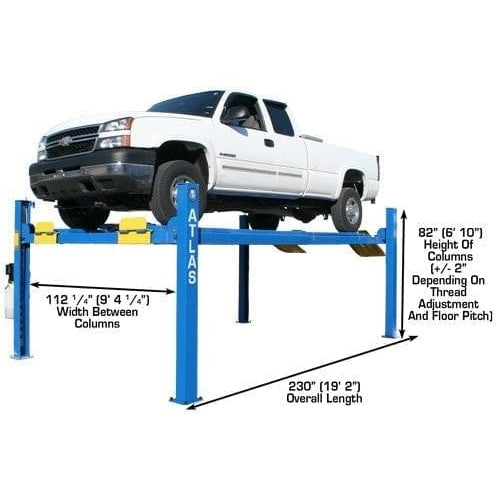

• Overall Length With Approach Ramp: 236 1/2" (19' 8 1/2")

• Length Between Columns: 183 1/4" (15' 3 1/4")

• Runway Length: 194 1/2" (16' 2 1/2")

• Runway Width: 20"

• Runway Thickness: 7 1/2"

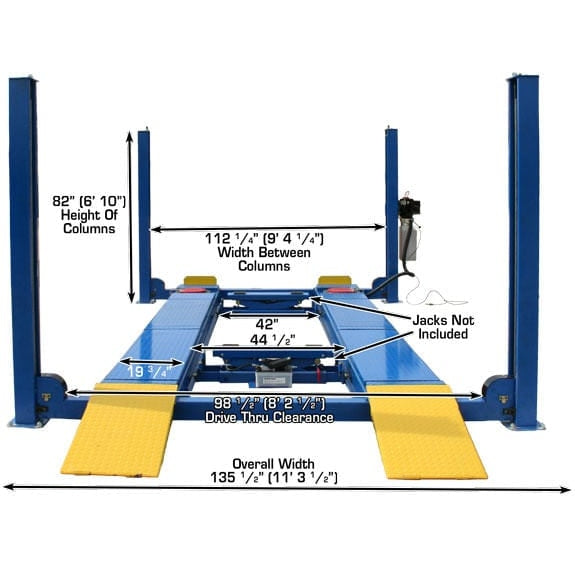

• Clearance Between Columns: 112 5/8" (9' 4 5/8")

• Height of Columns: 89 3/4" (7' 5 3/4")

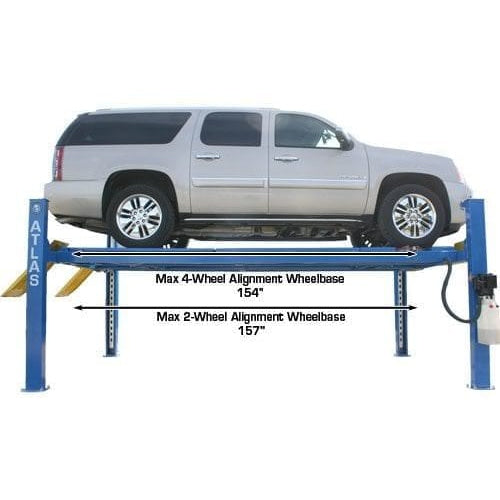

• Maximum Wheel Base: 185" (15' 5")

• Drive-Thru: 98" (8' 2")

• Air Requirement: 85-115 PSI (External Air Supply Required)

• Motor/Electrical Requirement: 220V single-phase, 30 amp breaker

• Oil Requirement: 3-5 Gallons AW32/AW46 (Not Included)

• Shipping Weight: 2,900 lbs

• Concrete Requirement: Minimum of 6" with 3,000 psi rating

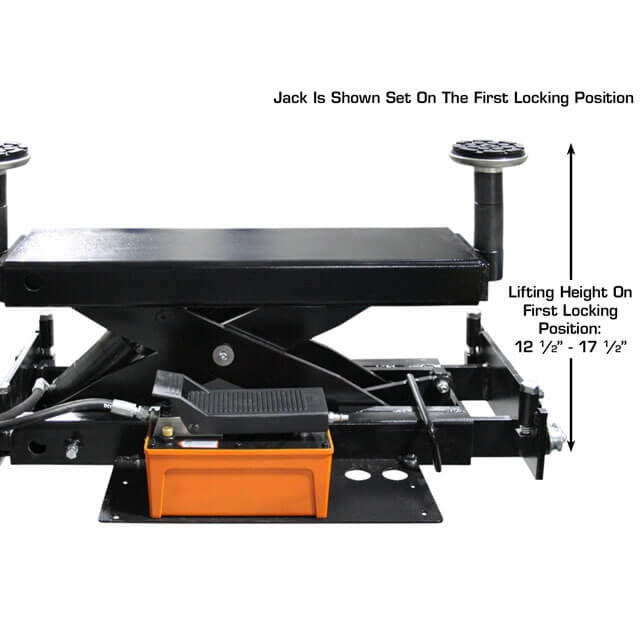

Atlas® RJ6 Rolling Bridge Jack

• Maximum Capacity: 6,000 lbs

• Maximum Width: 55" (4' 7")

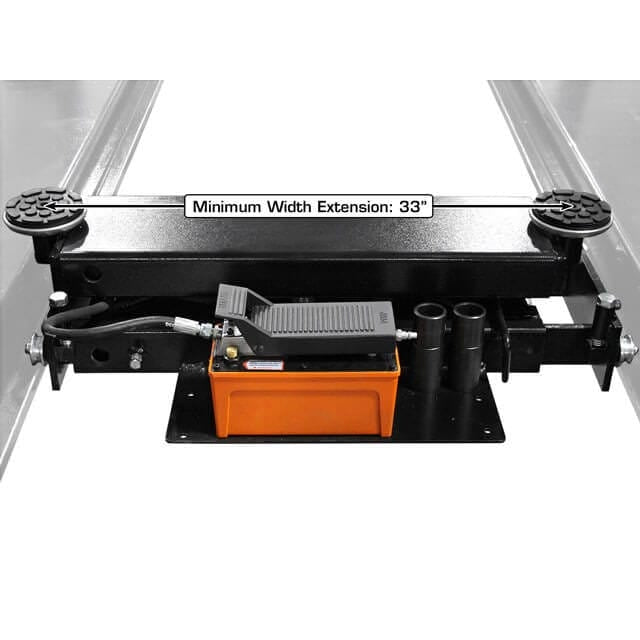

• Minimum Width: 35" (2' 11")

• Distance Between Runway Capability: 32"-52"

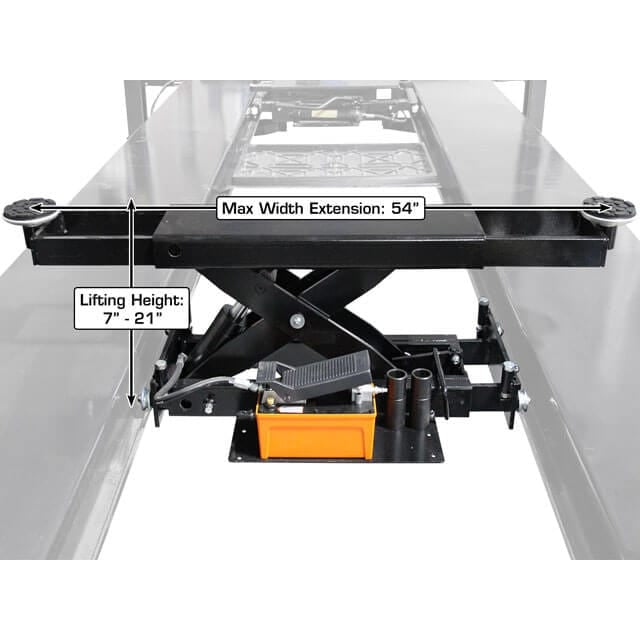

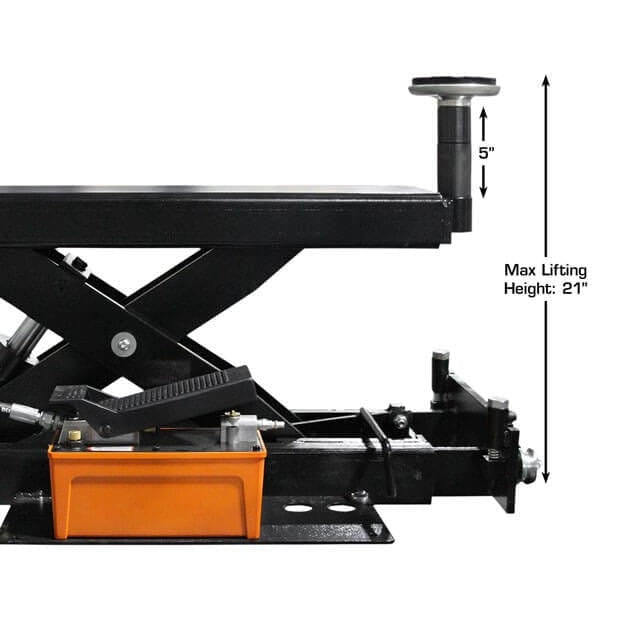

• Maximum Lifting Height (With Adapters): 21" (1' 9")

• Air Requirement: 70-115 PSI

• Shipping Weight: 350 lbs

Documents

Atlas® ATTD-412A Manual

Atlas® 412A Cylinder Bleeding Procedure (Do this immediately after installation)
