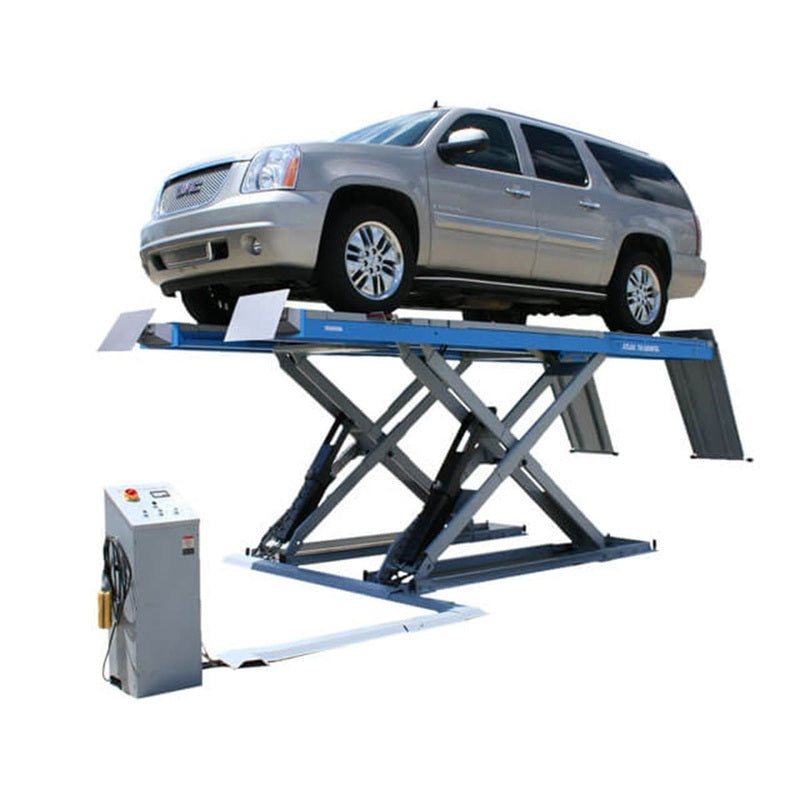

Atlas 12ASL 12,000 lb Scissor Alignment Lift

The Atlas 12ASL 12,000 lb. Capacity Scissor Alignment Lift is the result of a joint venture between a prestigious Italian lift manufacturer and an Atlas Asian partner, combining world-class engineering with cost-effective manufacturing. This alignment lift offers exceptional value, outmatching other big-name brands that cost two or three times as much.

Designed to handle the heaviest vehicles, this heavy-duty scissor alignment lift has a lifting height of over seven feet and can be either floor-mounted or recessed for flush mounting (please note that additional short ramps are required for flush mounting). The full-frame design ensures maximum stability while lifting.

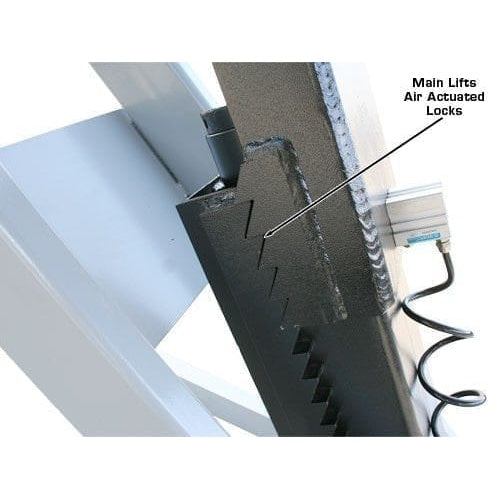

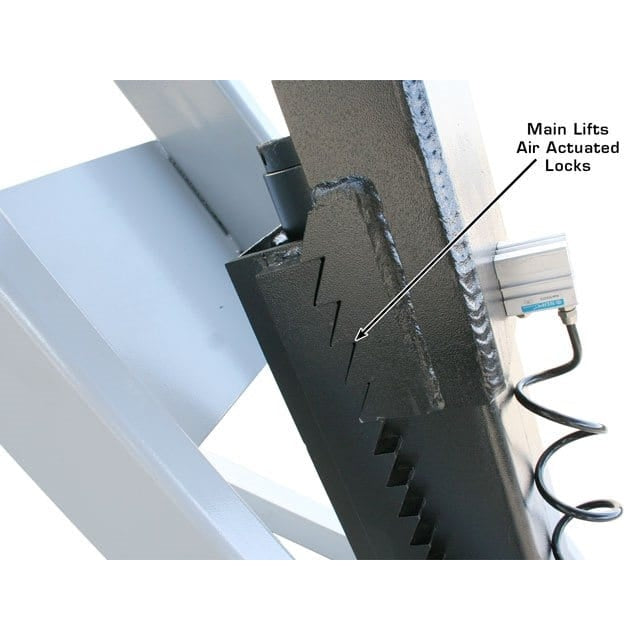

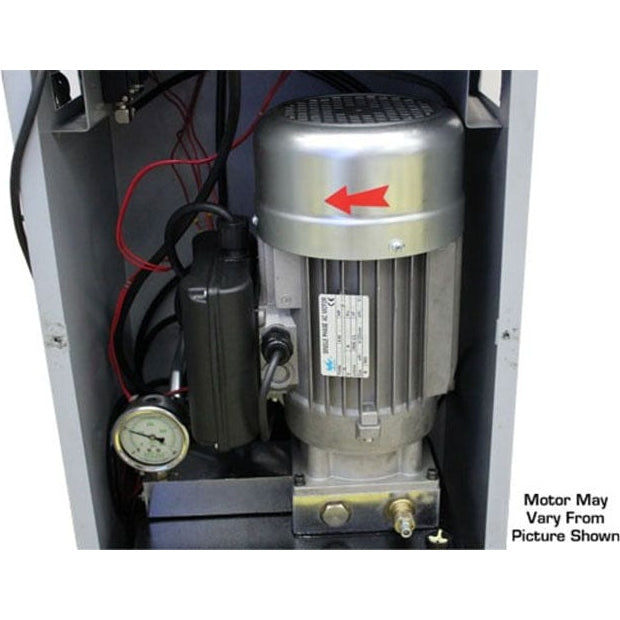

The lift includes a separate control panel for convenient operation, and its 220V electric/hydraulic power unit is housed inside a sturdy metal box. The push-button controls are intuitive, and the air actuated lock system automatically engages and disengages as the lift rises or lowers. A safety lowering limit switch halts the lift's descent when it reaches 10 inches above the ground, preventing accidental over-lowering. The lift will only continue lowering once the Down button is released and pressed again.

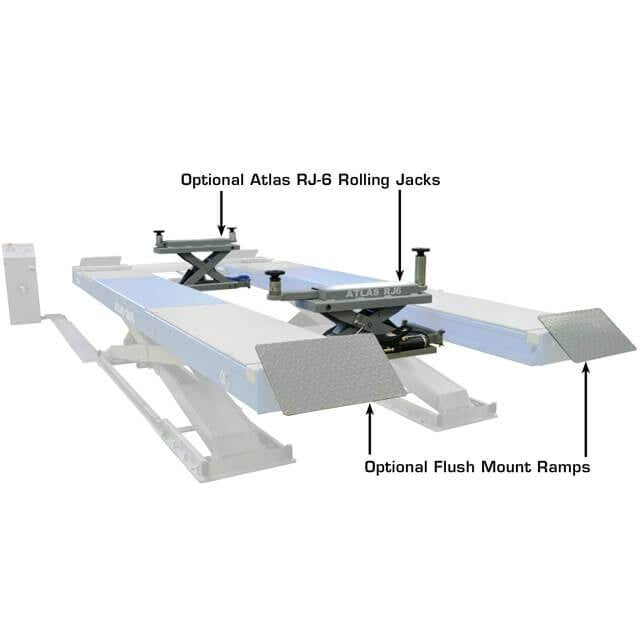

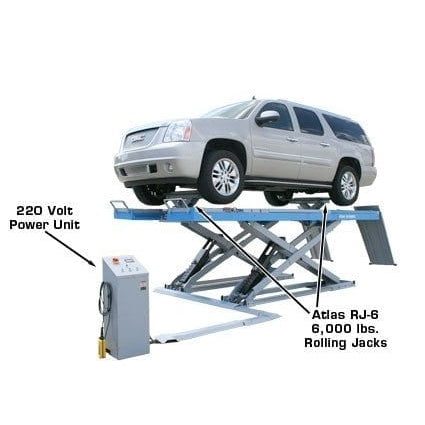

The welded rails inside the runways are designed for easy use with a rolling jack, such as the Atlas RJ-6, for added versatility.

Ideal for alignment shops looking for a balance of quality and cost, the Atlas 12ASL 12,000 lb. scissor lift is perfect for aligning everything from small foreign cars to one-ton dually trucks. With easy installation, a durable powder coat finish, and the lowest prices in the industry, this lift is an outstanding investment for demanding shop owners.

Features

• 12,000 lb. Capacity – Handles heavy-duty vehicles with ease

• Commercial Grade – Designed for rugged, long-term use

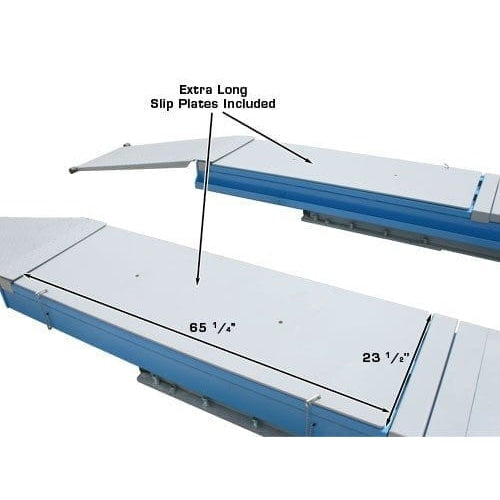

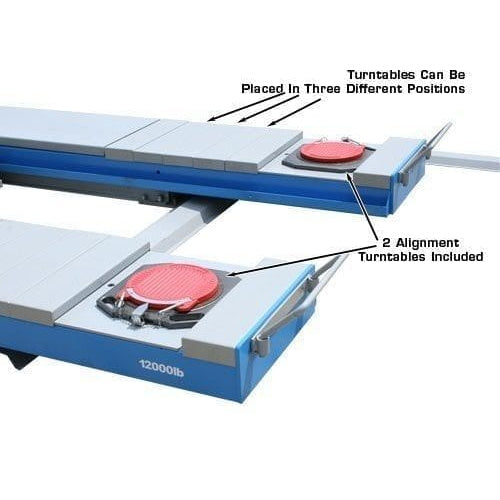

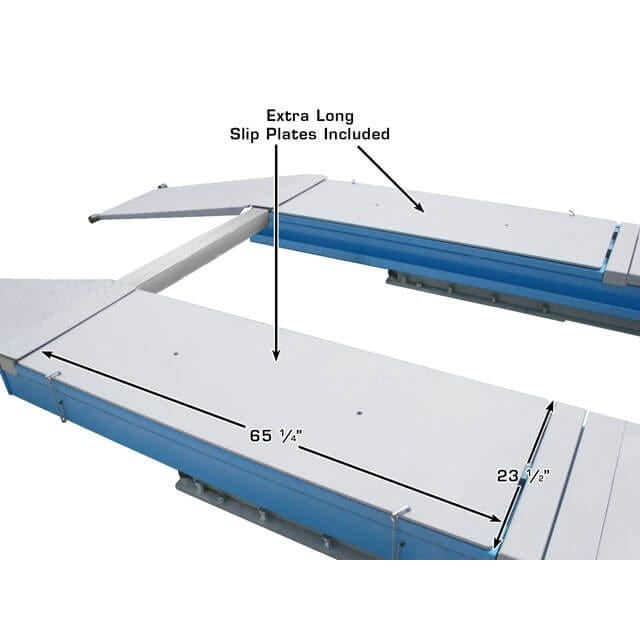

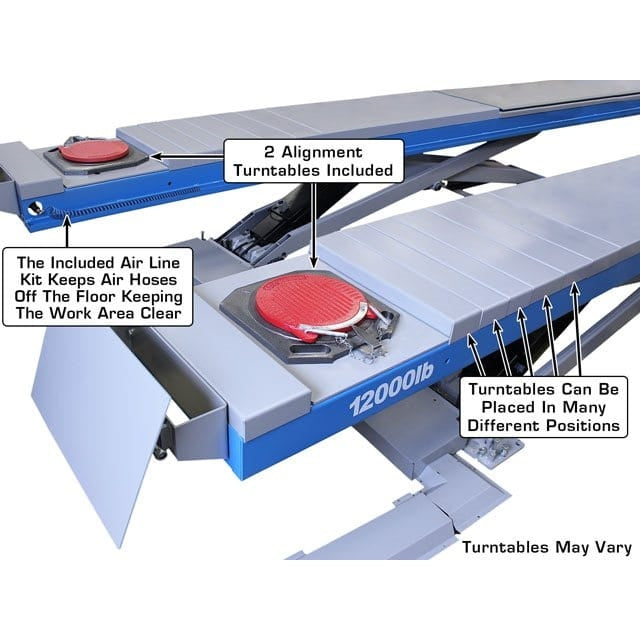

• Built-in Slip Plates and Alignment Turntables – No extra purchases needed

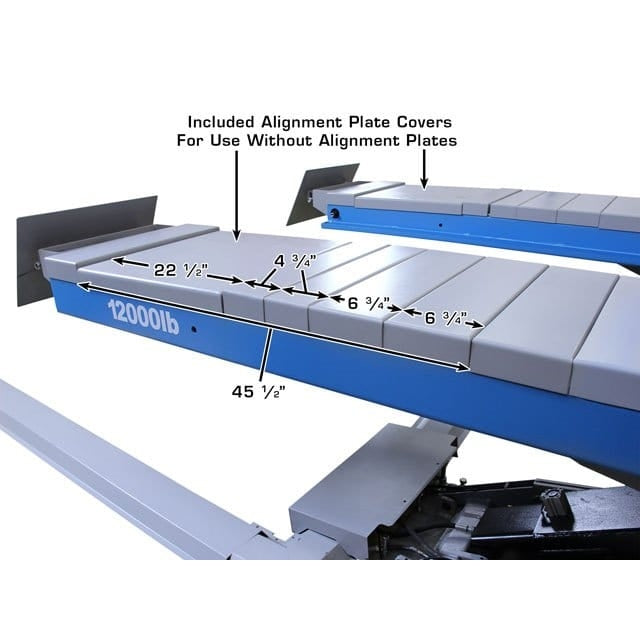

• Turntable Covers Included – Protect your equipment

• Open Center Design – Easy access for alignment tasks

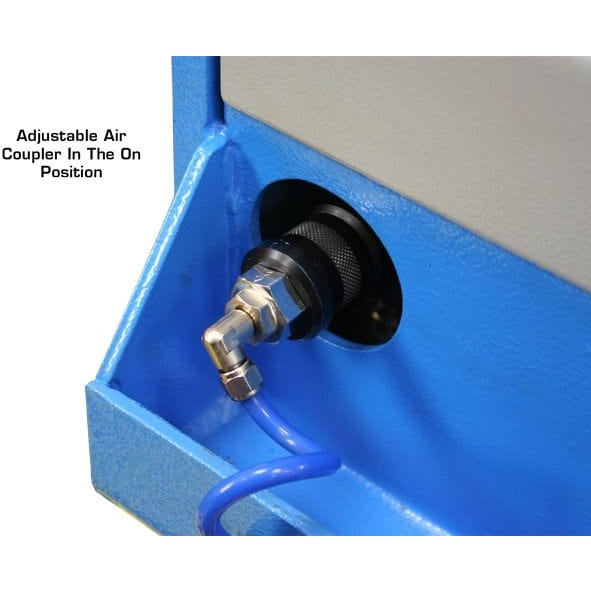

• Air-Operated Single Point Lock Release – Requires external air supply

• Airline Kit Included – Comes ready to operate with an air compressor

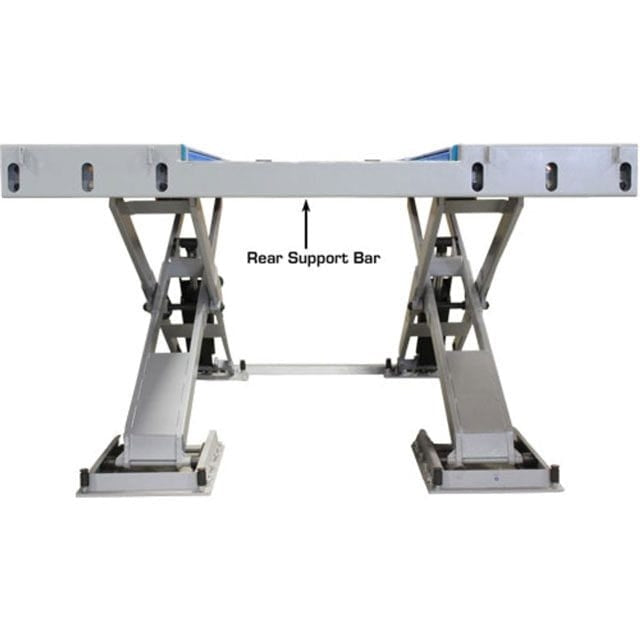

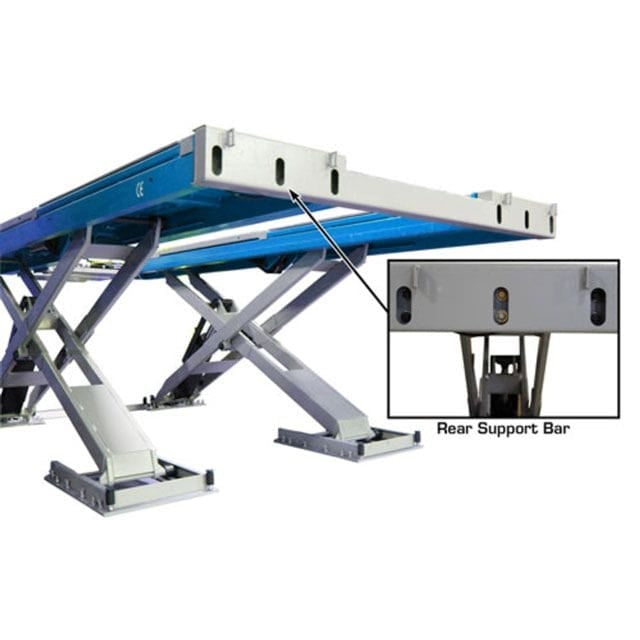

• Rear Cross Beam for Extra Stability – Ensures safe lifting even for heavy vehicles

• Extra Long 72" Approach Ramps – For easy vehicle loading

• Precise Platform Leveling Accuracy – Ensures accurate alignment every time

• Separate Self-Contained Control Panel – Easy access for operators

• Emergency Manual Pump for Lowering – Backup option in emergencies

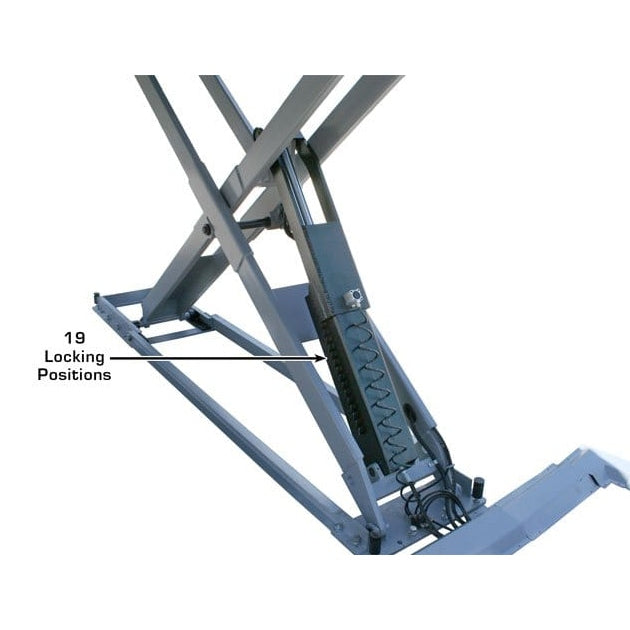

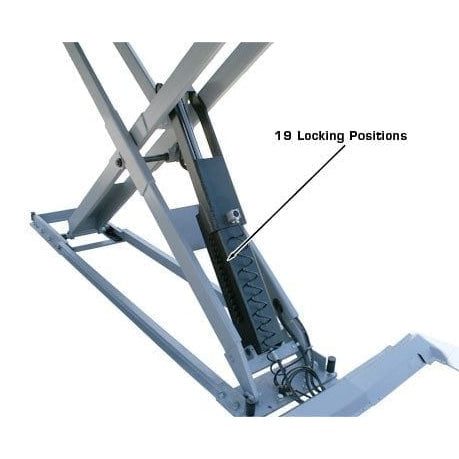

• 19 Locking Positions – For secure vehicle positioning

• CE Certified – Compliant with European safety standards

• Mountable as Surface or Flush – Flexibility for different shop setups

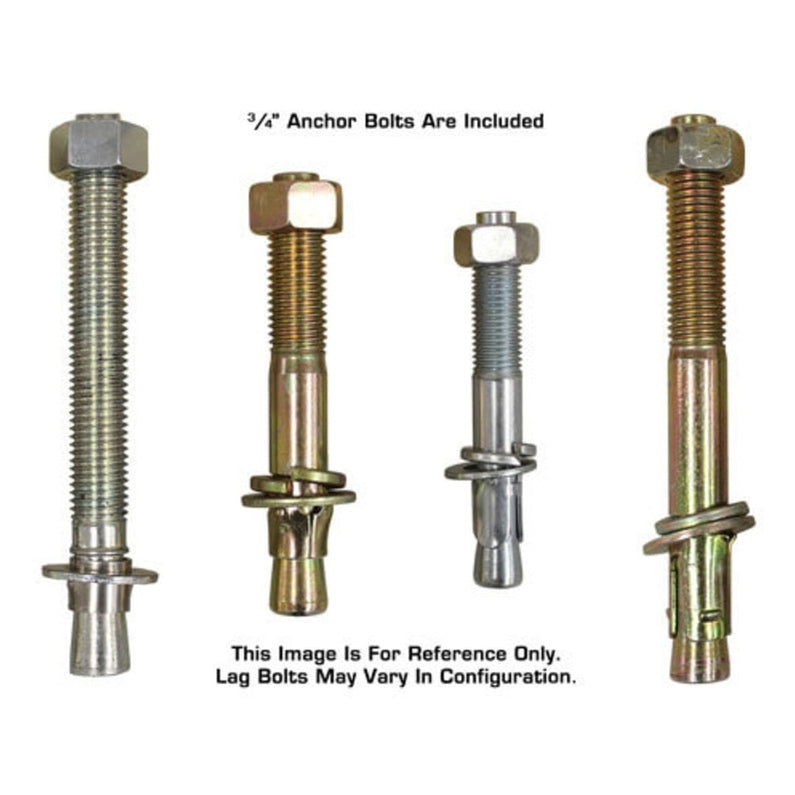

• Mounting Hardware Included – Ready for quick installation

• 220V/1Phase Electric Operation – Requires a 30amp breaker

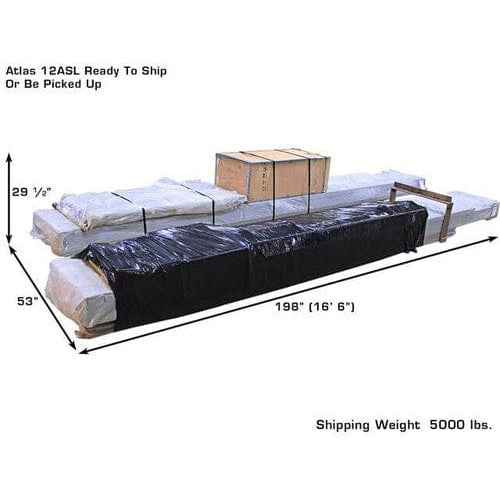

• Shipping Weight: 5,000 lbs.

• 2-Year Structural, 1-Year Hydraulic Warranty – Parts only

Specifications

• Lifting Capacity: 12,000 lbs.

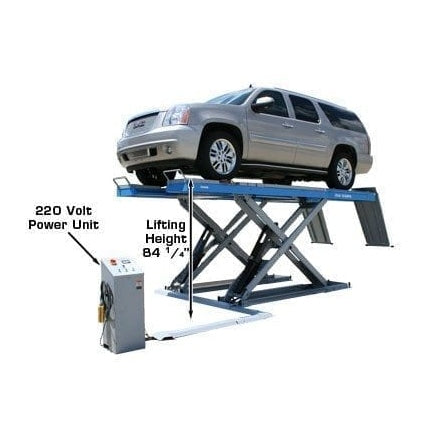

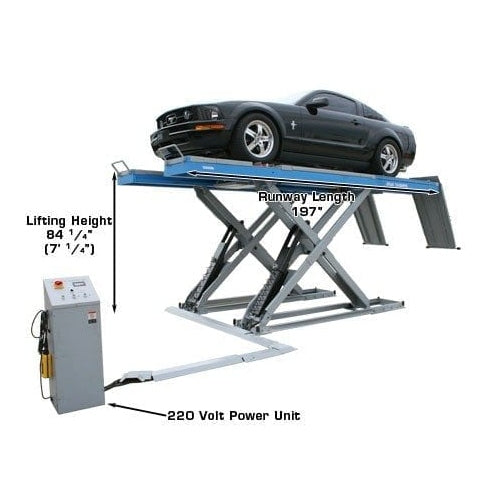

• Lifting Height (Surface Mounted): 84 1/4” (7' 1/4”)

• Lowered Height: 11 1/2”

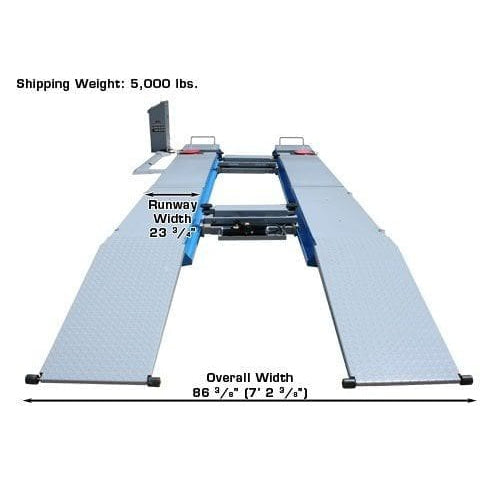

• Overall Width: 86 3/8” (7' 2 3/8”)

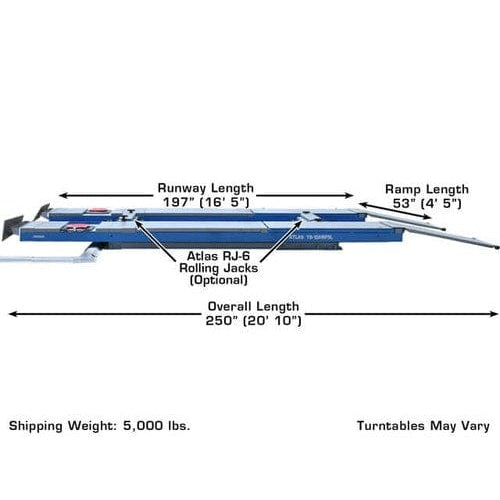

• Overall Length with Approach Ramps: 250” (20' 10”)

• Overall Length without Approach Ramps: 197” (16' 5”)

• Approach Ramp Length: 72” (6’)

• 4-Wheel Alignment Wheelbase:

  • Max: 168”

  • Min: 90”

• 2-Wheel Alignment Wheelbase:

  • Max: 172”

  • Min: 86”

• Runway Width (Including Rail): 23 3/4” (1' 11 3/4”)

• Width Between Runways: 39 1/4”

• Width Between Runway Rails: 34 3/8”

• Air Requirement: 90-120 PSI

• Motor/Electrical Requirement: 220V +/- 5% (209-231V), single phase. A 30 amp breaker required

• Oil Requirement: 3-5 gallons of AW32 or AW46 oil (not included)

• Shipping Weight: 5,000 lbs.

• Required Concrete: Minimum of 6" thickness with 3,000 psi rating
