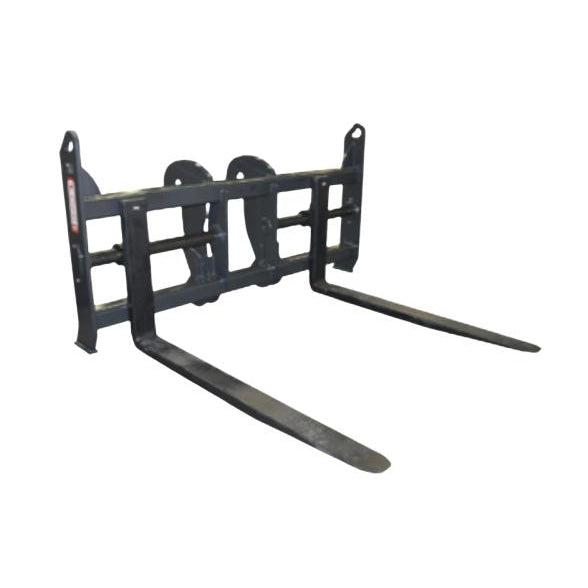

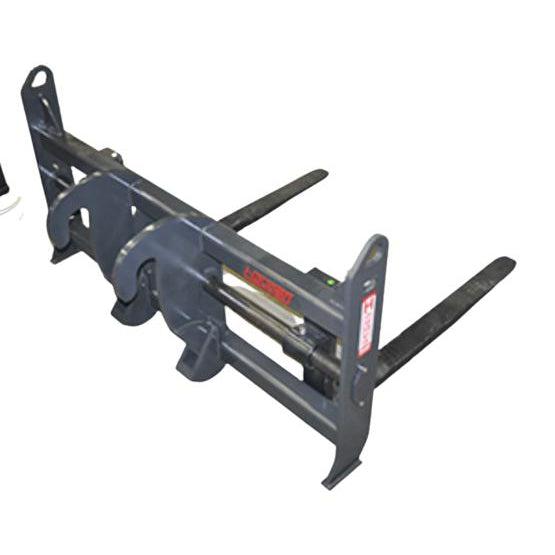

Wheel Loader Pipe Forks for 416, 418 & Cat Fusion Mount
- Heavy-Duty Construction: Shaft-style non-swinging forks ensure durability and reliability.
- Adjustable Design: Shaft-mounted with a welded eye for easy adjustment without rails or hooks.
- Shaft Sizes: Choose from different shaft sizes, all made of stress-relieved material for strength.
- Extra Wide Frame: 96" frame width, ideal for handling pipe efficiently.
Specification
JRB 416 Mount
| Model |
Frame Width | Minimum Tine Spacing | Max Tine Spacing | Shaft Size | Fork Tine Size |
Capacity at 24" |
|---|---|---|---|---|---|---|
| MWFP 96 25-6-60-35 |
98" |
21.25" |
94" | 3.50" | 2.5" x 6" x 60" |
20,000 lbs |
| MWFP 96 25-6-72-35 |
98" |
21.25" | 94" | 3.50" | 2.5" x 6" x 72" | 20,000 lbs |
| MWFP 96 25-6-96-35 |
98" |
21.25" | 94" | 3.50" |
2.5" x 6" x 96" | 20,000 lbs |
| MWFP 96 3-7-72-35 |
98" |
24" |
94" | 3.50" |
3" x 7" x 72" | 34,000 lbs |
| MWFP 96 3-7-96-35 |
98" |
24" |
94" |
3.50" |
3" x 7" x 96" |
34,000 lbs |
JRB 418 Mount
| Model | Frame Width | Minimum Tine Spacing | Max Tine Spacing | Shaft Size | Fork Tine Size |
Capacity at 24" |
|---|---|---|---|---|---|---|
| MWFP 96 3-7-60-35 |
98" |
24" |
94" | 3.50" | 3" x 7" x 60" |
34,000 lbs |
| MWFP 96 3-7-72-35 |
98" |
24" |
94" | 3.50" | 3" x 7" x 72" | 34,000 lbs |
| MWFP 96 3-7-96-35 |
98" |
24" |
94" | 3.50" |
3" x 7" x 96" | 34,000 lbs |
***Other frame widths and tine sizes available
Cat Fusion Mount
| Model |
Frame Width | Minimum Tine Spacing | Max Tine Spacing | Shaft Size | Fork Tine Size |
Capacity at 24" |
|---|---|---|---|---|---|---|
| MWFP 96 25-6-60-35 |
98" |
21.25" |
94" | 3.50" | 2.5" x 6" x 60" |
20,000 lbs |
| MWFP 96 25-6-72-35 |
98" |
21.25" | 94" | 3.50" | 2.5" x 6" x 72" | 20,000 lbs |
| MWFP 96 25-6-96-35 |
98" |
21.25" | 94" | 3.50" |
2.5" x 6" x 96" | 20,000 lbs |
| MWFP 96 3-7-72-35 |
98" |
24" |
94" | 3.50" |
3" x 7" x 72" | 34,000 lbs |
| MWFP 96 3-7-96-35 |
98" |
24" |
94" |
3.50" |
3" x 7" x 96" |
34,000 lbs |
***Other frame widths and tine sizes available
Option
Replacement Shaft
- Shafts are available to fit any Haugen Fork
| Model | Description |
| SH-35 | 3.50” Diameter Shaft for as 98” frame ( 2 per frame) |
