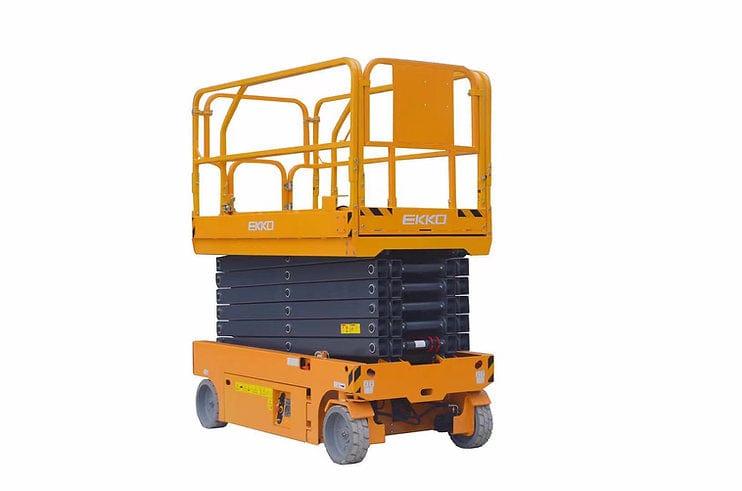

Reach New Heights with Confidence: EKKO ES120E Scissor Lift
The EKKO ES120E Scissor Lift is a compact and versatile solution for various indoor and outdoor maintenance and construction tasks, offering impressive reach for its size. Here's why you should choose the ES120E:

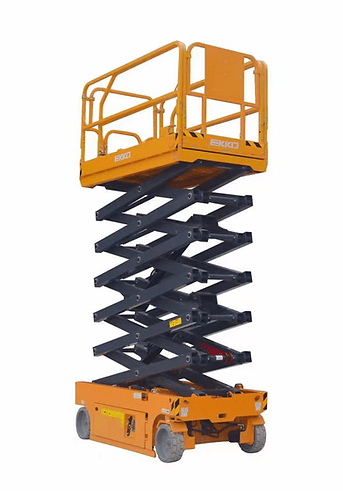

- Exceptional Reach for a Compact Platform: This scissor lift boasts a maximum platform height of 39 feet (468 inches), allowing you to access significantly higher areas compared to similar-sized models.
- Easy Maneuverability in Tight Spaces: With a footprint of only 89 inches long by 45 inches wide, the ES120E is ideal for navigating tight spaces and crowded work environments.
- Safe and Stable Operation: Built with a sturdy steel construction and a 700-pound capacity, the ES120E ensures secure operation while you work. It also complies with GB25849 and EN280 safety standards for added peace of mind.
- User-Friendly Controls: Equipped with a reliable Curtis controller for smooth and precise operation.
Key Features:
- Load Capacity: 700 lbs
- Maximum Reach: 39 ft (468 in)
- Platform Size: 89" x 45" (length x width)
- Steel construction for durability
- 3-Year Limited Warranty
Specification

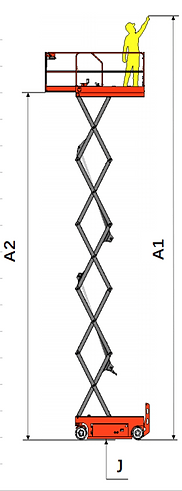

| A1 Max working height | Inch | 45' (547'') |
| A2 Max platform height | Inch | 39' (468'') |

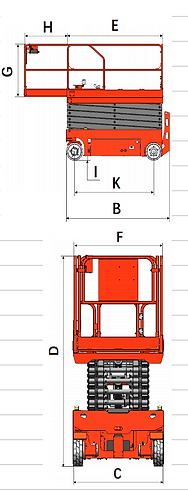

| B Length | Inch | 94.5 |
| C Width | Inch | 45.27 |
| D Overall height (guardrail not folded) | Inch | 102.36 |
| Overall height (folding guardrail) | Inch | 77 |
| Platform size (length EX width FX height G) | Inch | 88.58x45.27 |
| G Guardrail height | Inch | 43.3 |
| H Platform extension size | Inch | 39.37 |
| I Ground clearance (closed state) | Inch | 3.74 |
| J Ground clearance (lifting state) | Inch | 0.78 |
| K Wheelbase | Inch | 72.83 |
| product performance | ||
| Maximum number of workers (indoor/outdoor) | 2 / - | |
| load rating | LBS | 700 |
| Extended platform load rating | LBS | 265 |
| Driving speed (folding state) | km/h | 0-3.2 |
| Driving speed (lifting condition) | km/h | 0~0.8 |
| Minimum Turning radius (inside) | Inch | 0 |
| Minimum turning radius (outside) | Inch | 86.61 |
| Rise/fall time | s | 52/52 |
| Maximum allowable tilting Angle (front/left/right) | ° | 3°/1.5° |
| Maximum allowable wind speed (indoor/outdoor) | m/s | 0/0 |
| Maximum allowable lateral force (indoor/outdoor) | N | 400/0 |
| Gradeability | % | 30 |
| control | proportional control | |
| actuator | Double front wheels | |
| braking | Double rear wheels | |
| Tyre specification/type | Inch | 15*5 |
| Product power | ||
| Lift/drive motor | kw | 3.3/0.7x2 |
| Battery voltage/capacity | V/Ah | 12x4/300 |
| Charger input voltage | VAC | 100-240 |
| Charger output current | A | 36 |
| control voltage | VDC | 24 |
| Hydraulic tank capacity | L | 22 |
| total weight | lbs | 6490 |
