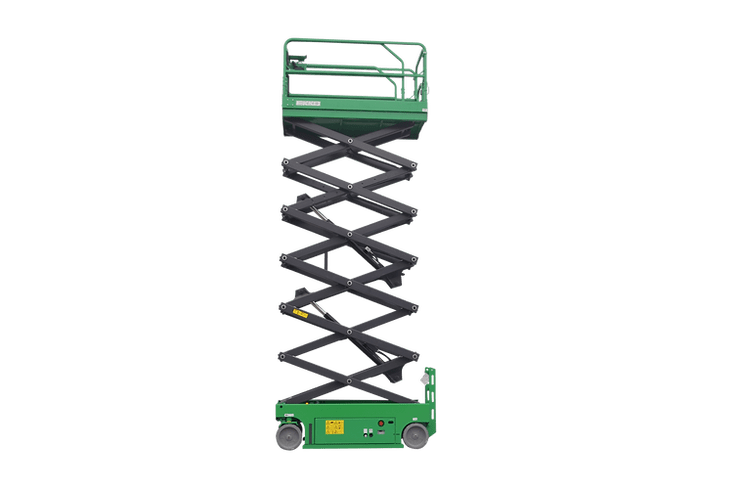

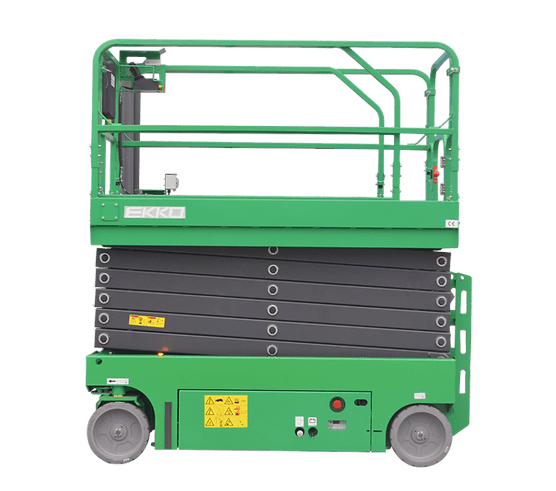

The EKKO ES100E-LI Scissor Lift is a compact and versatile solution for various indoor and outdoor maintenance and construction tasks. Here's what we know about the ES100E-LI.
Key Features
- Load Capacity 700 lb
- Raised Height 32.8' (394")
- Lowered Height 96.85''
- Size: Length 89" x Width 45"
- Steel construction
- 3-Years Limited Warranty

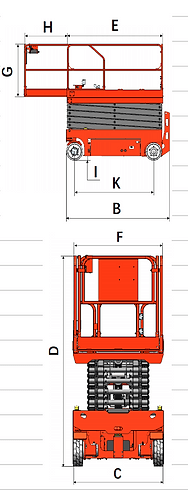

Specification

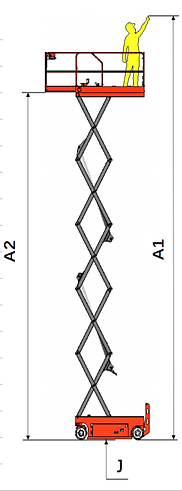

| A1 Max working height | Inch | 39' (472'') |
| A2 Max platform height | Inch | 32.8' (394'') |
| B Length | Inch | 94.5 |
| C Width | Inch | 45.27 |
| D Overall height (guardrail not folded) | Inch | 96" |
| Overall height (folding guardrail) | Inch | 72" |
| Platform size (length EX width FX height G) | Inch | 88.58x45.27 |
| G Guardrail height | Inch | 43.3 |
| H Platform extension size | Inch | 39.37 |
| I Ground clearance (closed state) | Inch | 3.74 |
| J Ground clearance (lifting state) | Inch | 0.78 |
| K Wheelbase | Inch | 72.83 |
| product performance | ||
| Maximum number of workers (indoor/outdoor) | 2 / 1 | |
| load rating | LBS | 700 |
| Extended platform load rating | LBS | 265 |
| Driving speed (folding state) | km/h | 0-3.2 |
| Driving speed (lifting condition) | km/h | 0~0.8 |
| Minimum Turning radius (inside) | Inch | 0 |
| Minimum turning radius (outside) | Inch | 86.61 |
| Rise/fall time | s | 52/48 |
| Maximum allowable tilting Angle (front/left/right) | ° | 3°/1.5° |
| Maximum allowable wind speed (indoor/outdoor) | m/s | 0/12.5 |
| Maximum allowable lateral force (indoor/outdoor) | N | 400/200 |
| Gradeability | % | 30 |
| control | proportional control | |
| actuator | Double front wheels | |
| braking | Double rear wheels | |
| Tyre specification/type | Inch | 15*5 |
| Product power | ||
| Lift/drive motor | kw | 3.3/0.7x2 |
| Battery voltage/capacity | V/Ah | 25.6V/230AH |
| Charger input voltage | VAC | 25.6V |
| Charger output current | A | 36A |
| control voltage | VDC | 24 |
| Hydraulic tank capacity | L | 22 |
| total weight | lbs | 6304 |
• Order Processing Time:
Standard Processing: 1 to 2 business days (orders after 6 PM processed next business day).
• Shipping Rates and Delivery:
Orders Over $200: Free shipping.
Orders Under $200: $15 flat shipping fee.
Shipping limited to the United States.
• Shipping Methods:
Freight carriers (18-wheeler trucks) used for most orders.
Freight items require curbside delivery appointment (phone number required at checkout).
• Order Confirmation and Tracking:
Confirmation email upon order placement.
Credit card charged upon shipping (back-ordered items may have pre-authorization).
Shipment notification with tracking number sent when order dispatched.
Find a lower price? Call (833) 696-8258 and we'll match it! (Some exclusions may apply. See our Price Match Guarantee Policy for more information)
Our return policy covers a 30-day period from the date of purchase. To be eligible, items must be unused, in their original packaging, and accompanied by proof of purchase. Defective products are eligible for free returns, with options for a refund or replacement. Customer remorse returns may incur return shipping fees and restocking fees. Refunds are processed within a specified timeframe, subject to restocking fees if applicable. Late or missing refunds should be addressed with your bank or credit card company first. Exchanges may be accepted for defective or damaged items. Shipping costs for returns are typically the responsibility of the customer, except in cases of damaged products. For further details or inquiries, please contact us via phone, email, or live chat.
Description
The EKKO ES100E-LI Scissor Lift is a compact and versatile solution for various indoor and outdoor maintenance and construction tasks. Here's what we know about the ES100E-LI.
Key Features
- Load Capacity 700 lb
- Raised Height 32.8' (394")
- Lowered Height 96.85''
- Size: Length 89" x Width 45"
- Steel construction
- 3-Years Limited Warranty
Specification
| A1 Max working height | Inch | 39' (472'') |
| A2 Max platform height | Inch | 32.8' (394'') |
| B Length | Inch | 94.5 |
| C Width | Inch | 45.27 |
| D Overall height (guardrail not folded) | Inch | 96" |
| Overall height (folding guardrail) | Inch | 72" |
| Platform size (length EX width FX height G) | Inch | 88.58x45.27 |
| G Guardrail height | Inch | 43.3 |
| H Platform extension size | Inch | 39.37 |
| I Ground clearance (closed state) | Inch | 3.74 |
| J Ground clearance (lifting state) | Inch | 0.78 |
| K Wheelbase | Inch | 72.83 |
| product performance | ||
| Maximum number of workers (indoor/outdoor) | 2 / 1 | |
| load rating | LBS | 700 |
| Extended platform load rating | LBS | 265 |
| Driving speed (folding state) | km/h | 0-3.2 |
| Driving speed (lifting condition) | km/h | 0~0.8 |
| Minimum Turning radius (inside) | Inch | 0 |
| Minimum turning radius (outside) | Inch | 86.61 |
| Rise/fall time | s | 52/48 |
| Maximum allowable tilting Angle (front/left/right) | ° | 3°/1.5° |
| Maximum allowable wind speed (indoor/outdoor) | m/s | 0/12.5 |
| Maximum allowable lateral force (indoor/outdoor) | N | 400/200 |
| Gradeability | % | 30 |
| control | proportional control | |
| actuator | Double front wheels | |
| braking | Double rear wheels | |
| Tyre specification/type | Inch | 15*5 |
| Product power | ||
| Lift/drive motor | kw | 3.3/0.7x2 |
| Battery voltage/capacity | V/Ah | 25.6V/230AH |
| Charger input voltage | VAC | 25.6V |
| Charger output current | A | 36A |
| control voltage | VDC | 24 |
| Hydraulic tank capacity | L | 22 |
| total weight | lbs | 6304 |
