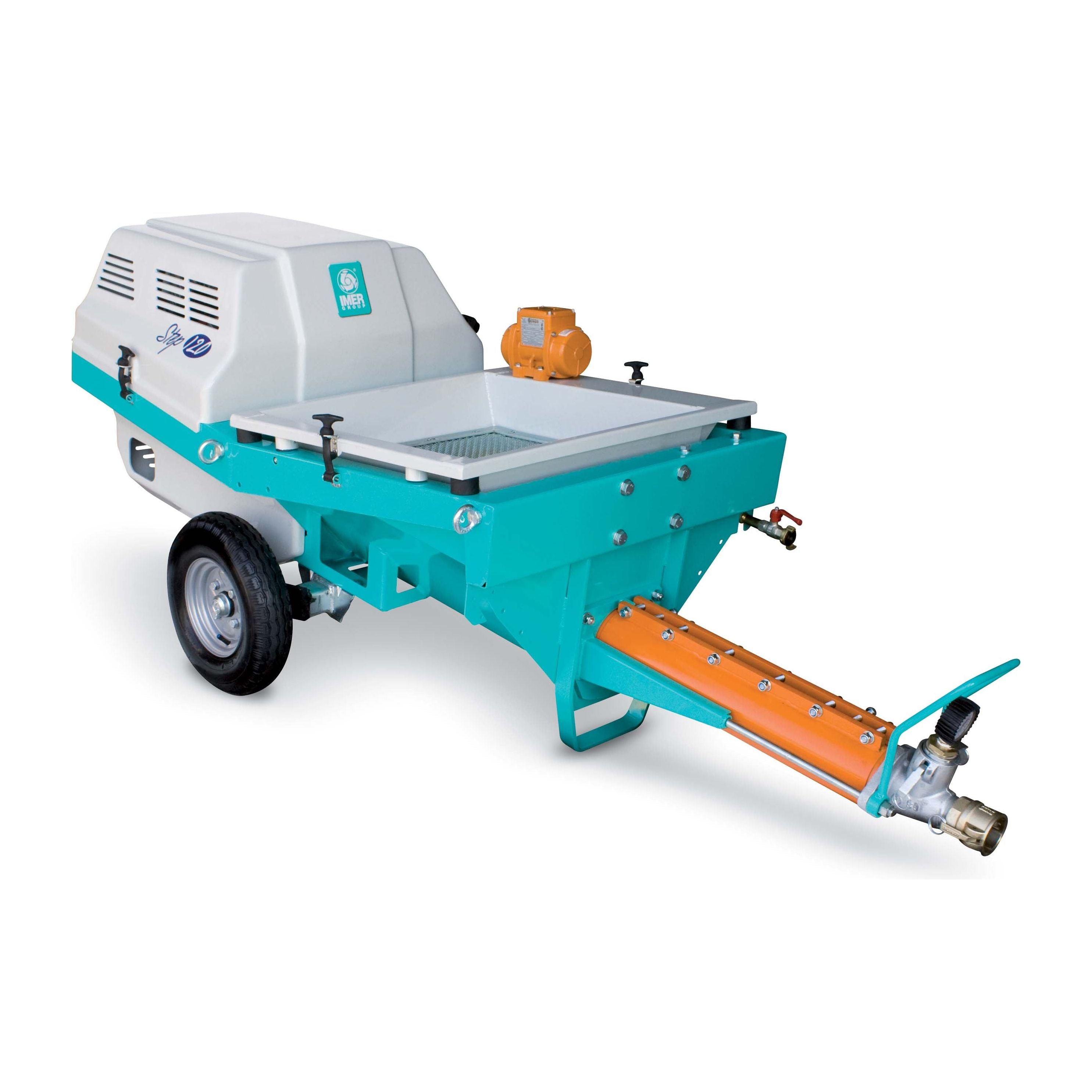

The IMER Step-Up 120A Towable Electric Pump is the ultimate high-flow material pump designed for pumping self-leveling underlayments and non-shrink grouts with ease. Capable of delivering 9.5 cubic yards per hour, this machine excels in performance, providing efficient and quiet operation in even the most confined job site environments. Whether you're working with mortars, stuccos, grouts, restoration mortars, fireproofing, or waterproofing materials, this pump is built to handle it all.
The Step-Up 120A is engineered to pump large quantities of materials quickly and consistently through its high-flow rotor/stator pumping system. Its reliable, 10 HP motor ensures continuous operation for demanding applications.
Key Features:
-
High Flow Performance: Delivers 9.5 cubic yards per hour, making it ideal for large-scale applications.
-
Efficient and Quiet Operation: Designed to perform quietly in restricted job site environments without compromising on efficiency.
-
Versatile Pumping System: Ideal for pumping or spraying mortars, grouts, stuccos, restoration mortars, underlayments, fireproofing, waterproofing, and more.
-
Long Pumping Range: Can pump materials up to 200 feet horizontally and 100 feet vertically, allowing for maximum flexibility on the job site.
-
Durable Design: Built to withstand heavy-duty use, providing reliable performance for years to come.
Specifications:
-
Supply: 220V/60Hz, Three-Phase
-
Motor Power Rate: 10 HP
-
Max Grain Size: 3/8 in
-
Flow Rate: 9.5 cu yds / hr
-
Max Pumping Distance: 200 ft
-
Max Pumping Height: 100 ft
-
Hopper Capacity: 4.25 cu ft
-
Dimensions: 91” L x 32” W x 38” H
-
Weight: 616 lbs
-
Sound Pressure Level: < 79 dB (A)
Standard Equipment:
-
Three-Phase 220V/60Hz Motor: 10 HP motor designed for 100% duty cycle
-
Electric Control Panel
-
Built-in Low Voltage Electric Remote Control: 120" cable for easy operation
-
Power Supply Cord: 133" power supply cord
-
Vibrating Grid
-
Material Hose: 33" of 50mm hose (2 in)
-
Accessory Box
Optional Equipment:
-
Non-Towing Wheel Kit (Part # 1107633)
-
33" of 35mm Hose (Part # 1107528)
-
33" of 50mm Hose (Part # 1107533)
-
Grate for Premixed Material (Part # 1107569)
-
50mm to 35mm Material Hose Reducer (Part # 1106178)
-
Shotcrete Gun (Part # 1106250)
-
Pintle Tow Ring (Part # 1107161)
-
2L6 Rotor/Stator Kit (Part # 1107088)
-
IM25L Rotor/Stator Kit (Part # 1107149)
Document
Description
The IMER Step-Up 120A Towable Electric Pump is the ultimate high-flow material pump designed for pumping self-leveling underlayments and non-shrink grouts with ease. Capable of delivering 9.5 cubic yards per hour, this machine excels in performance, providing efficient and quiet operation in even the most confined job site environments. Whether you're working with mortars, stuccos, grouts, restoration mortars, fireproofing, or waterproofing materials, this pump is built to handle it all.
The Step-Up 120A is engineered to pump large quantities of materials quickly and consistently through its high-flow rotor/stator pumping system. Its reliable, 10 HP motor ensures continuous operation for demanding applications.
Key Features:
-
High Flow Performance: Delivers 9.5 cubic yards per hour, making it ideal for large-scale applications.
-
Efficient and Quiet Operation: Designed to perform quietly in restricted job site environments without compromising on efficiency.
-
Versatile Pumping System: Ideal for pumping or spraying mortars, grouts, stuccos, restoration mortars, underlayments, fireproofing, waterproofing, and more.
-
Long Pumping Range: Can pump materials up to 200 feet horizontally and 100 feet vertically, allowing for maximum flexibility on the job site.
-
Durable Design: Built to withstand heavy-duty use, providing reliable performance for years to come.
Specifications:
-
Supply: 220V/60Hz, Three-Phase
-
Motor Power Rate: 10 HP
-
Max Grain Size: 3/8 in
-
Flow Rate: 9.5 cu yds / hr
-
Max Pumping Distance: 200 ft
-
Max Pumping Height: 100 ft
-
Hopper Capacity: 4.25 cu ft
-
Dimensions: 91” L x 32” W x 38” H
-
Weight: 616 lbs
-
Sound Pressure Level: < 79 dB (A)
Standard Equipment:
-
Three-Phase 220V/60Hz Motor: 10 HP motor designed for 100% duty cycle
-
Electric Control Panel
-
Built-in Low Voltage Electric Remote Control: 120" cable for easy operation
-
Power Supply Cord: 133" power supply cord
-
Vibrating Grid
-
Material Hose: 33" of 50mm hose (2 in)
-
Accessory Box
Optional Equipment:
-
Non-Towing Wheel Kit (Part # 1107633)
-
33" of 35mm Hose (Part # 1107528)
-
33" of 50mm Hose (Part # 1107533)
-
Grate for Premixed Material (Part # 1107569)
-
50mm to 35mm Material Hose Reducer (Part # 1106178)
-
Shotcrete Gun (Part # 1106250)
-
Pintle Tow Ring (Part # 1107161)
-
2L6 Rotor/Stator Kit (Part # 1107088)
-
IM25L Rotor/Stator Kit (Part # 1107149)
