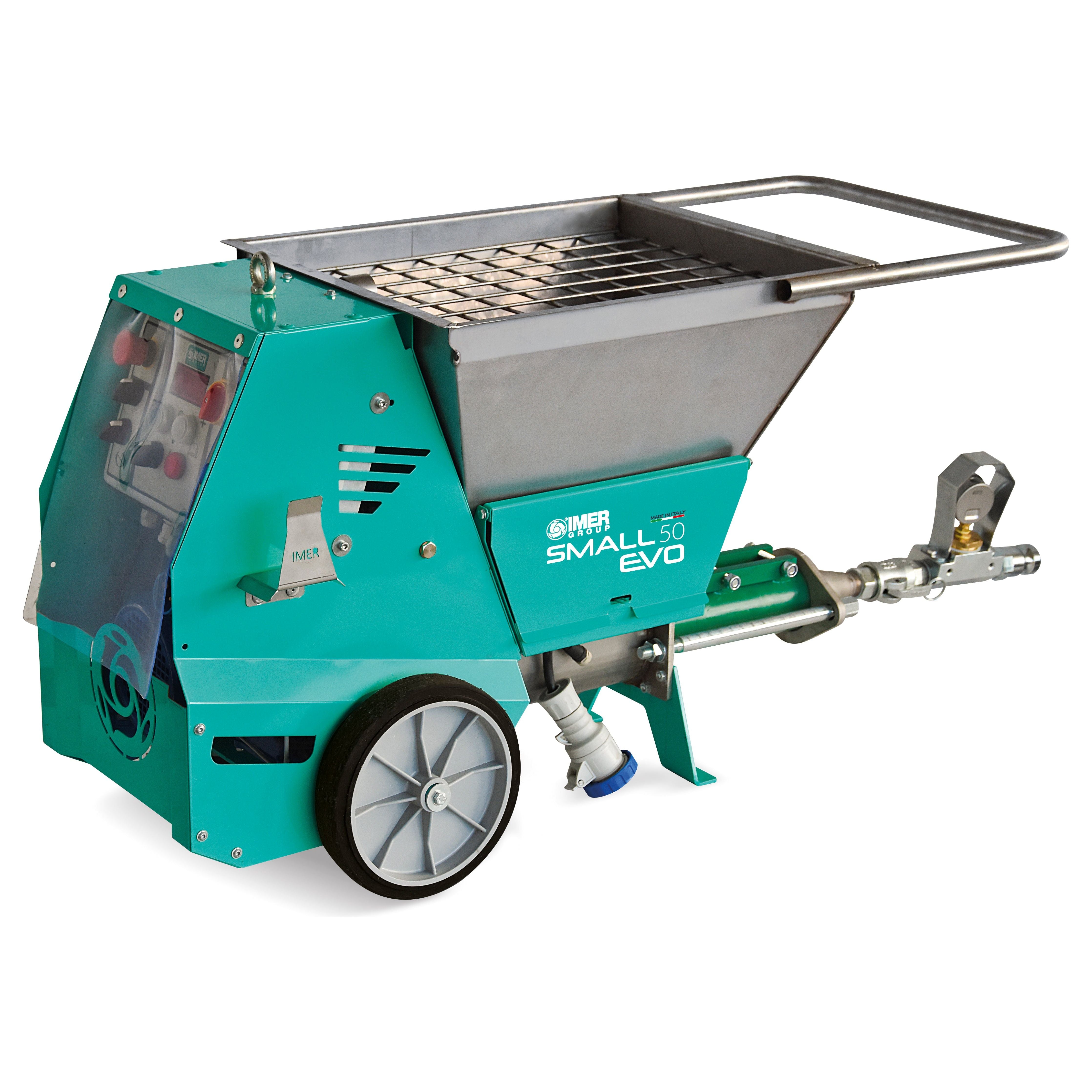

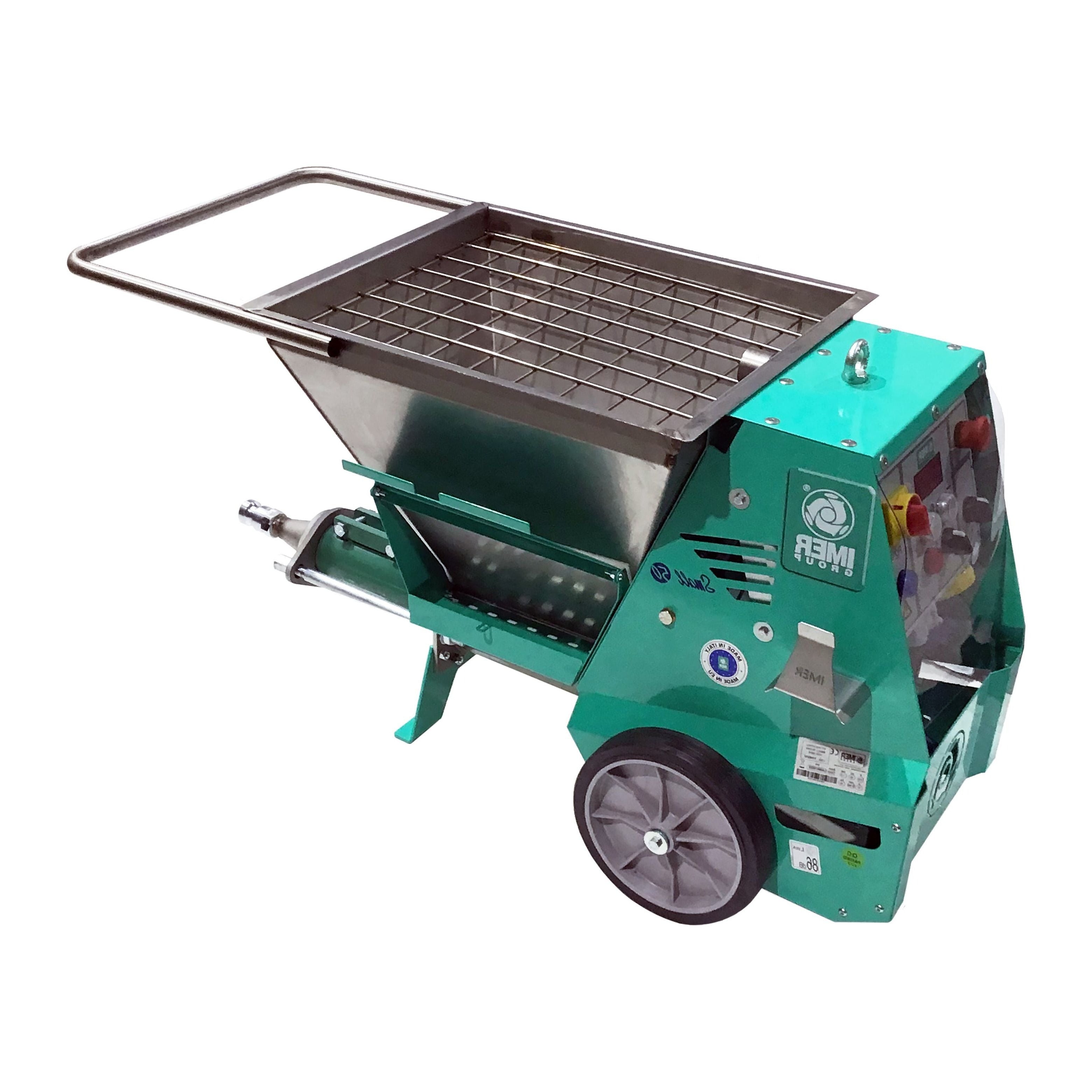

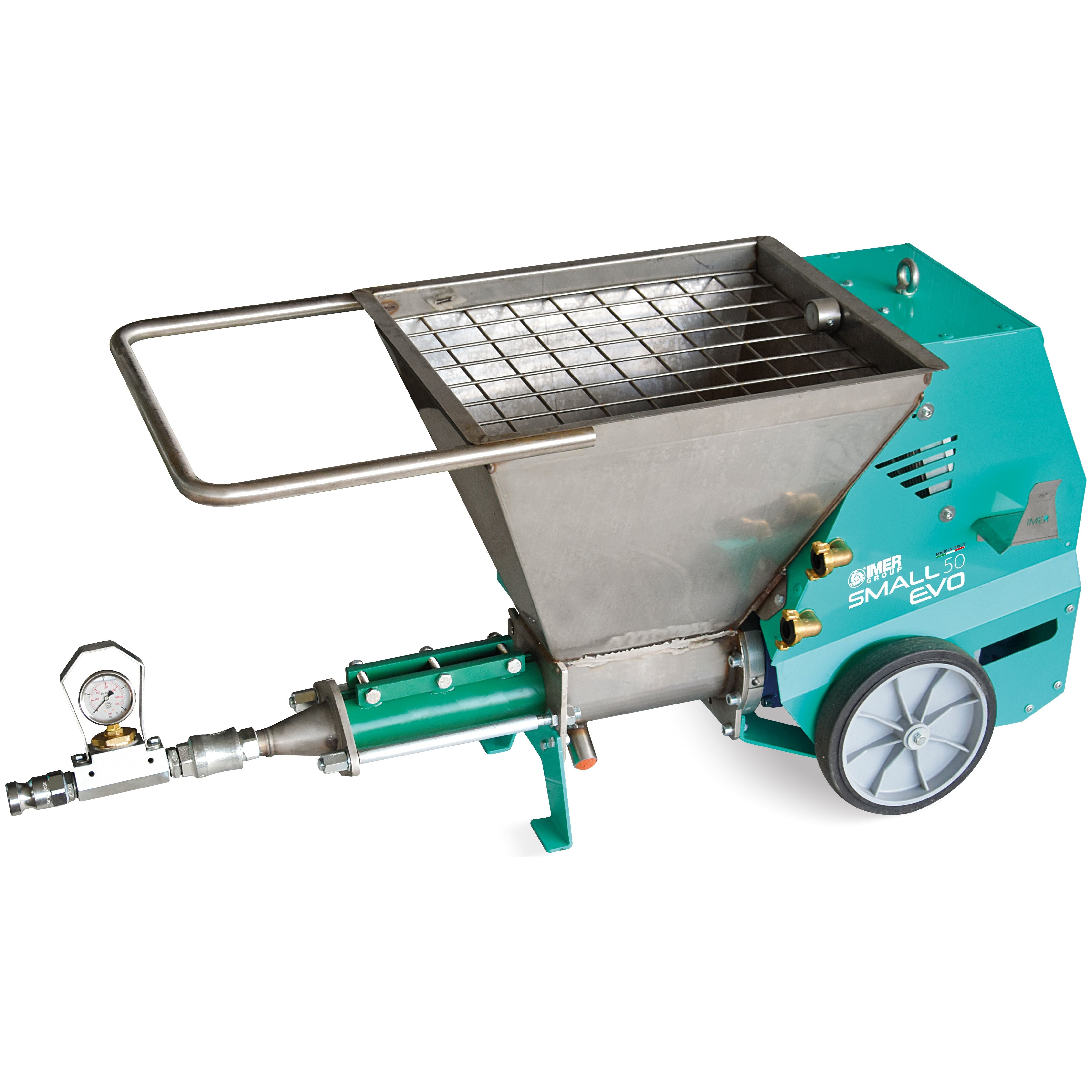

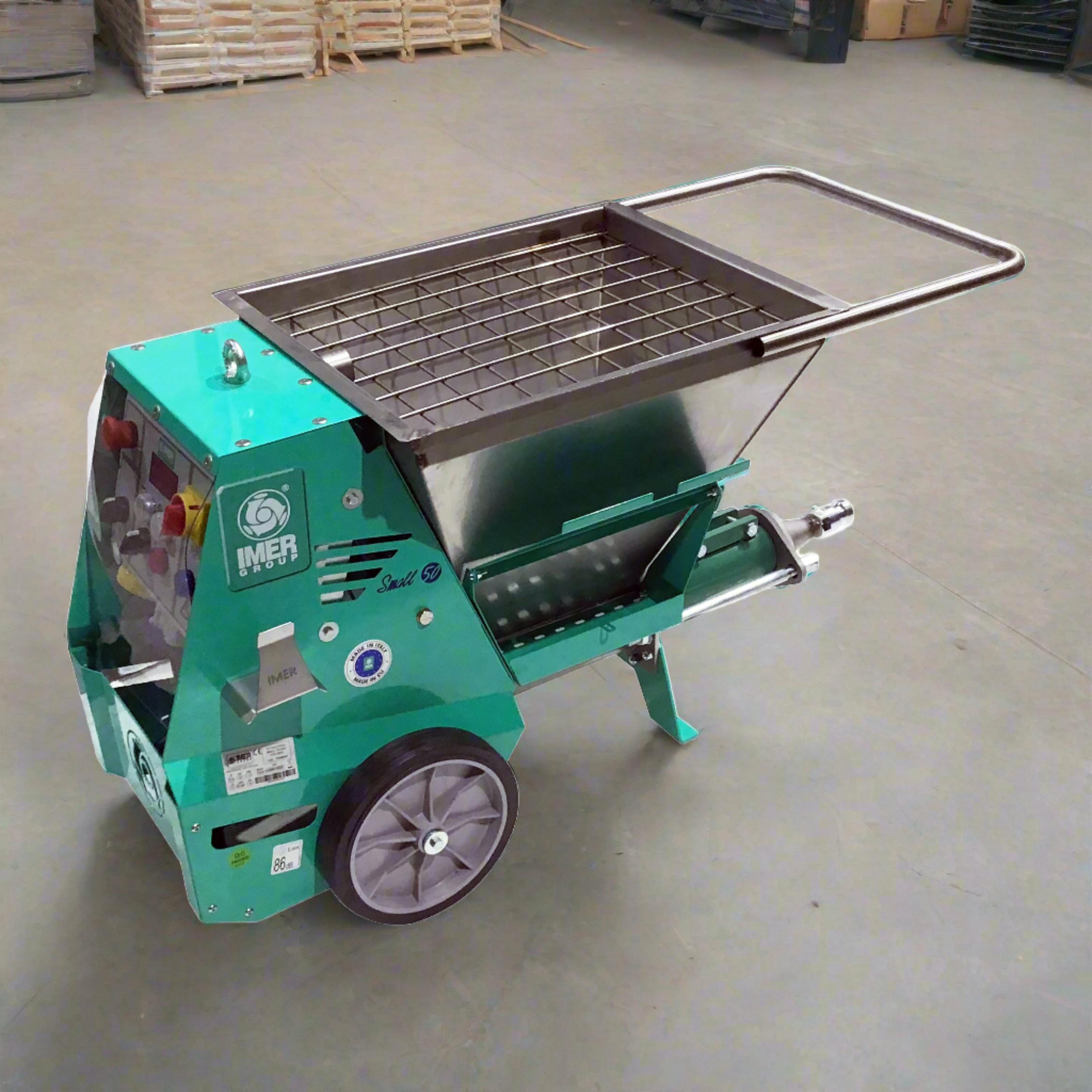

IMER Pump & Spraying Machine | 1.75 HP | Mighty Small 50 EVO 1106344

The Mighty Small 50 EVO is your go-to solution for tough, high-performance pumping and spraying tasks. Designed for versatility, this compact machine can be configured with a variety of accessories to handle different applications—whether it’s pumping grout into forms, spraying fireproofing on high-rise buildings, or filling blocks with grout. With its lightweight, portable design and powerful 1.75 HP motor, this machine is a must-have for construction, repairs, and specialized projects.

Specifications:

• Motor: 110V/60Hz

• Horsepower: 1.75 HP

• Material Flow Rate: 1.7 – 30 cu ft/hr

• Max Aggregate Size: 1/4"

• Max Pumping Distance (w/grout): 100 ft

• Max Pumping Distance (w/SLU): 200 ft

• Hopper Capacity: 1.75 cu ft

• Loading Height: 25-1/2"

• Weight: 90 lbs

• Sound Pressure Level: <74 dB(A)

• Dimensions: 20.5" W x 44" L x 25.5" H

Key Features:

• Portable Powerhouse: The 1.75 HP motor is designed for continuous use, offering 100% duty cycle performance, even on long job sites.

• Versatile Material Handling: Whether you need to pump grout, stucco, fireproofing material, or other mixtures, the Mighty Small 50 EVO excels with a wide material flow rate of 1.7 to 30 cu ft/hr.

• Innovative Inverter Technology: IMER’s exclusive inverter technology ensures smooth operation between 85 to 135 volts, meaning you can run it on a 6000-watt generator—ideal for jobs with limited power access.

• Compact & Easy to Use: At just 90 lbs and with a convenient remote control, the Mighty Small 50 EVO is built to be easily maneuvered across job sites, making it a perfect fit for tight spaces.

• Durable Stainless Steel Hopper: The robust hopper ensures durability and ease of material loading, handling all your pumping needs with efficiency.

• Low Noise Operation: With a sound pressure level below 74 dB(A), this machine ensures you can work without disturbing the peace.

Standard Equipment:

• 1.75 HP, 110V Motor: Ensures 100% duty cycle for uninterrupted performance.

• Exclusive Inverter Technology: Allows the Mighty Small 50 to run on a generator with 6000 watts capacity, supporting a wide voltage range (85 to 135 volts).

• Stainless Steel Hopper: For durability and easy loading.

• Rotor and Stator D8 1.5: Built to last and handle demanding applications.

• Inverter Driven Control Panel: For precise control during operation.

• Electric Remote Control Cable: For convenient operation from a distance.

• Pressure Gauge: Keeps track of material pressure for accurate application.

• Accessory Tool Box: Provides organized storage for all your accessories.

Optional Equipment:

• Dual Diaphragm Compressor (Part # 1107546)

• Mortar, Stucco, and Fireproofing Gun Kit (Part # 1107005)

• Vibrating Hopper for Tuck Pointing (Part # 1107015)

• Vibrating Screen for Bulk Sand Mixes (Part # 1107548)

• Pipe Hook for Block, Form, and Door Jamb Filling (Part # 1107570)

• Paint and Fine Coatings Gun Kit (Part # 1107010)

• Grout Injection Kit (Part # 1107006)

• Tuck Pointing Gun Kit (Part # 1107504)

• 25mm (1”) Material Hose (Part # 1107525)

• 5" Overhead Wand (Part # 1107549)

Why Choose the Mighty Small 50 EVO?

• Multi-Purpose: Whether you're pumping grout, stucco, or fireproofing, this machine handles a variety of materials and is perfect for both small and large-scale projects.

• Easy to Transport & Operate: Despite its powerful capabilities, the Mighty Small 50 EVO is designed to be easy to carry and use, with a lightweight build and intuitive remote control operation.

• Customizable: With a wide range of optional accessories, you can configure the Mighty Small 50 EVO to meet the specific needs of your project, from grouting to painting.

• Dependable for Tough Jobs: Built with high-quality materials and the latest inverter technology, the Mighty Small 50 EVO delivers dependable, continuous performance, even in demanding conditions.
