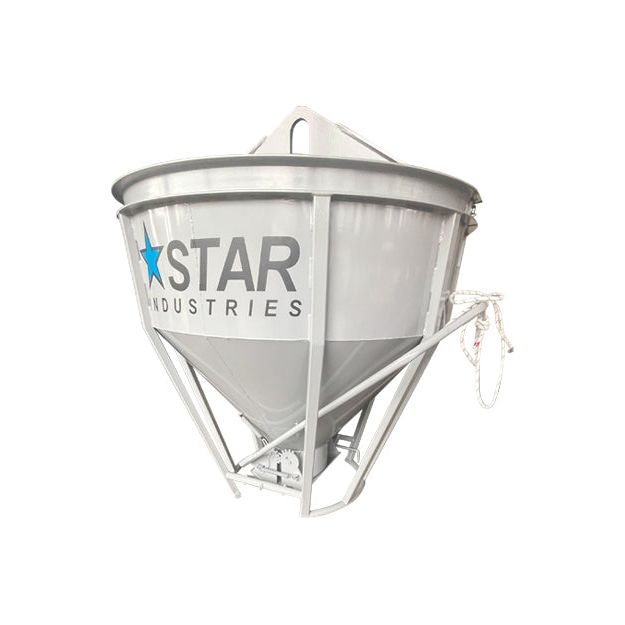

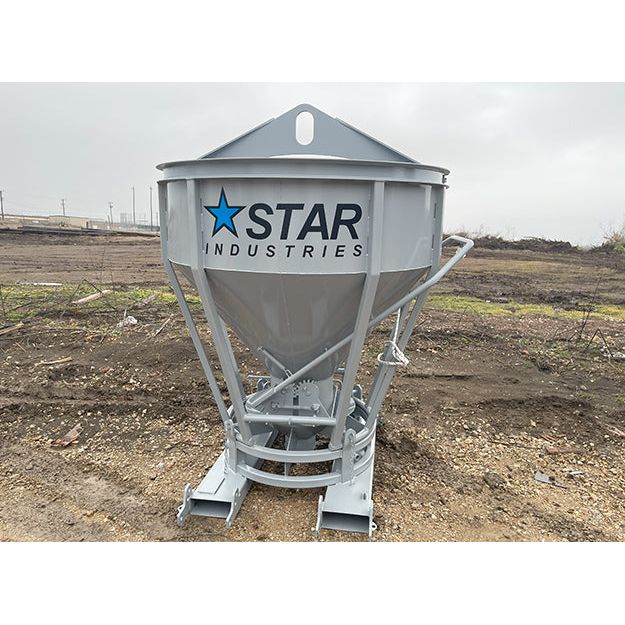

Star Industries Concrete Hopper with Side Chute - Model 1520
1.3 cu yd Capacity | Compact & Efficient Concrete Placement System
Optimized for Fast, Precise Concrete Work
TheStar Industries Model 1520 Concrete Hoppercombines1.3 cubic yards of capacitywith acompact 51" height, making it ideal forsmall to mid-sized concrete jobs. Designed forforklift or crane operation, this hopper delivers3X the productivityof wheelbarrows while costingfar lessthan concrete pump systems.
Key Features & Benefits
Smart Design for Efficiency
-
Dual discharge options: Center gravity flow + detachable side chute
-
Low 51" profilefor easy filling from mixer trucks
-
Spring-loaded gatewith single-lever control
Built for Durability & Compliance
-
ASME-certified construction
-
Reinforced 30" base ringfor stability
-
331 lb lightweightyet rugged steel build
Versatile Operation
5,732 lb concrete capacity(at 145 lb/cf)
Forklift or crane compatible(adapter optional)
1-year warrantyfor peace of mind
Meets OSHA/ANSI safety standards
Technical Specifications
| Model | 1520 |
|---|---|
| Capacity | 1.3 cu yd |
| Max Load Weight | 5,732 lbs |
| Dimensions | 51"H × 49"W |
| Base Ring | 30" diameter |
| Empty Weight | 331 lbs |
| Discharge Options | Center + side chute |
Equipment Requirements
š Minimum Capacity Needs:
-
6,063 lb combined capacityrequired (hopper + concrete)
-
Forklift: 42"+ forks recommended
-
Crane: Verify lift chart at required extension
Why Choose This Over Alternatives?
vs. Wheelbarrows
-
Moves 8X more concrete per trip
-
Eliminates 75% of manual labor
-
Reduces spillage & waste
vs. Concrete Pumps
-
No expensive rentals
-
Works in tight spaces
-
Faster setup/cleanup
Best Applications
-
Residential foundations
-
Small slab pours
-
Retaining wall construction
-
Precast element production
Included Components
-
Detachable side chute
-
ASME compliance tags
-
User/maintenance manual
-
Spring-loaded gate system
Operation Tips
-
Pre-wet interiorto prevent sticking
-
Center loadsfor balance
-
Rinse immediatelyafter use
-
Lubricate gate mechanismmonthly
Description
Star Industries Concrete Hopper with Side Chute - Model 1520
1.3 cu yd Capacity | Compact & Efficient Concrete Placement System
Optimized for Fast, Precise Concrete Work
TheStar Industries Model 1520 Concrete Hoppercombines1.3 cubic yards of capacitywith acompact 51" height, making it ideal forsmall to mid-sized concrete jobs. Designed forforklift or crane operation, this hopper delivers3X the productivityof wheelbarrows while costingfar lessthan concrete pump systems.
Key Features & Benefits
Smart Design for Efficiency
-
Dual discharge options: Center gravity flow + detachable side chute
-
Low 51" profilefor easy filling from mixer trucks
-
Spring-loaded gatewith single-lever control
Built for Durability & Compliance
-
ASME-certified construction
-
Reinforced 30" base ringfor stability
-
331 lb lightweightyet rugged steel build
Versatile Operation
5,732 lb concrete capacity(at 145 lb/cf)
Forklift or crane compatible(adapter optional)
1-year warrantyfor peace of mind
Meets OSHA/ANSI safety standards
Technical Specifications
| Model | 1520 |
|---|---|
| Capacity | 1.3 cu yd |
| Max Load Weight | 5,732 lbs |
| Dimensions | 51"H × 49"W |
| Base Ring | 30" diameter |
| Empty Weight | 331 lbs |
| Discharge Options | Center + side chute |
Equipment Requirements
š Minimum Capacity Needs:
-
6,063 lb combined capacityrequired (hopper + concrete)
-
Forklift: 42"+ forks recommended
-
Crane: Verify lift chart at required extension
Why Choose This Over Alternatives?
vs. Wheelbarrows
-
Moves 8X more concrete per trip
-
Eliminates 75% of manual labor
-
Reduces spillage & waste
vs. Concrete Pumps
-
No expensive rentals
-
Works in tight spaces
-
Faster setup/cleanup
Best Applications
-
Residential foundations
-
Small slab pours
-
Retaining wall construction
-
Precast element production
Included Components
-
Detachable side chute
-
ASME compliance tags
-
User/maintenance manual
-
Spring-loaded gate system
Operation Tips
-
Pre-wet interiorto prevent sticking
-
Center loadsfor balance
-
Rinse immediatelyafter use
-
Lubricate gate mechanismmonthly
