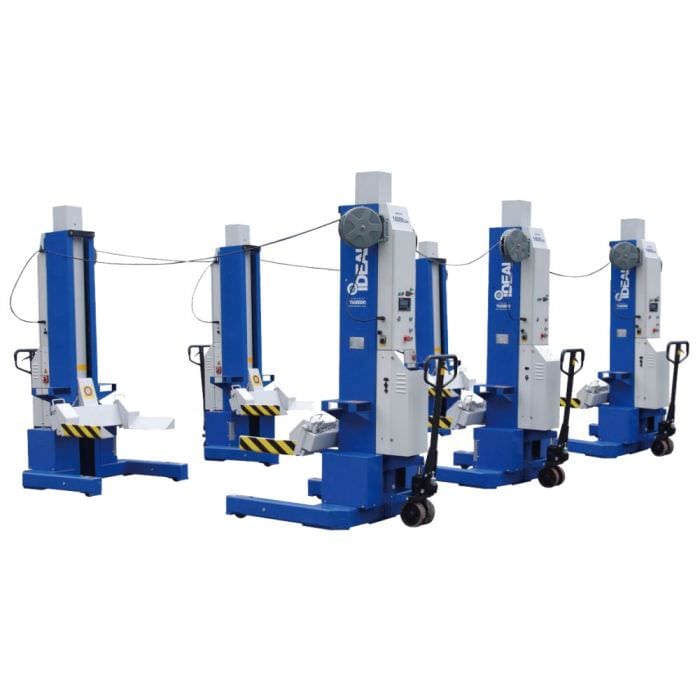

iDEAL MSC-18K-X-6108 — ALI Certified Mobile Column Set with Massive 108,000 lbs Lifting Capacity
When your heaviest jobs call for serious lifting power, the iDEAL MSC-18K-X-6108 answers with six mobile columns delivering a combined 108,000 lbs capacity. Designed to lift fire trucks, school buses, and other large commercial vehicles safely and efficiently by the wheels, this ALI-certified system transforms any flat bay into a powerful lift zone in minutes.
Technicians love the user-friendly control panel on each column, while optional accessories add the flexibility to handle passenger vehicles, light trucks, and even wheels-free lifting. When the job’s done, roll it out of the way with its compact footprint — maximizing your shop’s valuable space without breaking a sweat.
Features
-
ALI Certified — guaranteed safety and reliability for heavy-duty lifting
-
108,000 lbs Total Capacity across six columns — lifting your biggest vehicles with ease
-
24VDC Battery Operation with Onboard Charger — cordless power with no downtime
-
Communication Cable with Retractable Reels — tidy cables, hassle-free movement
-
U-Shape Wiring Configuration — quick vehicle entry and exit, no traffic jams here
-
Operate Conveniently from Any Column — total control at your fingertips
-
Independent Mechanical Locking System — locks each column safely in place
-
PLC & Optical Encoder Synchronization — precise, continuous coordination across columns
-
Easy Mobility — pallet jack style base with poly caster wheels for smooth positioning
-
Adjustable Lifting Forks — fits the widest range of wheel diameters, no fuss
-
Emergency Shutoff Switch on Each Column — safety first, always
-
Master Control Panel — individual or paired synchronized operation made simple
-
LCD Screen with Keypad — easy-to-read settings for lifting height and operation
-
Compact Storage — rolls out of the way to maximize your work area
-
LED Light with Magnetic Base — new addition to brighten your workspace
-
Optional ALI Certified Accessories — expand your lift capabilities as needed
Specifications
| Specification | MSC-18K-X-236 (2 Columns) | MSC-18K-X-472 (4 Columns) | MSC-18K-X-6108 (6 Columns) |
|---|---|---|---|
| Capacity | 36,000 lbs | 72,000 lbs | 108,000 lbs |
| AC Power (Input, Per Column) | 100-140VAC, 60Hz, 1 PH | 100-140VAC, 60Hz, 1 PH | 100-140VAC, 60Hz, 1 PH |
| DC Power (Output, Per Column) | 24VDC | 24VDC | 24VDC |
| Lifting Height | 67.1" | 67.1" | 67.1" |
| Column Heights Min/Max | Min 88.6" / Max 155.5" | Min 88.6" / Max 155.5" | Min 88.6" / Max 155.5" |
| Overall Width | 44.1" | 44.1" | 44.1" |
| Fork Adjustable Range | 12.6" – 22" | 12.6" – 22" | 12.6" – 22" |
| Fork Length | 17.9" | 17.9" | 17.9" |
| Fork to Column Clearance | 10" | 10" | 10" |
| Rise Time | 100 seconds | 100 seconds | 100 seconds |
| Descent Time | 60 seconds | 60 seconds | 60 seconds |
| Max Distance Between Columns | 32' 8" | 32' 8" | 32' 8" |
| Minimum Concrete Surface | 3,000 PSI | 3,000 PSI | 3,000 PSI |
| Noise Level | 70 dB(A) | 70 dB(A) | 70 dB(A) |
| Set-Up / Operation | Indoors | Indoors | Indoors |
| Battery Type (Not Included) | 12VDC Sealed Deep Cycle Battery (BCI Group 31, AH-105) | 12VDC Sealed Deep Cycle Battery (BCI Group 31, AH-105) | 12VDC Sealed Deep Cycle Battery (BCI Group 31, AH-105) |
| Ship Weight (Per Column) | 1,584 lbs | 1,584 lbs | 1,584 lbs |
