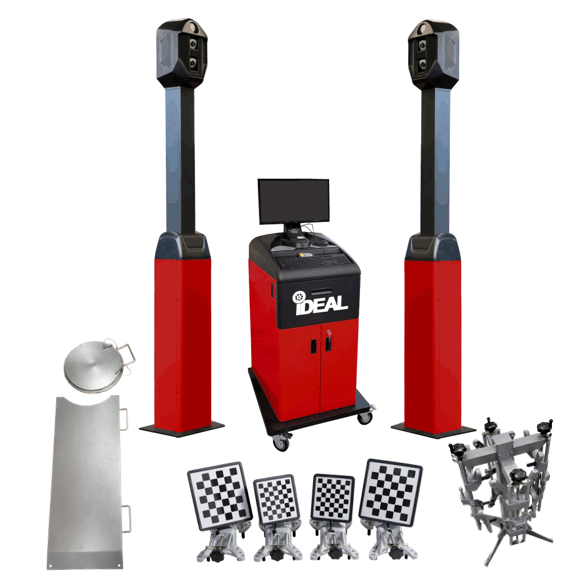

iDEAL 3D HD Multi-Axle Imaging Wheel Aligner — Heavy-Duty Precision Without the Lift
Tired of hoisting heavy trucks and trailers just to get an alignment? The iDEAL 3D HD Multi-Axle Imaging Wheel Aligner (IWA-60-8500-HD-K) is a game-changer in heavy-duty wheel alignment. This advanced, economical system quickly and accurately aligns multi-axle vehicles like trucks, semi-trailers, and buses — all without the need for a vehicle lift.

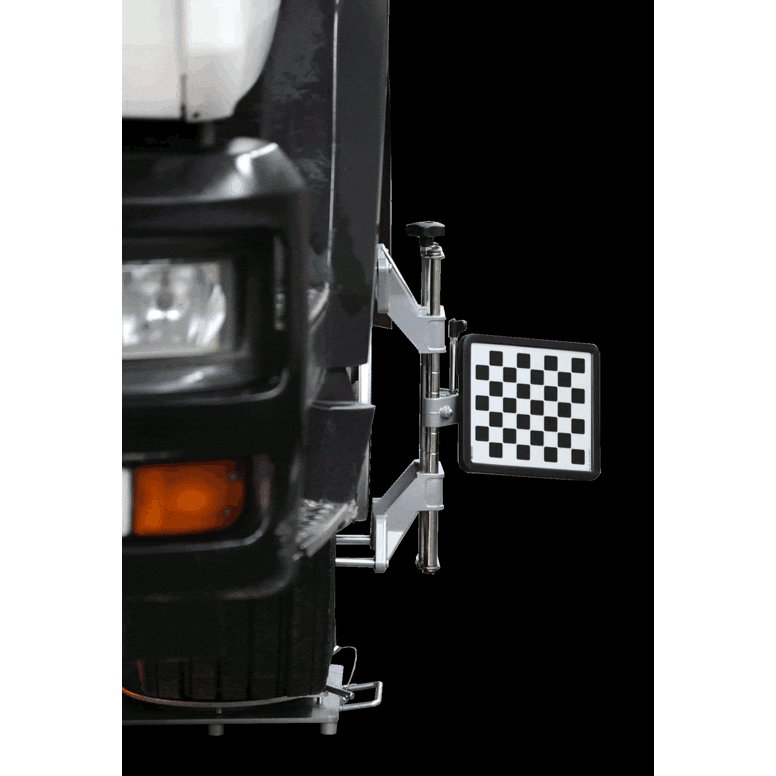

Using four high-definition industrial cameras, this system measures up to four axles at once, with the power to handle even more. Its Wide Scope technology covers an extensive range of lengths and wheelbases, delivering pinpoint accuracy of 0.01 degrees and real-time measurements to speed up your workflow. Lightweight, modern targets fit most tire rims and snap on effortlessly — saving your techs precious time.

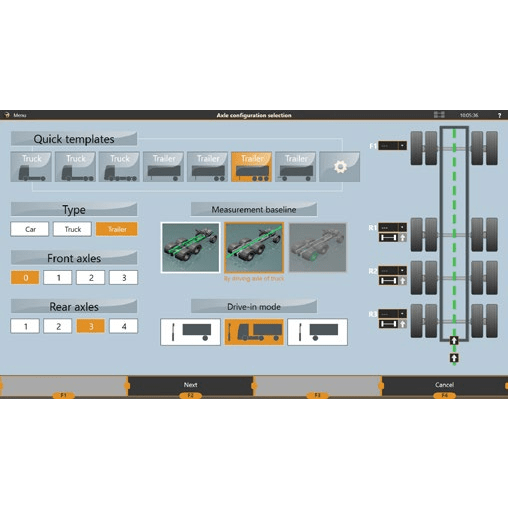

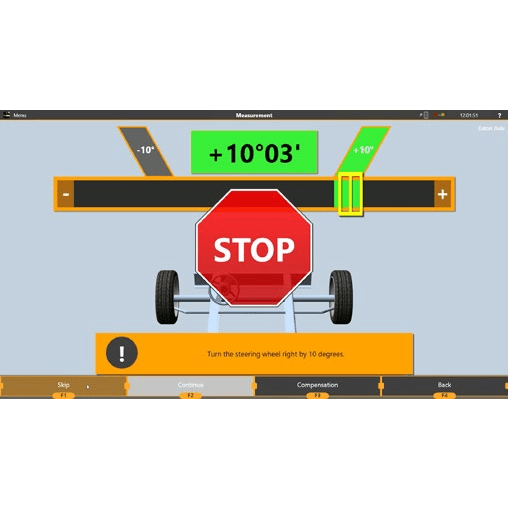

Built with specialized software tailored for commercial trucks, including shim assistance for rear axle thrust settings, this aligner is as smart as it is powerful. The user-friendly interface features high-quality LCD graphics, step-by-step diagrams, and an integrated help system, making precision alignment straightforward. Plus, full U.S. support ensures you’re never left hanging.
Features
-

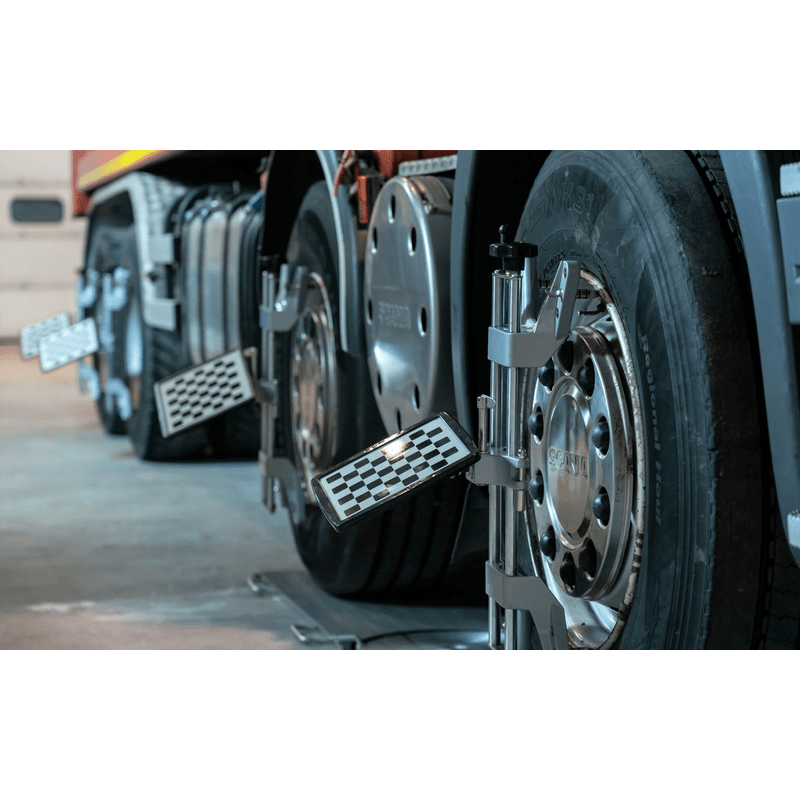

Multi-Axle Floor Alignment System — No Vehicle Lift Needed! Align trucks, trailers, and buses on the floor, saving time and hassle.
-
Designed for Long Vehicles & Trailers — Reads multiple axles simultaneously, up to eight wheels.
-

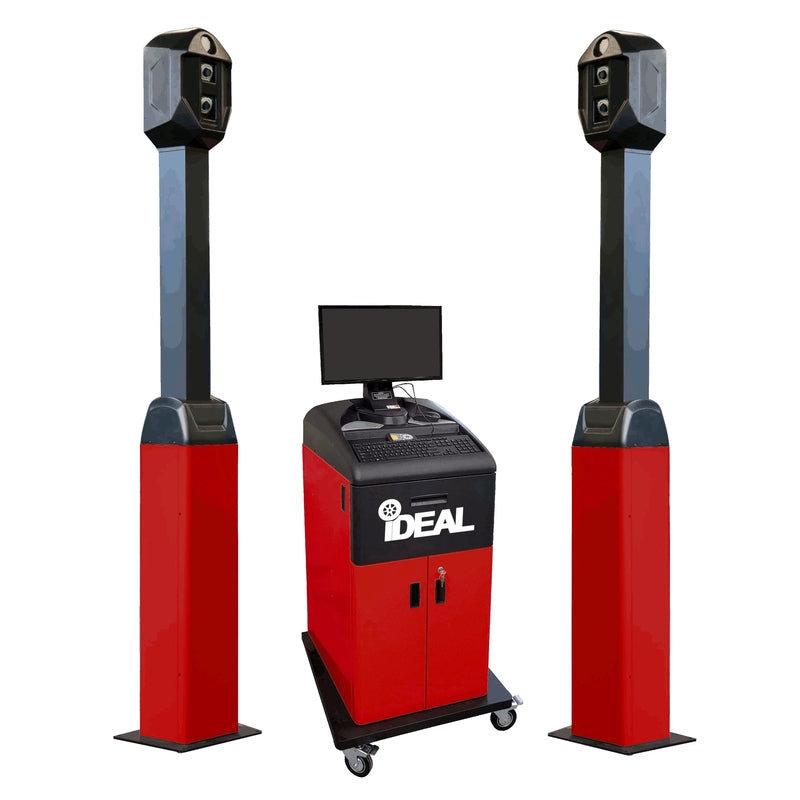

High-Resolution 3D Tower Cameras — Four HD cameras capture precise data with a maximum viewing range of 50 feet.
-
Integrated Quick Reference Vehicle Database — Streamline commercial vehicle alignments with ready access to specs.
-

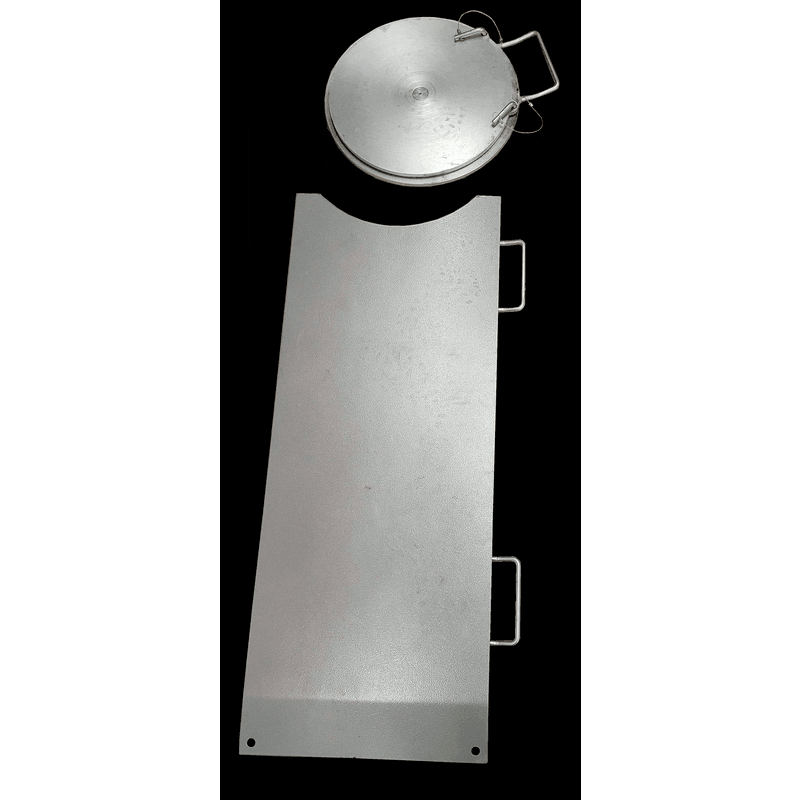

Includes HD Turntable & Drive-On Floor Ramp Sets — Makes front-end alignments quick and simple.
-
Dynamic LED Tower Guide — Changes shape to intuitively guide your technician.
-
Mobile Cabinet Setup — Place it front or side-centered for flexible drive-thru or dead-end configurations.
-
Wireless Remote Control — Perfect when you can’t reach the cabinet or keyboard.
-

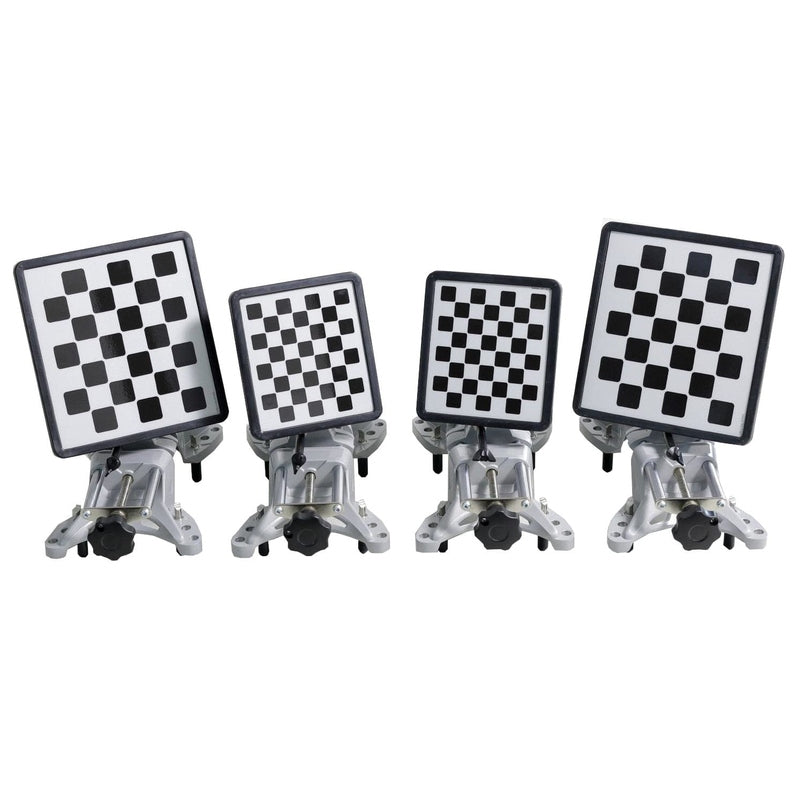

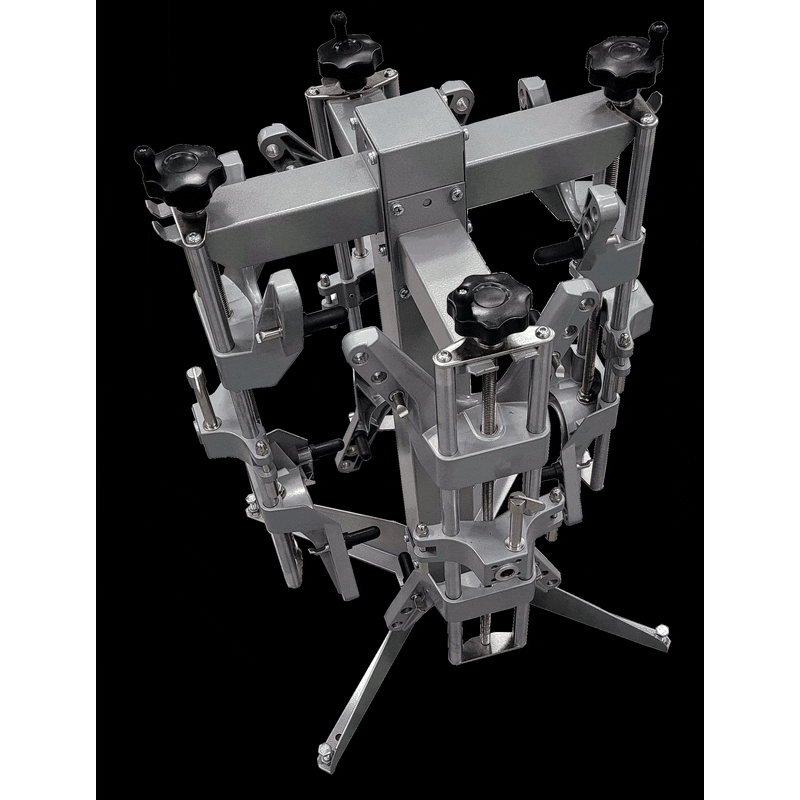

Comprehensive Hardware Package — Eight lightweight targets, adjustable wheel clamps (fits 15"–27" rims), steering wheel holder, brake depressor, wheel chocks, and more.
-

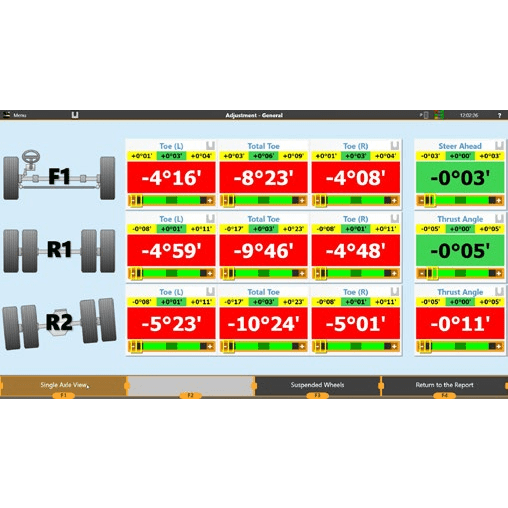

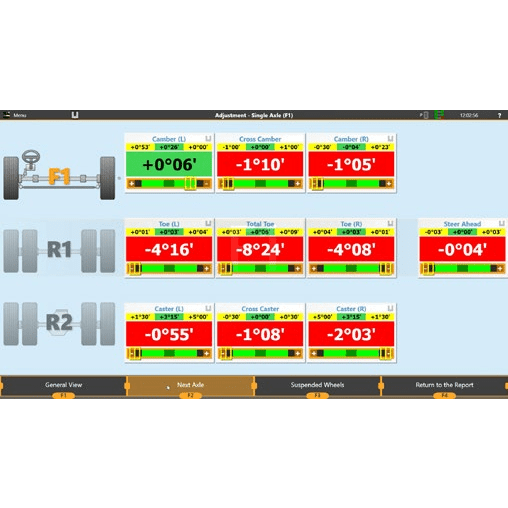

Live Reading Screens & Reporting — View real-time front and rear axle readings, recall past jobs, and print customized reports.
-
Customer Database & Optional Yearly Updates — Keep your vehicle data fresh and your shop running efficiently.
-
Complete Computer System Included — Comes with computer, monitor, keyboard, mouse, and color printer — plug and play.
Specifications
| Specification | Details |
|---|---|
| Model | IWA-60-8500-HD-K |
| Aligner Type | Heavy Duty 3D Multi-Axle Imaging |
| Operator System | Windows |
| Software | Techno Vector 7 |
| Accuracy | 0.01 Degrees |
| Certification | CE |
| Targets Included | 8 Standard |
| Cameras | 4 |
| Lift Compatible | No |
| Wheel Clamp Size Range | 15" - 27" |
| Toe Adjustment | Yes |
| Lifted Runout Compensation | Yes |
| Live Caster | Yes |
| Runout Compensation | Yes |
| Wheel Alignment Mode | Variable 2-8 Wheels |
| Database Update | Yes |
| Customer Manager | Yes |
| Max Track Width | Up to 13 feet |
| Max Wheelbase | Up to 50 feet |
| Power | 120V, 15 Amp, 1PH, 60HZ |
| Shipping Weight | 1,285 lbs (3 pcs) |
Manual
iDEAL 3D HD Multi-Axle Imaging Wheel Alignment System Manual
